3.6 – Connecting MyChron5 660 to sensors and LCU-One CAN expansion
To connect MyChron5 660 to the temperature sensors included in the kit:
• connect the 5 pins Binder 712 male connector of the dragster split cable to the 7 pins Binder 712 female connector placed
top rear of the logger.
• connect exhaust gas temperature thermocouple mignon male connector to one of the two mignon female connector of the
dragster split cable.
• connect cylinder head temperature thermocouple mignon male connector to the other mignon female connector of the
temperature split cable.

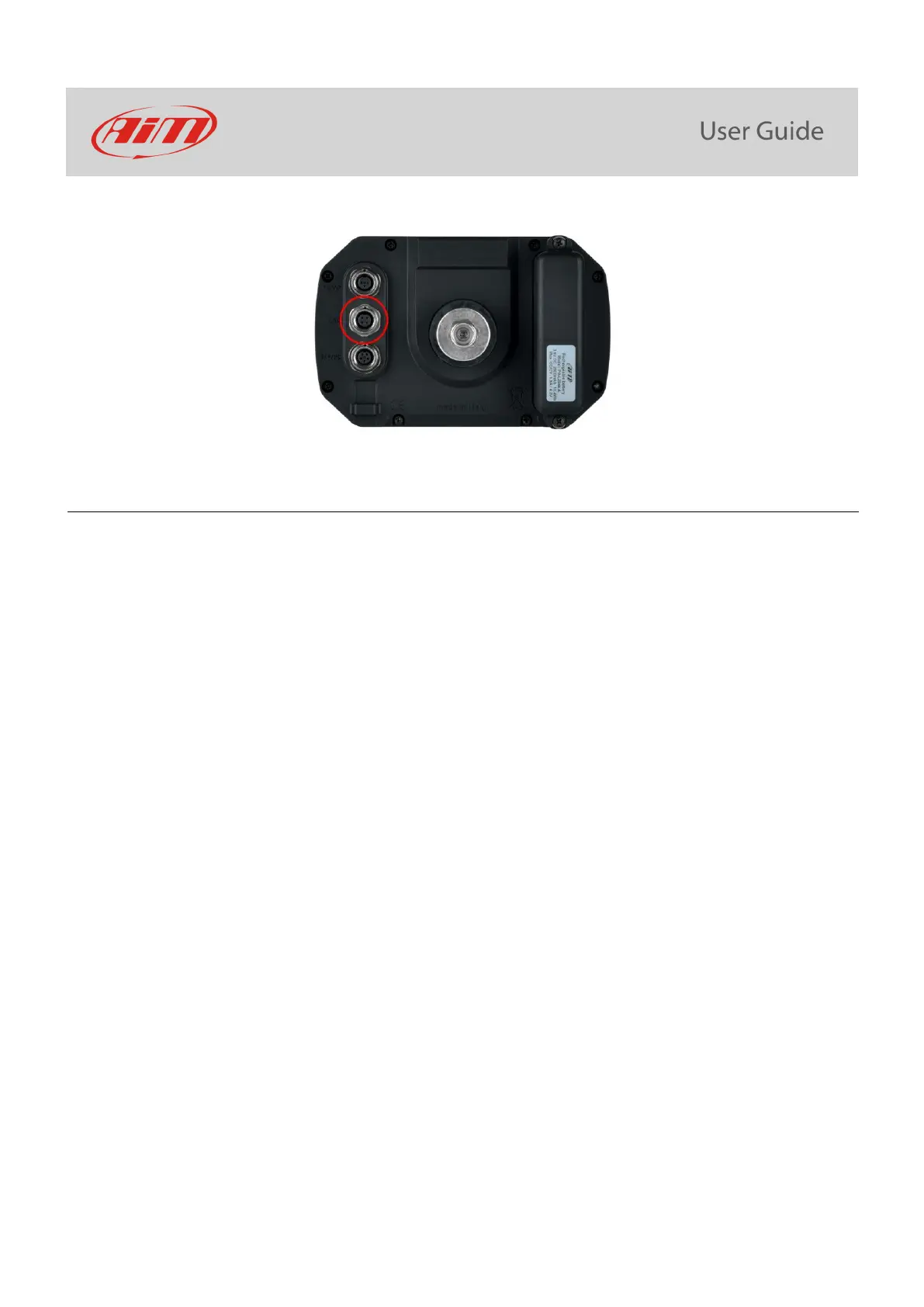

• connect the 4 pins Binder 712 male connector of the speed sensor to the 4 pins Binder 712 female connector placed central
rear of the logger.
• connect 5 pins Binder 712 male connector of CAN Extension Module to 5 pins Binder 712 female connector placed bottom
rear of MyChron5 660.
• connect 5 pins Binder 712 male connector of LCU-One CAN to 5 pins Binder 712 female connector of CAN Extension.
Please remember to always keep RPM wire well separated from thermocouples cables in order to minimize
interferences.
Here below is a complete connection schematic.
