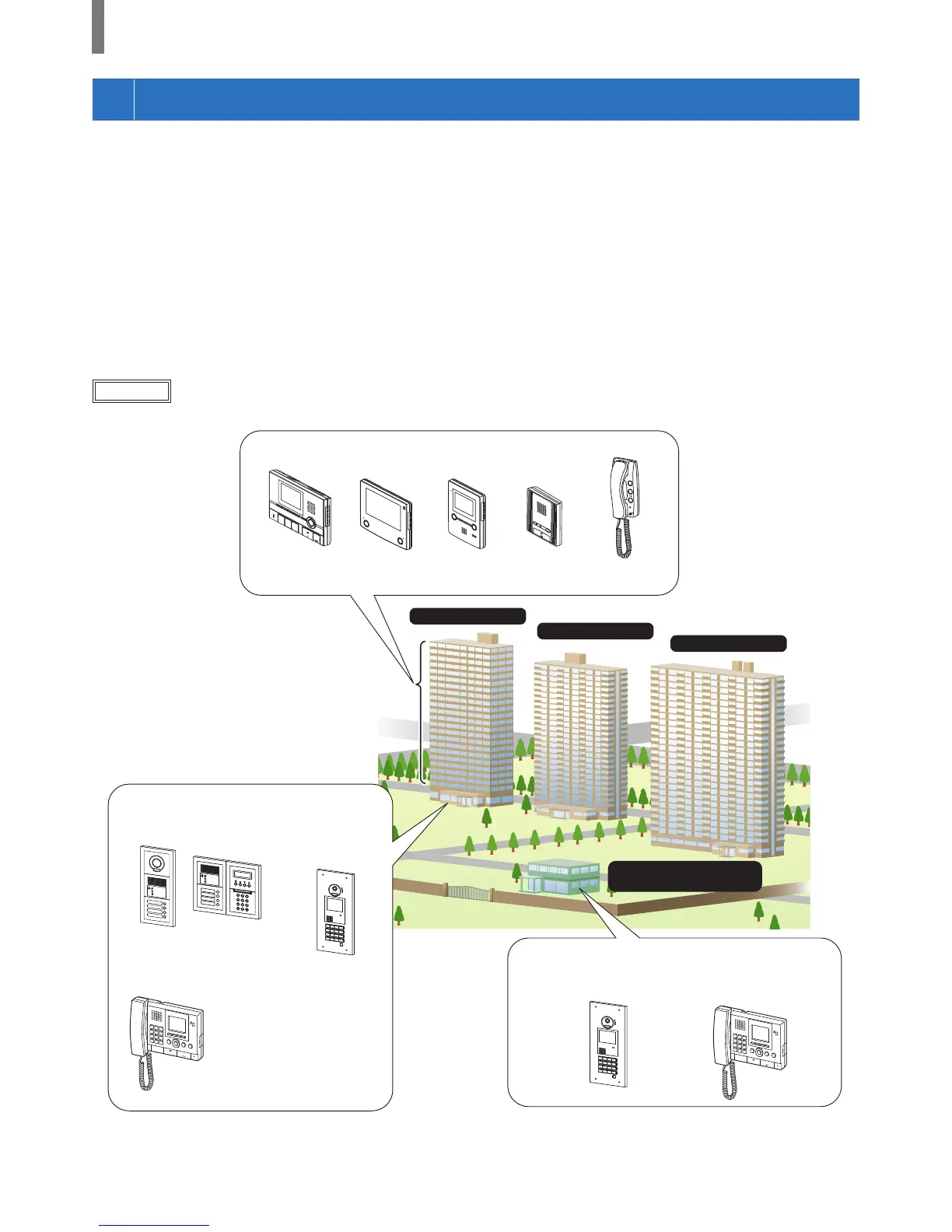

Example
: A system (site) consisting of 1 main and 3 tenant buildings
The GT system consists of up to 8 main buildings and 24 tenant buildings.
Main building:
A control section that functions as a main entrance, guard station, security center, administration offi ce, etc. A main building includes no
residential/tenant stations. You can call up all of the residential/tenant stations and guard stations from an entrance station or guard station in the
same system (site).
* A station that is not programmed cannot be called.
* Modular type entrance stations cannot be installed in a main building. Only all-in-one type can be used.
Tenant building:
A section of collective housing. A tenant building includes residential/tenant stations, entrance stations and guard stations. You can call up all of
the residential/tenant stations and guard stations from an entrance station in the same tenant building. However, you cannot call stations in
another tenant building.
2
B
A
C
3
E
D
F
5
K
J
L
8
U
T
V
4
H
G
I
6
N
M
O
1
0
9
Y
X
W
Z
7
R
Q
P
S
Tenant building
Tenant building
Tenant building
Main building
(administration offi ce)
Residential/tenant stations
Entrance station
(all-in-one type only)
Entrance station
(all-in-one type)
Entrance station
(modular type)
Guard station
Guard station
GT-2C-L/GT-2C
(GT-2H-L/GT-2H)
GT-1A
GT-1D
GT-1C7-L/
GT-1C7
GT-1M3-L/
GT-1M3
GT-DMB-LVN/
GT-DMB-N
GT-DMB-LVN/
GT-DMB-N
GT-MKB-N
GT-MKB-N
