Aiphone GT-1M3 Installation Manual

- 3 -
Table of Contents
 1 COMPONENTS .................................................................................................................................... 3
2 MOUNTING
2-1. Mounting locations .......................................................................................................................... 3
2-2. Mounting .......................................................................................................................................... 4
3 WIRING
3-1. Appropriate cable ............................................................................................................................. 5
3-2. Standard system for residence/tenant (Loop Wiring method) ......................................................... 5
3-3. Option connector .............................................................................................................................. 6
4 SETTINGS
4-1. Manual setting of residence ID ........................................................................................................ 7
REGULATIONS ......................................................................................................................... Back cover
WARRANTY .............................................................................................................................. Back cover

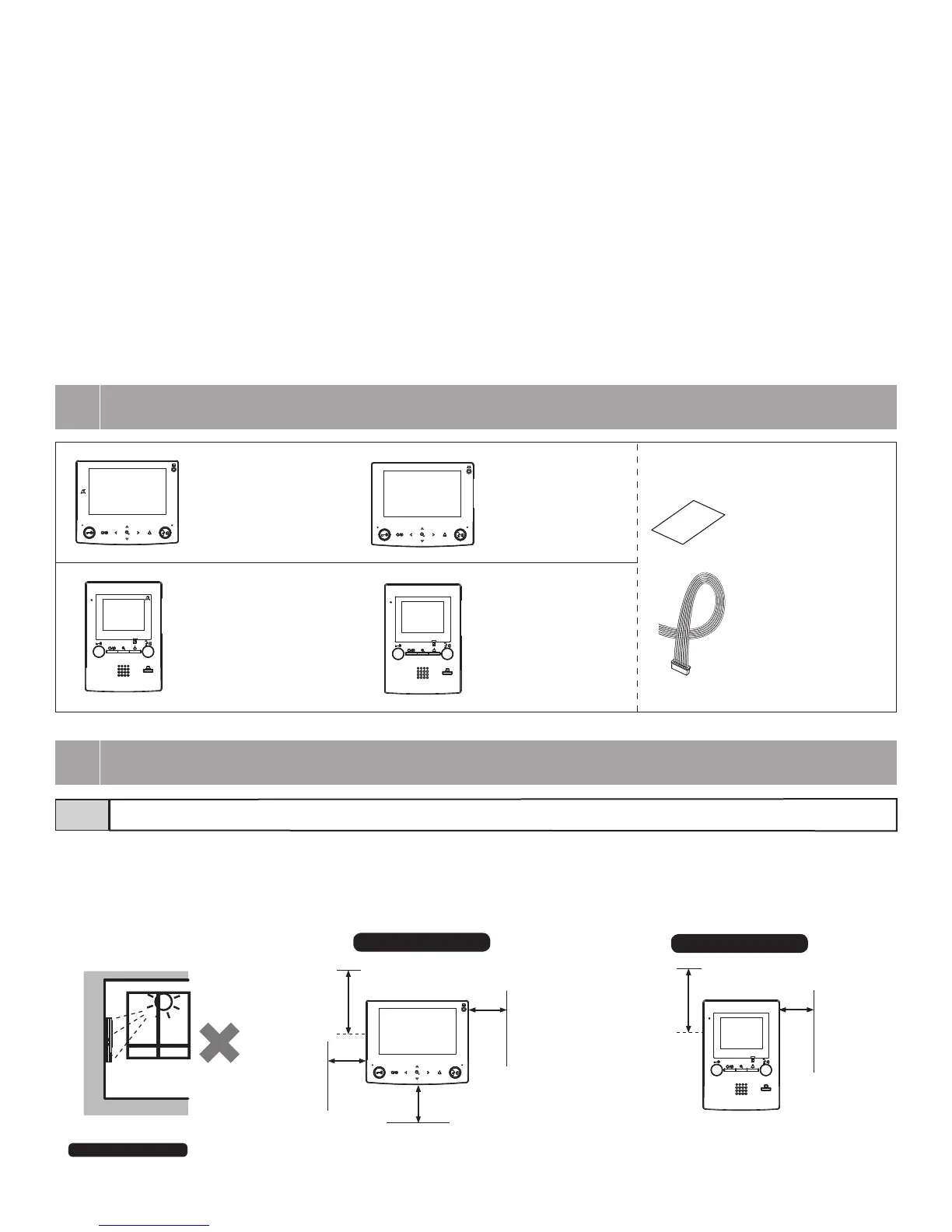

Residential/tenant station
(hearing aid-compatible)
GT-1C7-L
Residential/tenant station
GT-1C7
Residential/tenant station
(hearing aid-compatible)
GT-1M3-L
Residential/tenant station
GT-1M3
Chinese RoHS paper
Option connector
2
MOUNTING
1
COMPONENTS
Mounting locations2-1
• Install the stations in places where the screen is not exposed to direct sunlight.
• Controls are located on the right side of the station.
Allow open space of 5 cm (2") on both sides of the station.
• At least 15 cm (6") of vertical open space from the center of the mounting bracket is needed for mounting the station.
15 cm
(6")
15 cm
(6")
5 cm
(2")
5 cm
(2")
5 cm
(2")
5 cm
(2")
GT-1C7-L/GT-1C7
GT-1M3-L/GT-1M3
*
GT-1C7-L/GT-1C7 only
The station has a speaker on the back. Make sure to leave the specified spaces on all the sides to ensure sound clarity.

Aiphone GT-1M3 Specifications

General

Mounting	Wall mount
Communication	Hands-free
Housing Material	ABS plastic
Audio Output	Built-in speaker
Audio Input	Built-in microphone
Call Signal	Electronic chime
Wiring	2-wire
Operating Temperature	-10°C to +50°C
Operating Voltage	24V DC
