- 7 -
* Read this section in place of [5-6 Manual setting of residence ID] of the GT SYSTEM Installation manual.
Residential/tenant station IDs are automatically assigned during link setting. However, with the GT-1C7-L/GT-1C7 and GT-1M3-L/GT-1M3, they
can be set manually using the DIP switches on the station. All are set to OFF in the default settings.
When replacing a residential/tenant station due to malfunction, resetting the link is unnecessary as the link can be maintained by duplicating the DIP
switches.

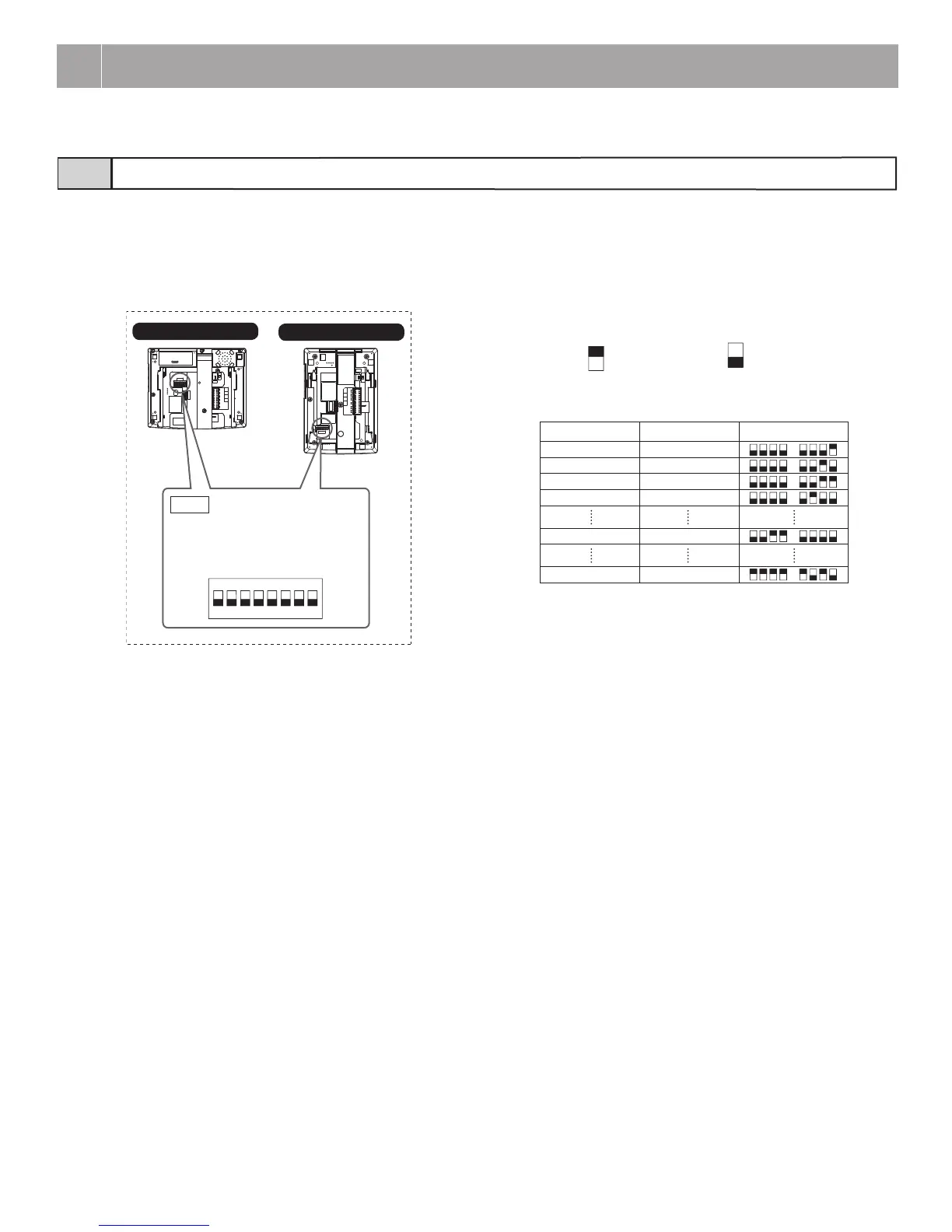

Manual setting of residence ID4-1
1
Change the decimal notation ID to binary ID to set the
residence ID.
• 1 indicates (ON) and 0 indicates (OFF).
• For the binary notation, refer to the appendix information about
the setup tool and perform settings as shown below.
2 • Create a correlation table with the setup tool between
the ID set for residences/tenants and the residential/
tenant station names and upload this to the entrance
station or security guard station.
* For information on how to use the setup tool, see the text (.txt)
file that is installed in the same folder as the setup tool (.exe).
Saving programmed data and resident information data to your
PC is recommended.
• Alternatively, set up the system for the entrance
station, security guard station, and residential/tenant
station. (Refer to [5-7 Setting up the system] of the GT
SYSTEM Installation manual.)
GT-1C7-L/GT-1C7
GT-1M3-L/GT-1M3
SW2
SW2
ON
1
2 3
4
5 6 7
8
SW2
Residence/tenant ID
automatic setting:
"0000 0000"
Please read the chapter [5 SETTINGS (COMMON AREA)] of the GT SYSTEM Installation manual for the settings.
However, also read the following for the sections 5-6 and 5-7 only. Those include operations on the GT-1C7-L/GT-1C7 or GT-1M3-L/GT-1M3.
4
SETTINGS
1
2
3
4
0000 0001
0000 0010
0000 0011
0000 0100
0011 0000
1111 1010
48
250
Binary notation
Decimal notation
DIP switches
