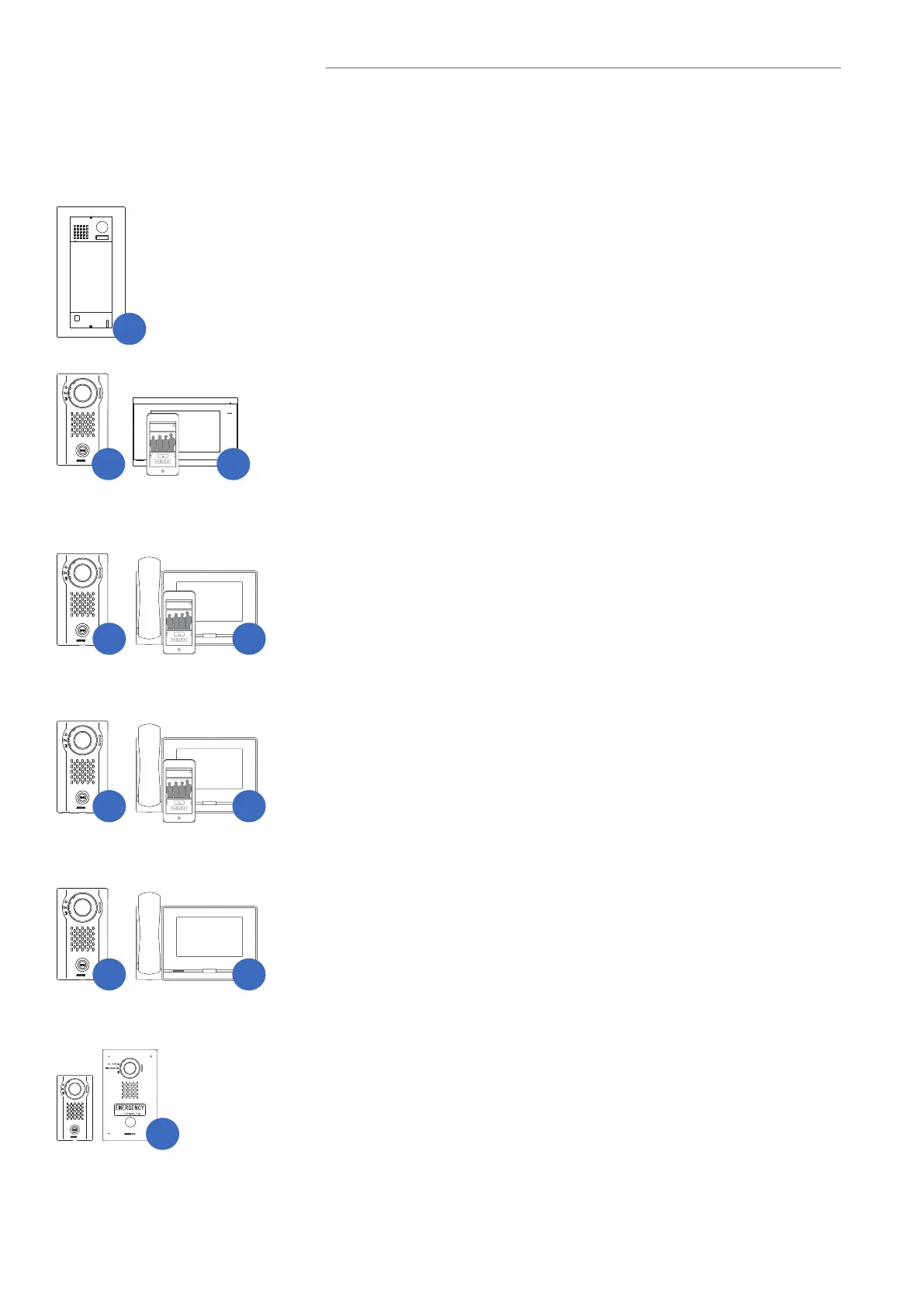

Entrance units consist of up to ten IXG-DM7-* entrance stations. Entrance stations can call guard,
commercial, residential, and inside area units, as well as grant entry to residents by keypad or
card reader.
Entrance Unit
Residential units may consist of up to eight IXG-2C7 tenant stations,
IX-RS-* handset sub stations, or a combination of these, along with up to eight
IXG mobie apps and a telephone number. Tenant stations can communicate
internally within the unit, receive incoming calls from entrance and guard units,
and monitor entrance stations. The two private door stations will only call to
stations within their unit.
Residential Unit
If updating dimensions, be sure to update the GLC layer too.
Please refer to the Product Dimensions Master located here:
H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx
IX-DV
IX-DV
8-1/ 8"
4-1/ 2" 1-3/4"
If updating dimensions, be sure to update the GLC layer too.
Please refer to the Product Dimensions Master located here:
H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx
IXG-2C7
8-15/16" 1"
5-13/16"
x8
x2
x8
If updating dimensions, be sure to update the GLC layer too.
Please refer to the Product Dimensions Master located here:
H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx
IX-DV
IX-DV
8-1/ 8"
4-1/ 2" 1-3/4"
x2
Commercial Units consist of up to eight IX-MV7-* master stations, IX-SOFT
PC master stations, IX-RS-* handset sub stations, one VoIP extension, or a
combination of these, along with eight IXG mobile apps and a telephone number.
Master stations and PC master stations provide advanced functions including
internal paging, call transfer, speed dial buttons, and more.
Stations within a commercial unit can communicate with inside and outside area
units, guard and entry units, and other commercial units. The two private door
stations will only call stations within their unit.
Commercial Unit
x8
If updating dimensions, be sure to update the GLC layer too.
Please refer to the Product Dimensions Master located here:
H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx
IX-DV
IX-DV
8-1/ 8"
4-1/ 2" 1-3/4"
x2
Guard units consist of up to eight IXG-MK guard stations, IX-RS-* handset sub
stations, one VoIP extension, or a combination of these, along with up to eight
IXG Apps and a telephone number. Guard stations provide advanced functions
including internal paging, call transfer, speed dial buttons, and more. The two
private door stations will only call to stations within their unit.
Guard Unit
Inside area units consist of up to eight IX-MV7-* master stations, IXG-MK
guard stations, IX-SOFT PC master stations, IX-RS-* handset sub stations, or
a combination of these, along with two IX Series door stations. Master stations,
guard stations and PC master stations provide advanced functions including
internal paging, call transfer, speed dial buttons, and more.
An inside area master station can communicate with all other unit types. The
two private door stations will only call stations within their unit. Inside area units
cannot contain mobile apps.
Inside Area Unit
If updating dimensions, be sure to update the GLC layer too.
Please refer to the Product Dimensions Master located here:
H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx
IX-DV
IX-DV
8-1/ 8"
4-1/ 2" 1-3/4"
x8x2
Outside area units consist of up to ten door or emergency stations that can call residential,
guard, commercial, and inside area units.
Outside Area Unit
If updating dimensions, be sure to update the GLC layer too.
Please refer to the Product Dimensions Master located here:
H:\Engineering Services\Product Dimensions Master Document\ Product Dimensions Master.xlsx
IX-DV
IX-DV
8-1/ 8 "
4-1/ 2 " 1-3/4"
x10
Units / Stations - Unit Types
Units and their stations will be added to the system in this section. The IXG Series has six di󰀨erent unit types:
Entrance, Residential, Commercial, Guard, Inside Area, and Outside Area. Each has their own purpose,
available features, communication paths, and station types. There is no limit to the number of units in a system,
but each unit type can only support a set number of stations.
