Aiphone IXG Series - Status Light Codes

6
IXGW-TGW
IXGW-TGW
8-1/4"
2-3/8"
4-1/4"

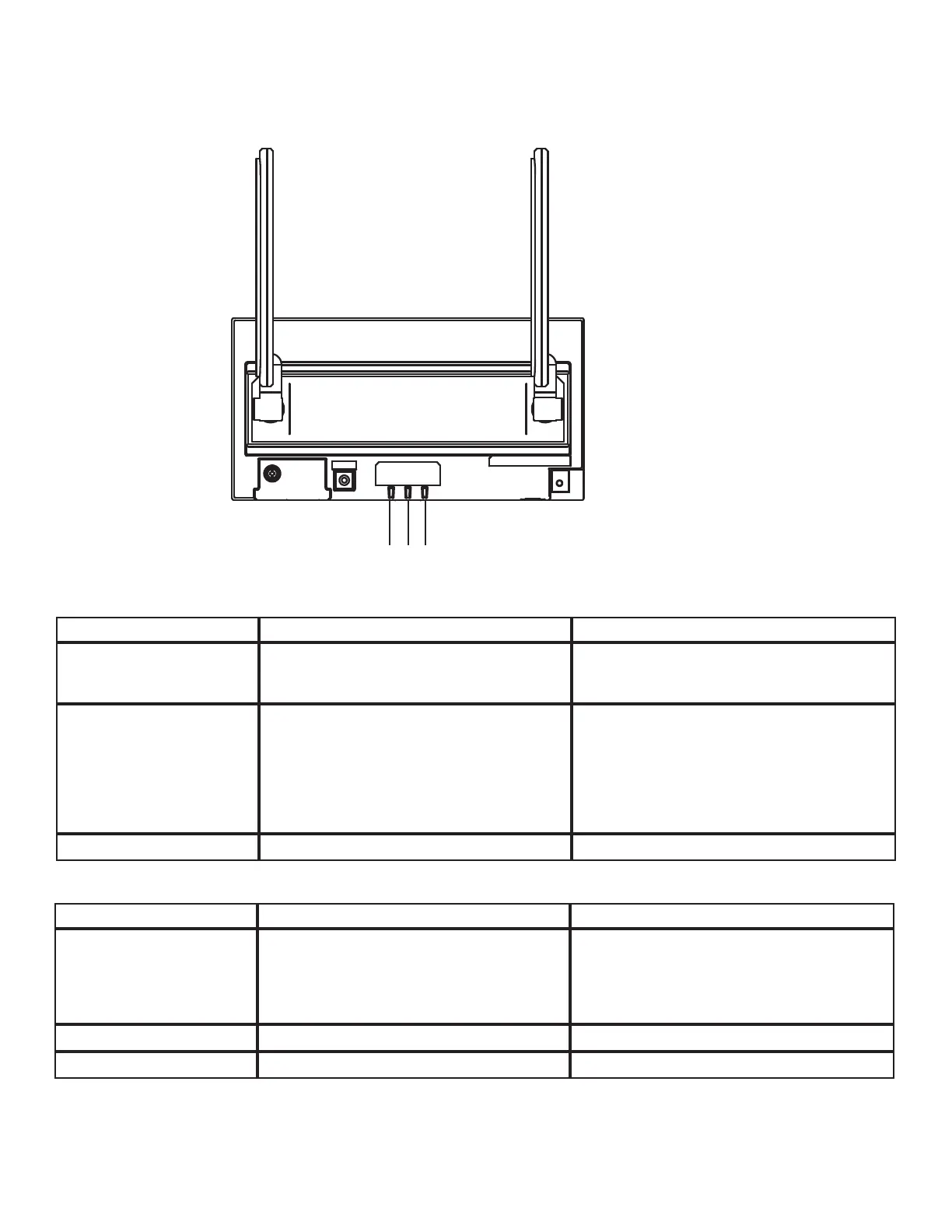

[1][2][3]
[1] Signal strength indicator
(green)
[2] Wireless indicator (green)
[3] Status indicator
(orange/green)
Legend
Description
SIM card PIN lock (incorrect PIN code has been
entered three times; the PUK code is needed to
recover from the PIN lock state).
Light Pattern
Not applicable
[1] Signal Strength Indicator
Light Color, Status
Green, Solid
Green, Flashing Reception level 5 (strongest signal)
Reception level 4
Reception level 3
Reception level 2
Flashes 4 times, pauses for 1.125 seconds
Flashes 3 times, pauses for 1.375 seconds
Flashes 2 times, pauses for 1.625 seconds
Flashes 1 time, pauses for 1.875 seconds
Green, O󰀨 Reception level 1 (no connection, out of range).Not applicable
Status Light Codes
The lights on the front of the IXGW-TGW can be used to read the status and strength of the station’s wireless connection.
[2] Wireless Indicator
Light Color, Status DescriptionLight Pattern
Green, Flashing No 4G LTE connection (including connection
issues or no contract signed for the account).
Has a 4G LTE connection.
Flashes 1 time for .5 seconds, pauses for .5
seconds
Flashes 1 time for .3 seconds, pauses for 2.7
seconds
Green, Solid Communication module shutting down.Not applicable
Green, O󰀨 Communication module shut down.Not applicable
