5

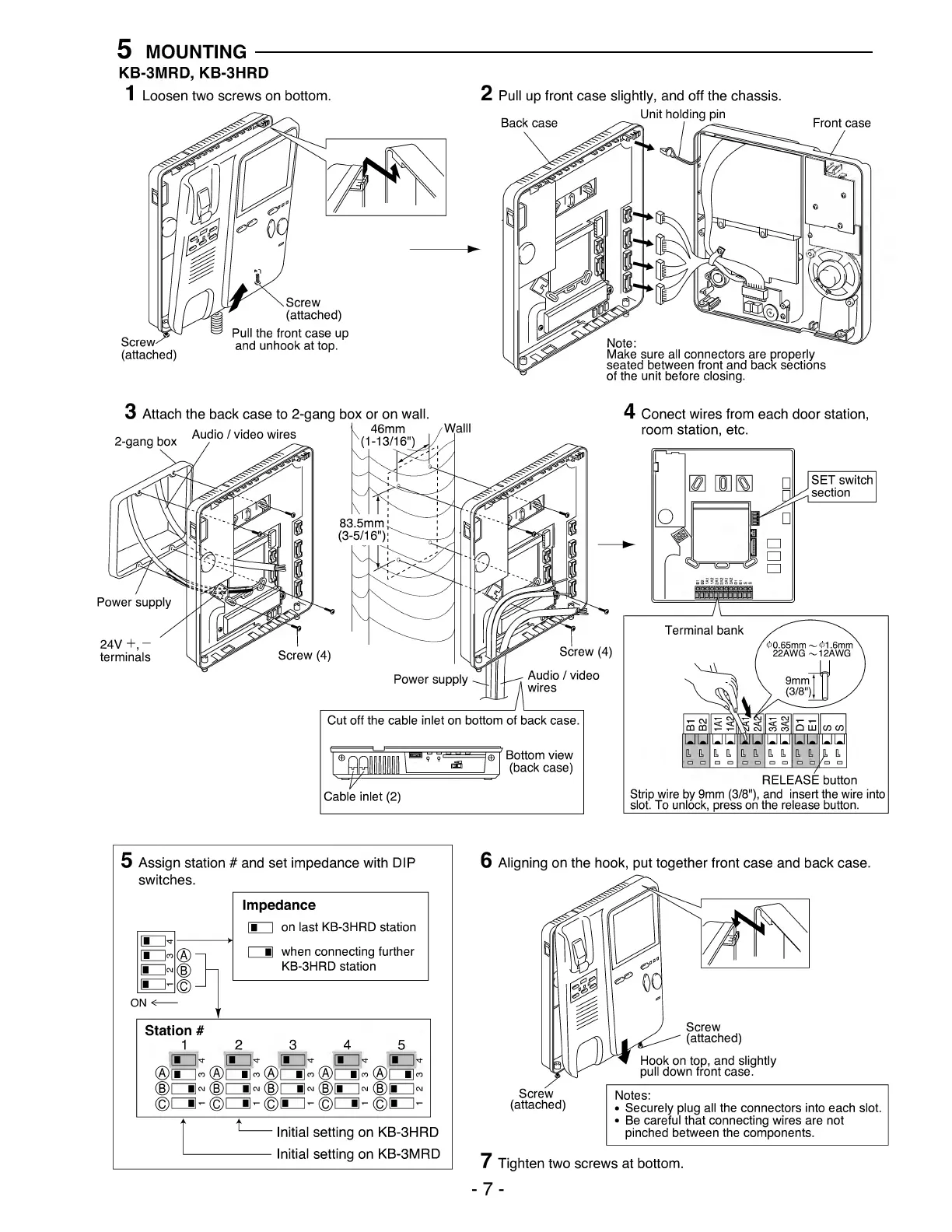

MOUNTING-
KB-3MRD,
KB-3HRD
1
Loosen
two
screws
on
bottom.
2
Pull
up
front
case
slightly,
and
off
the
chassis.
3
Attach
the
back
case
to
2-gang
box
or
on
wall.
4
Conect
wires
from
each
door
station,
5
Assign
station
#
and
set
impedance
with
DIP
switches.
6
Aligning
on
the
hook,
put
together
front
case
and
back
case.
7
Tighten
two
screws
at
bottom.
-
7
-

Table of Contents

Other manuals for Aiphone KB-3MRD

Preview: Operation Manual
Operation Manual8 pages
Preview: Specifications
Specifications2 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Aiphone KB-3MRD and is the answer not in the manual?

Aiphone KB-3MRD Specifications

Operating Environment IconOperating Environment
operating temperature0°C ~ 40°C
wiring distance to door100m 200m
wiring distance to farthest monitor50m 100m
Power IconPower
power source24V DC
consumption710mA
standby consumption230mA
Weight and Dimensions IconWeight and Dimensions
weight900g
dimensions185 (W) X 195 (H) X 84 (D) mm
