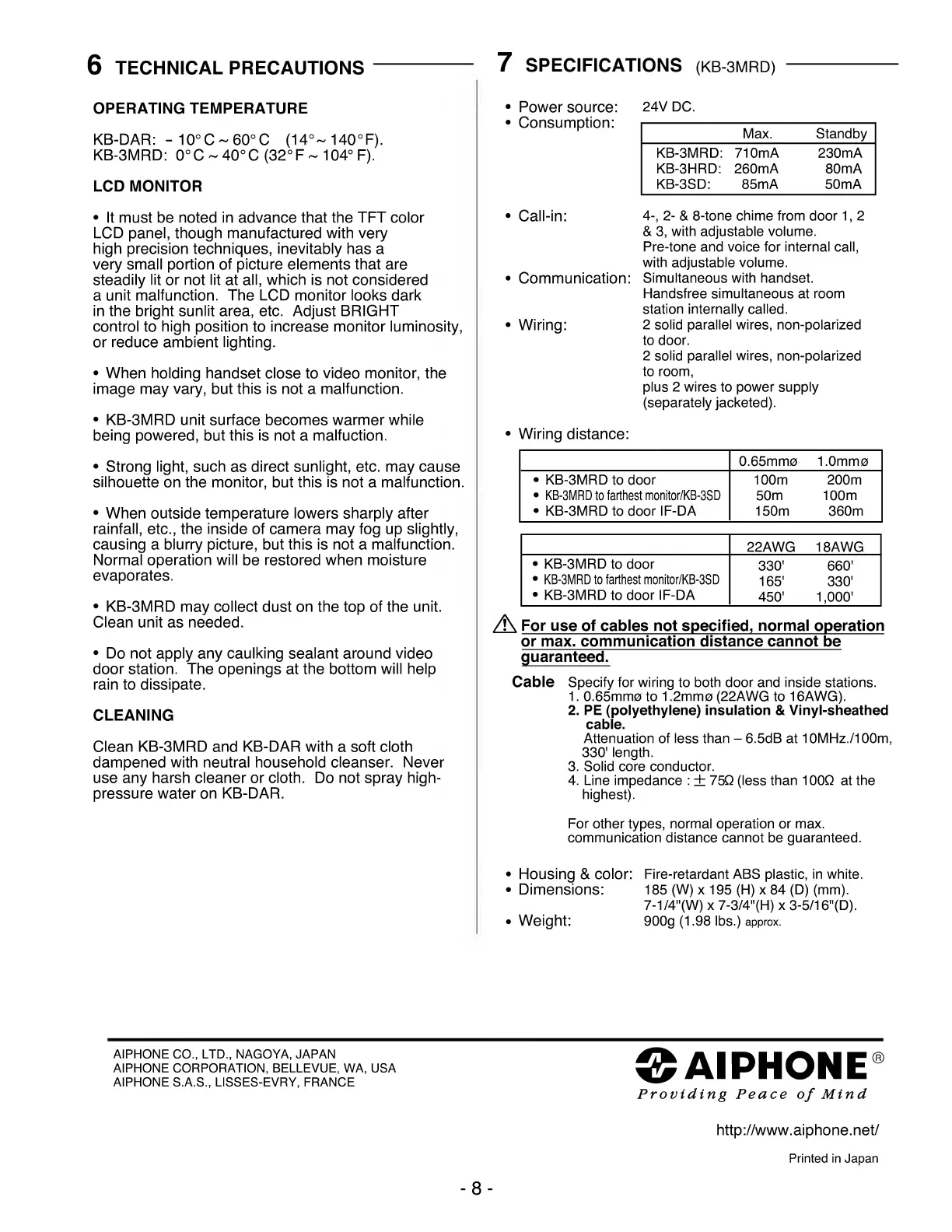

6 TECHNICAL PRECAUTIONS
7 SPECIFICATIONS (KB-3MRD)
OPERATING TEMPERATURE
KB-DAR: - 10°C~60°C (14°~140°F).
KB-3MRD: 0°C ~ 40°C (32°F ~ 104° F).
LCD MONITOR
Power source:
Consumption:
24V DC.
Max.
Standby
KB-3MRD: 710mA 230mA
KB-3HRD: 260mA 80mA
KB-3SD: 85mA 50mA
• It must be noted in advance that the TFT color
LCD panel, though manufactured with very
high precision techniques, inevitably has a
very small portion of picture elements that are
steadily lit or not lit at all, which is not considered
a unit malfunction. The LCD monitor looks dark
in the bright sunlit area, etc. Adjust BRIGHT
control to high position to increase monitor luminosity,
or reduce ambient lighting.
• When holding handset close to video monitor, the
image may vary, but this is not a malfunction.
• KB-3MRD unit surface becomes warmer while
being powered, but this is not a malfuction.
• Strong light, such as direct sunlight, etc. may cause
silhouette on the monitor, but this is not a malfunction.
• When outside temperature lowers sharply after
rainfall, etc., the inside of camera may fog up slightly,
causing a blurry picture, but this is not a malfunction.
Normal operation will be restored when moisture
evaporates.
• KB-3MRD may collect dust on the top of the unit.
Clean unit as needed.
• Do not apply any caulking sealant around video
door station. The openings at the bottom will help
rain to dissipate.
CLEANING
Clean KB-3MRD and KB-DAR with a soft cloth
dampened with neutral household cleanser. Never
use any harsh cleaner or cloth. Do not spray high-
pressure water on KB-DAR.
• Call-in:
• Communication:
• Wiring:
4-, 2- & 8-tone chime from door 1,2
& 3, with adjustable volume.
Pre-tone and voice for internal call,
with adjustable volume.
Simultaneous with handset.
Handsfree simultaneous at room
station internally called.
2 solid parallel wires, non-polarized
to door.
2 solid parallel wires, non-polarized
to room,
plus 2 wires to power supply
(separately jacketed).
• Wiring distance:
O.65mm0 I.Ommo
• KB-3MRD to door
• KB-3MRD to farthest monitor/KB-3SD
• KB-3MRD to door IF-DA
100m 200m
50m 100m
150m 360m
22AWG 18AWG
• KB-3MRD to door
• KB-3MRD to farthest monitor/KB-3SD
• KB-3MRD to door IF-DA
330' 660'
165' 330'
450' 1,000'
A For use of cables not specified, normal operation
or max, communication distance cannot be
guaranteed.
Cable Specify for wiring to both door and inside stations.
1. O.65mm0 to 1. 2 m n n 0 (22AWG to 16AWG).
2. PE (polyethylene) insulation & Vinyl-sheathed
cable.
Attenuation of less than - 6.5dB at 10MHz./100m,
330' length.
3. Solid core conductor.
4. Line impedance : ± 75Q (less than 100Q at the
highest).
For other types, normal operation or max.
communication distance cannot be guaranteed.
• Housing & color:
• Dimensions:
• Weight:
Fire-retardant ABS plastic, in white.
185 (W) X 195 (H) X 84 (D) (mm).
7-1/4"(W) X 7-3/4"(H) x 3-5/16"(D).
900g (1.98 lbs.) approx.
AlPHONE CO., LTD., NAGOYA, JAPAN
AlPHONE CORPORATION, BELLEVUE, WA, USA
AlPHONE S.A.S., LISSES-EVRY, FRANCE
® AlPHONE®
Providing Peace of Mind
-8-
http://www.aiphone.net/
Printed in Japan

Aiphone KB-3MRD Specifications

Operating Environment

operating temperature	0°C ~ 40°C
wiring distance to door	100m 200m
wiring distance to farthest monitor	50m 100m

Power

power source	24V DC
consumption	710mA
standby consumption	230mA

Weight and Dimensions

weight	900g
dimensions	185 (W) X 195 (H) X 84 (D) mm
