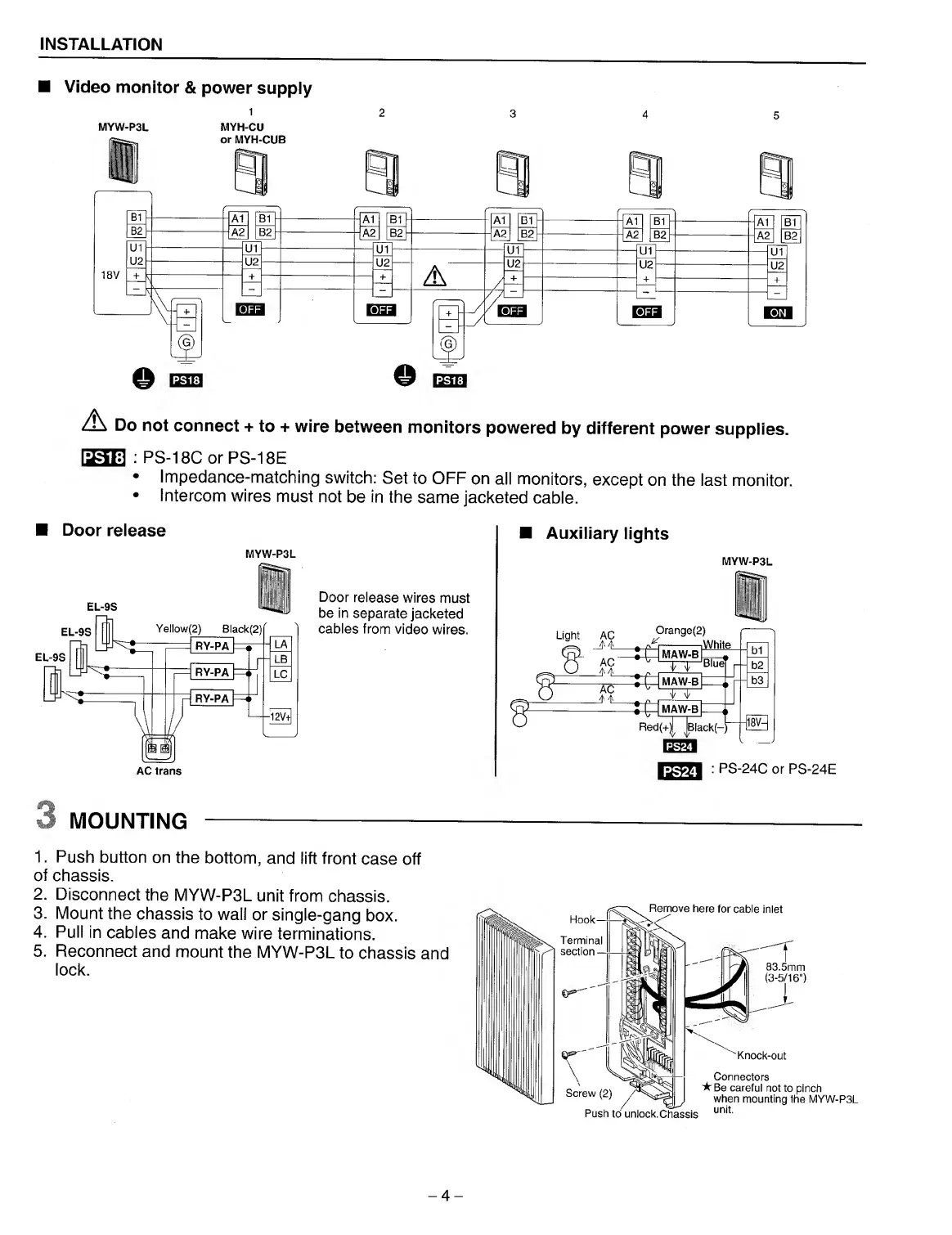

INSTALLATION
■
Video
monitor
&
power
supply
^
litM
©
ran
A
Do
not
connect
+
to
+
wire
between
monitors
powered
by
different
power
supplies.
IsHEI
:
PS-18C
or
PS-18E
•
Impedance-matching
switch:
Set
to
OFF
on
all
monitors,
except
on
the
last
monitor.
•
Intercom
wires
must
not
be
in
the
same
jacketed
cable.
3
MOUNTING
1.
Push
button
on
the
bottom,
and
lift
front
case
off
of
chassis.
2.
Disconnect
the
MYW-P3L
unit
from
chassis.
3.
Mount
the
chassis
to
wall
or
single-gang
box.
4.
Pull
in
cables
and
make
wire
terminations.
5.
Reconnect
and
mount
the
MYW-P3L
to
chassis
and
lock.
-
4
-
