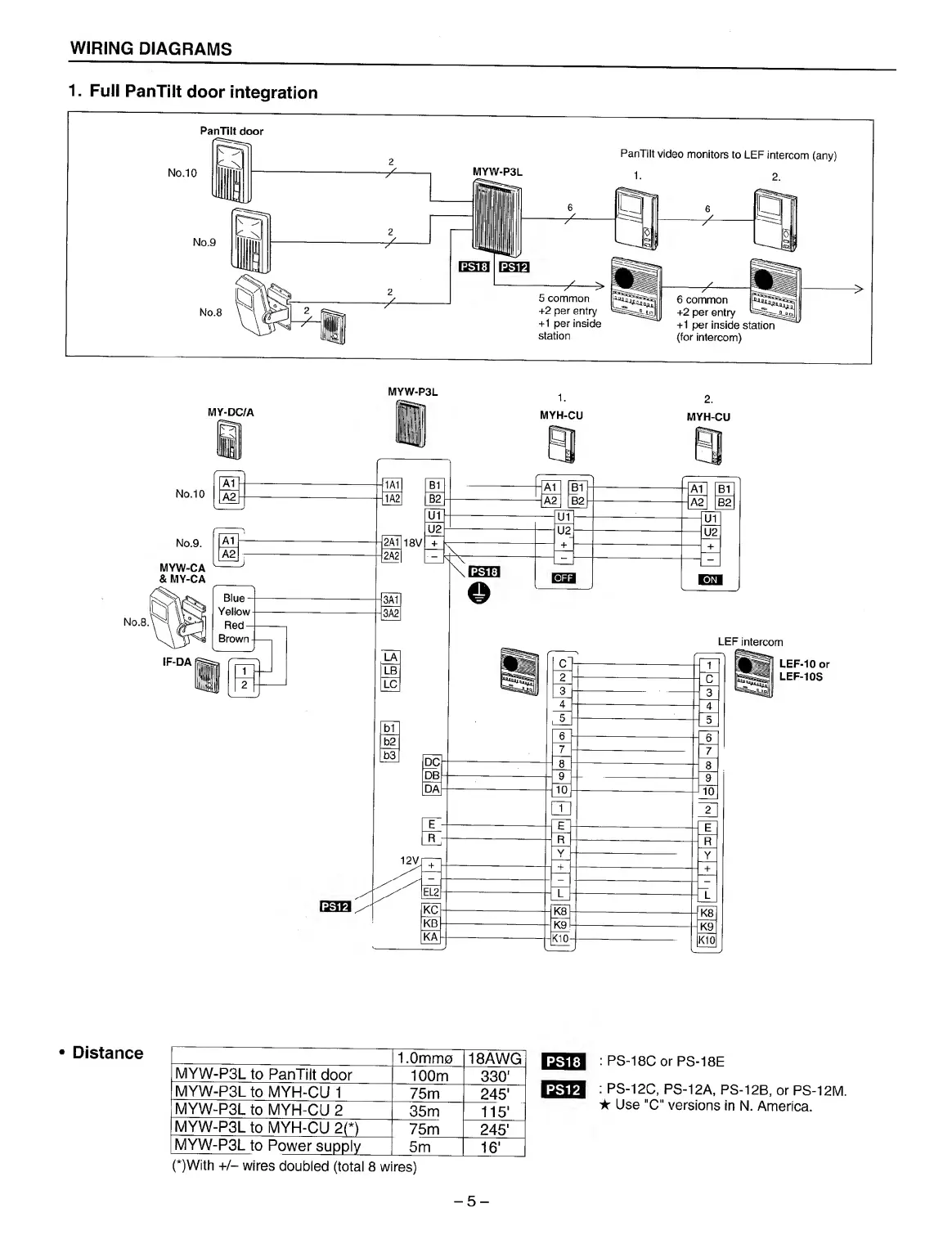

WIRING
DIAGRAMS
Distance
1
.Ommo
18AWG
MYW-P3L
to
PanTilt
door
100m
330'
MYW-P3L
to
MYH-CU
1
75m
245
1
MYW-P3L
to
MYH-CU
2
35m
115'
MYW-P3L
to
MYH-CU
2(*)
75m
245'
MYW-P3L
to
Power
supply
5m
16'
(*)With
+/-
wires
doubled
(total
8
wires)
PS18
:
PS-18C
or
PS-18E
PS12
:
PS-12C,
PS-12A,
PS-12B,
or
PS-12M
★
Use
"C"
versions
in
N.
America.
