Aiphone LEF Series User Manual

– 2 –

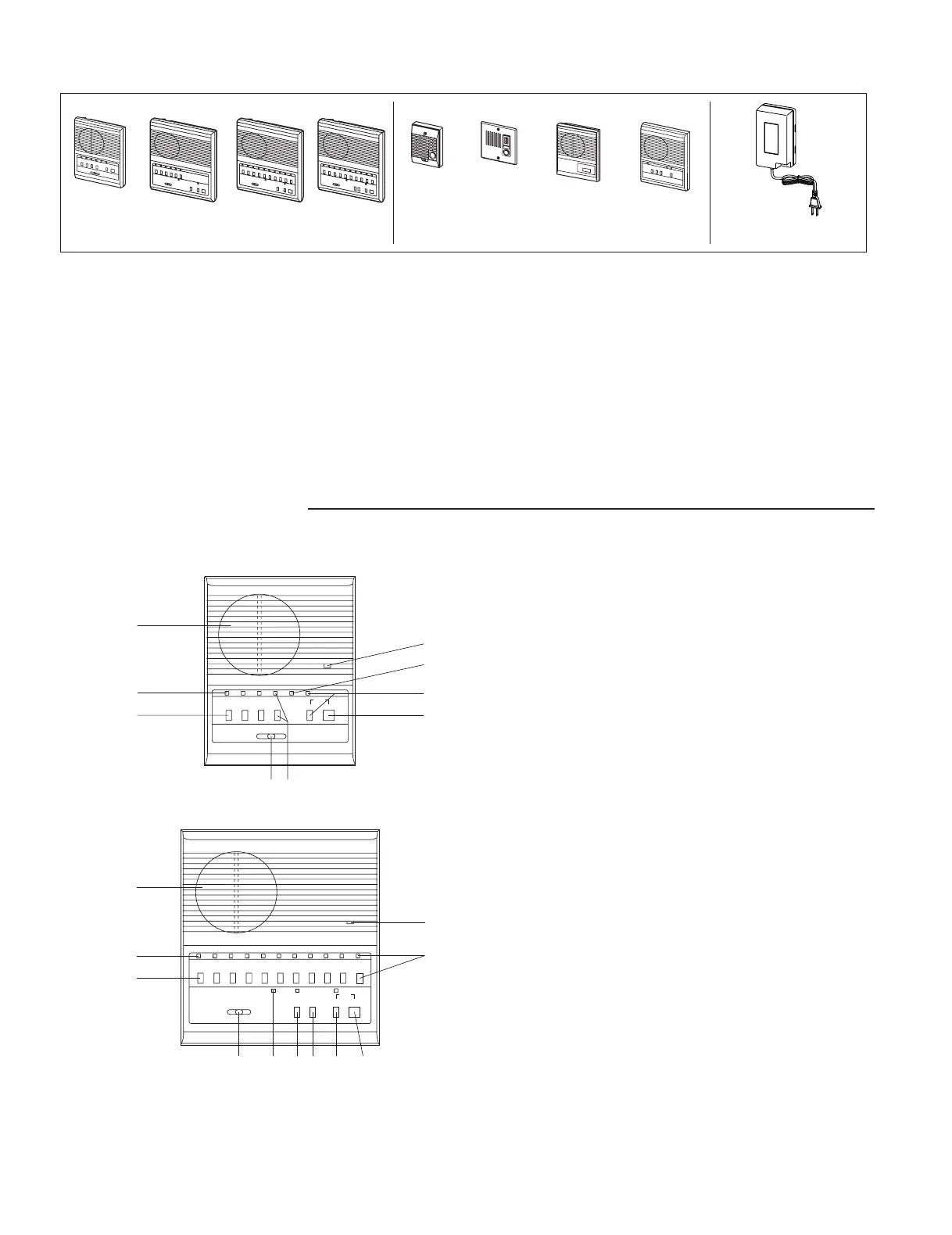

2 NAMES & FEATURES
LEF-3
LEF-5, 10, 10S
1 Speaker
2 Call-in LED (3)
3 Station-Select button (3)
4 Voice volume control
5 OFF button (w/ON LED)
6 Mic. (initiator only)
7 Occupied LED (In-use)
8 Priv. button & LED indicator
9 Talk (listen) button
1 Speaker
2 Call-in LED (5 or 10)
3 Station-Select button (5 or 10)
4 Voice volume control
5 Occupied (In-use) LED
6 All Call transmit button & LED
7 Door Strike button
8 Mic. (initiator only)
9 OFF button (w/ON LED)
10 Priv. button & LED indicator
11 Talk (listen) button
★ LEF-5: 5 station buttons and OFF.
LEF-10: All Call button & LED not included
 Names & functions
 Components available
• Intercoms: Masters or subs, intermixable
Master stations Sub stations
LEF-3
3-call
LEF-5
5-call
LEF-10
10-call
LEF-10S
10-call
w/all call btn.
LE-D
Surface mt.
LE-DA
Flush mt.
LE-A
LE-AN
1-call(w/Priv.)
LE-A3,
LE-AN3
3-call(w/Priv.)
PS-1225UL
PS-1225S
12V DC, 2.5A power supply
PS-1215DIN, 12V DC, 1.5A
• Additional Sub stations:
LE-DL: Surface-mount w/anodized aluminum panel
★ AH-108 8Ω horn speaker w/LT-1 matching
transformer & NP-25V (33µfd,bp,25V)
• All Call & Background Music:
BG-10C: All call, chime & music adaptor.
Requires a PS-1225UL power supply (12V DC,
2.5A).
• PanTilt video door stations:
MYW-P1L or MYW-P3L
adaptor : For 1 or 3 Video door stations.
MYW-P10L for 4~10 Video door stations.
Up to two MYH-CU video monitors can be powered with one
PS-1820UL power supply. Add PS-1820UL power supply for every
two additional monitors (up to 10 or max. distance capacity).
MK-DAC, MK-DBC, MK-DGC & MK-DGV, PanTilt video doors.
1
6
7
8
9
2
3
45
123
OFF .... OCCUPIED
PRIV TALK
CALL
12345678910
OFF
OCCUPIED ALL CALL LOCK PRIV TALK
CALL
...........
1
2
3
456 7 10 11
8
9

Aiphone LEF Series Specifications

General

Material	ABS Plastic
Color	White
Audio Frequency Response	300Hz - 3.4kHz
Wiring	2-wire
Door Release	Yes
