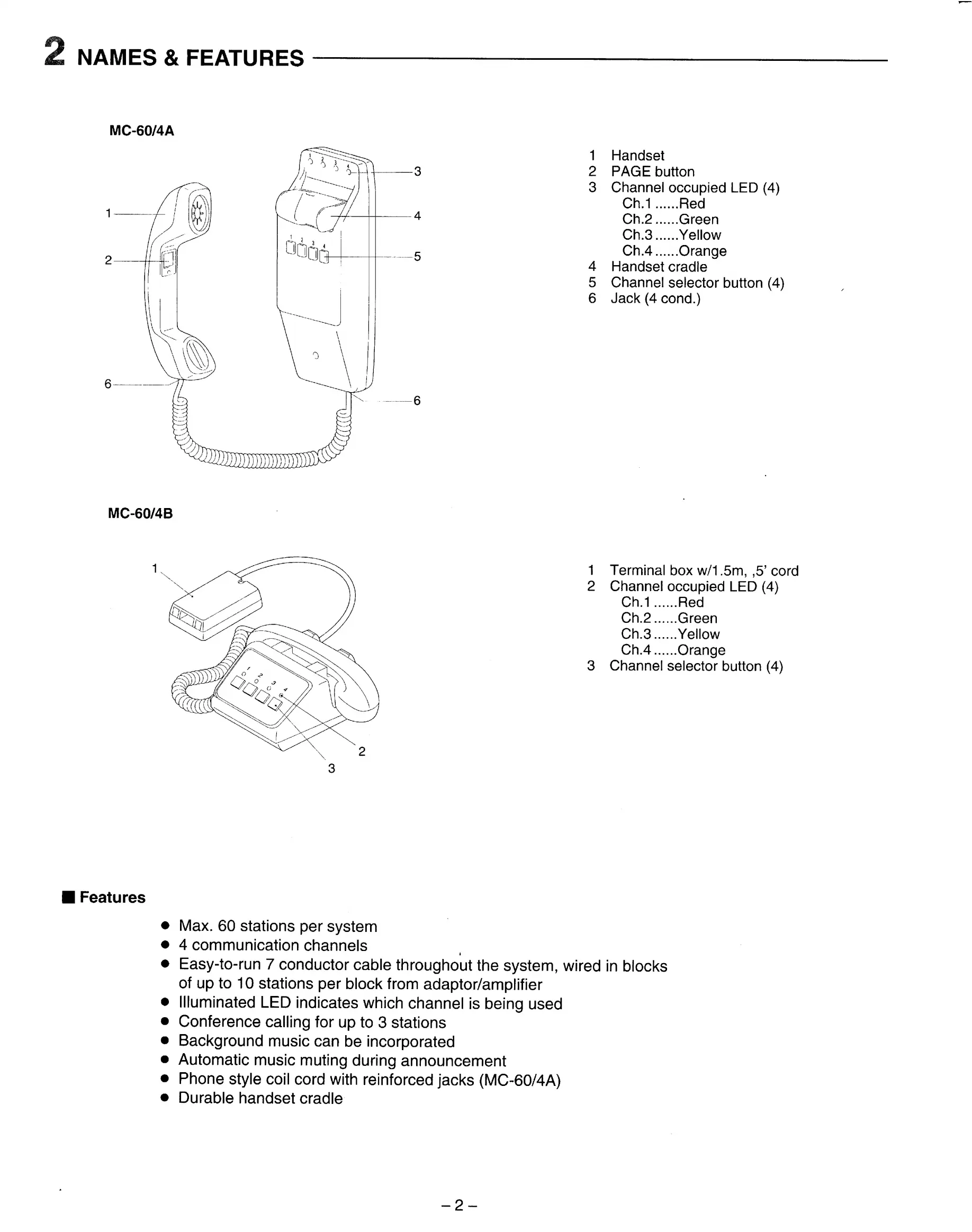

NAMES
&
FEATURES
MC-60/4A
1
2
6
3
4
5
6
1
Handset
2
PAGE
button
3
Channel
occupied
LED
(4)
Ch.1.Red
Ch.2.Green
Ch.3.Yellow
Ch.4.Orange
4
Handset
cradle
5
Channel
selector
button
(4)
6
Jack
(4
cond.)
MC-60/4B
1
Terminal
box
w/1,5m,
,5’
cord
2
Channel
occupied
LED
(4)
Ch.1
...
...Red
Ch.2...
...Green
Ch.3...
...Yellow
Ch.4...
...Orange
Channel
selector
button
(4)
Features
Max.
60
stations
per
system
4
communication
channels
i
Easy-to-run
7
conductor
cable
throughout
the
system,
wired
in
blocks
of
up
to
10
stations
per
block
from
adaptor/amplifier
Illuminated
LED
indicates
which
channel
is
being
used
Conference
calling
for
up
to
3
stations
Background
music
can
be
incorporated
Automatic
music
muting
during
announcement
Phone
style
coil
cord
with
reinforced
jacks
(MC-60/4A)
Durable
handset
cradle

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Aiphone MC-60/4A and is the answer not in the manual?

Aiphone MC-60/4A Specifications

MC-60/4A

Power IconPower
power sourceDC 24V
current consumptionMax. 70 mA
power supplyPS-24N
Operating Environment IconOperating Environment
temperature range0°C to +40°C (32°F to 104°F)
wiring conductors7 conductors in loop
station capacityMax. 60 stations
Weight and Dimensions IconWeight and Dimensions
height9-1/4 inches (235 mm)
width3-1/2 inches (90 mm)
depth3-1/2 inches (90 mm)
weight1.06 lbs (480 g)

MC-60/4B

Power IconPower
power sourceDC 24V
current consumptionMax. 70 mA
power supplyPS-24N
Operating Environment IconOperating Environment
temperature range0°C to +40°C (32°F to 104°F)
wiring conductors7 conductors in loop
station capacityMax. 60 stations
Weight and Dimensions IconWeight and Dimensions
height4 inches (102 mm)
width8-7/8 inches (225 mm)
depth7-1/2 inches (190 mm)
weight2.65 lbs (1.2 kg)

Related product manuals
