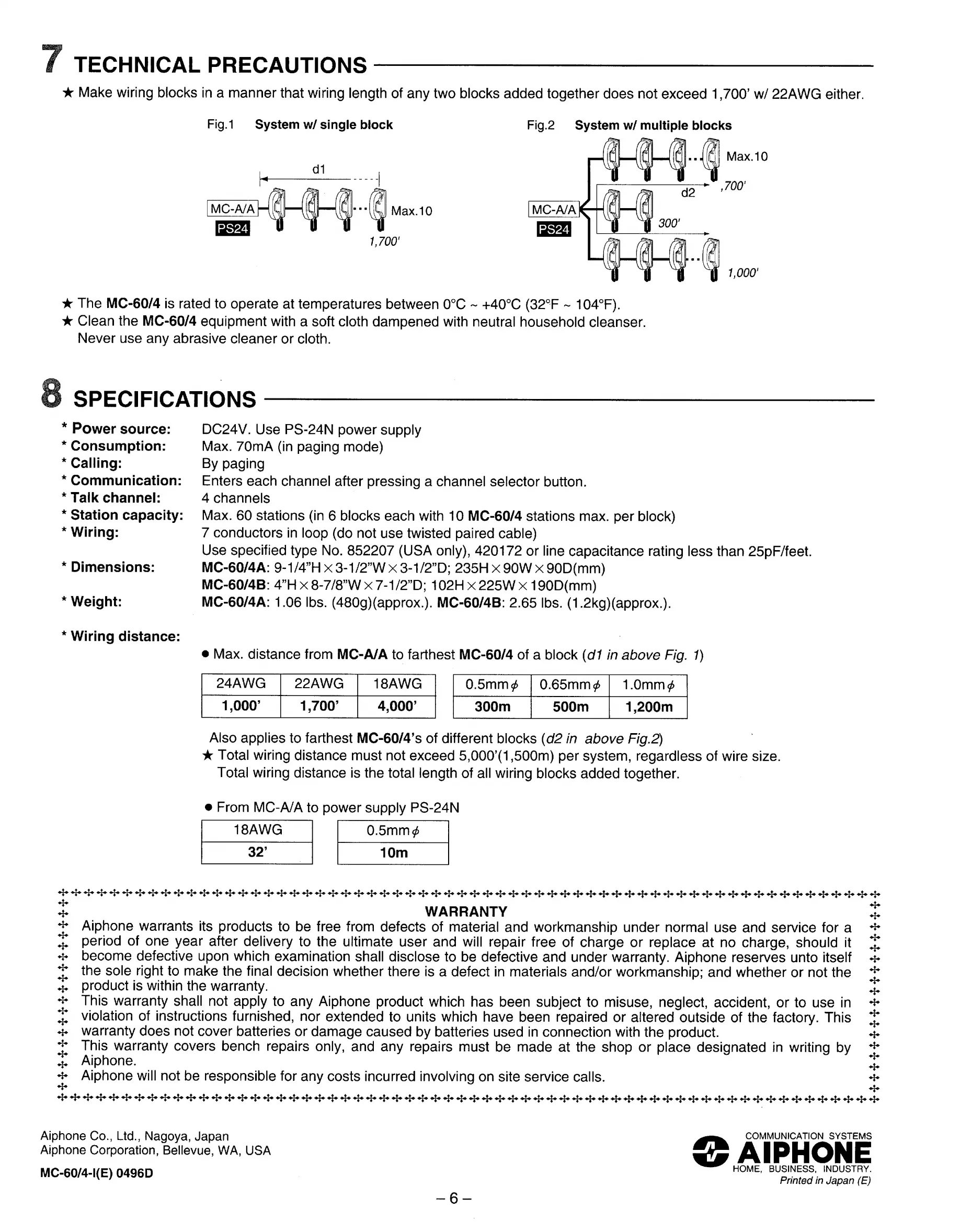

TECHNICAL PRECAUTIONS-
★ Make wiring blocks in a manner that wiring length of any two blocks added together does not exceed 1,700’ w/ 22AWG either.
Fig. 1 System w/ single block Fig.2 System w/ multiple blocks
★ The MC-60/4 is rated to operate at temperatures between 0°C ~ +40°C (32°F ~ 104°F).
★ Clean the MC-60/4 equipment with a soft cloth dampened with neutral household cleanser.
Never use any abrasive cleaner or cloth.
SPECIFICATIONS
* Power source:
* Consumption:
* Calling:
* Communication:
* Talk channel:
* Station capacity:
* Wiring:
* Dimensions:
* Weight:
DC24V. Use PS-24N power supply
Max. 70mA (in paging mode)
By paging
Enters each channel after pressing a channel selector button.
4 channels
Max. 60 stations (in 6 blocks each with 10 MC-60/4 stations max. per block)
7 conductors in loop (do not use twisted paired cable)
Use specified type No. 852207 (USA only), 420172 or line capacitance rating less than 25pF/feet.
MC-60/4 A: 9-1/4”H x 3-1/2”Wx 3-1/2”D; 235H x 90W x 90D(mm)
MC-60/4B: 4”Hx8-7/8”Wx7-1/2”D; 102H X225WX 190D(mm)
MC-60/4A: 1.06 lbs. (480g)(approx.). MC-60/4B: 2.65 lbs. (1.2kg)(approx.).
* Wiring distance:
• Max. distance from MC-A/A to farthest MC-60/4 of a block (dl in above Fig. 1)
24AWG
22AWG 18AWG
1,000’
1,700’
4,000’
0.5mm^
0.65mm <f>
1.0mm (p
300m
500m
1,200m
Also applies to farthest MC-60/4’s of different blocks (d2 in above Fig.2)
★ Total wiring distance must not exceed 5,000’(1,500m) per system, regardless of wire size.
Total wiring distance is the total length of all wiring blocks added together.
• From MC-A/A to power supply PS-24N
18AWG
0.5mm ^
32’
10m
t WARRANTY
J Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a
period of one year after delivery to the ultimate user and will repair free of charge or replace at no charge, should it
become defective upon which examination shall disclose to be defective and under warranty. Aiphone reserves unto itself
J the sole right to make the final decision whether there is a defect in materials and/or workmanship; and whether or not the
X product is within the warranty.
* This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect, accident, or to use in
J violation of instructions furnished, nor extended to units which have been repaired or altered outside of the factory. This
<+ ► warranty does not cover batteries or damage caused by batteries used in connection with the product.
J This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by
Aiphone.
Aiphone will not be responsible for any costs incurred involving on site service calls.
Aiphone Co., Ltd., Nagoya, Japan
Aiphone Corporation, Bellevue, WA, USA
MC-60/4-l(E) 0496D
© C OMMUNICATION SYSTEMS
AIPHONE
HOME, BUSINESS, INDUSTRY.
Printed in Japan (E)
-6 —
