Aiphone TD-H Series User Manual

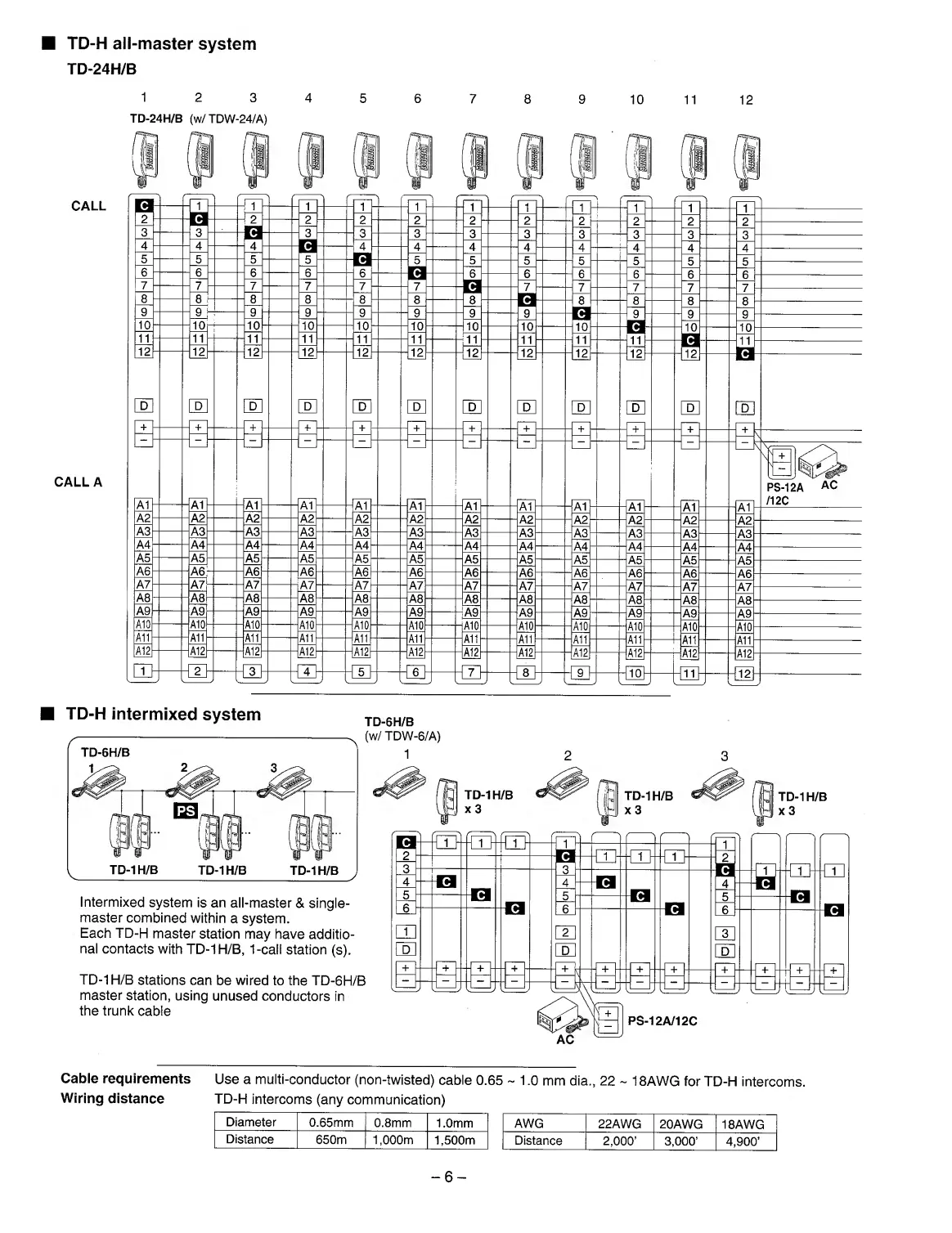

■ TD-H all-master system
TD-24H/B
CALL
CALL A
1 2 3
4 5 6
7
8 9
10 11 12
TD-H intermixed system
TD-6H/B
(w/ TDW-6/A)
1
Intermixed system is an all-master & single¬
master combined within a system.
Each TD-H master station may have additio¬
nal contacts with TD-1H/B, l-cali station (s).
TD-1H/B stations can be wired to the TD-6H/B
master station, using unused conductors in
the trunk cable
TD-1H/B
x3
TD-1H/B
x3
TD-1H/B
x3
Cable requirements Use a multi-conductor (non-twisted) cable 0.65 --1.0 mm dia., 22 ~ 18AWG for TD-H intercoms.
Wiring distance TD-H intercoms (any communication)
Diameter
0.65mm
0.8mm
1.0mm
Distance
650m
1,000m
1,500m
AWG
22AWG 20AWG
18AWG
Distance
2,000’
3,000’ 4,900’
- 6 -
