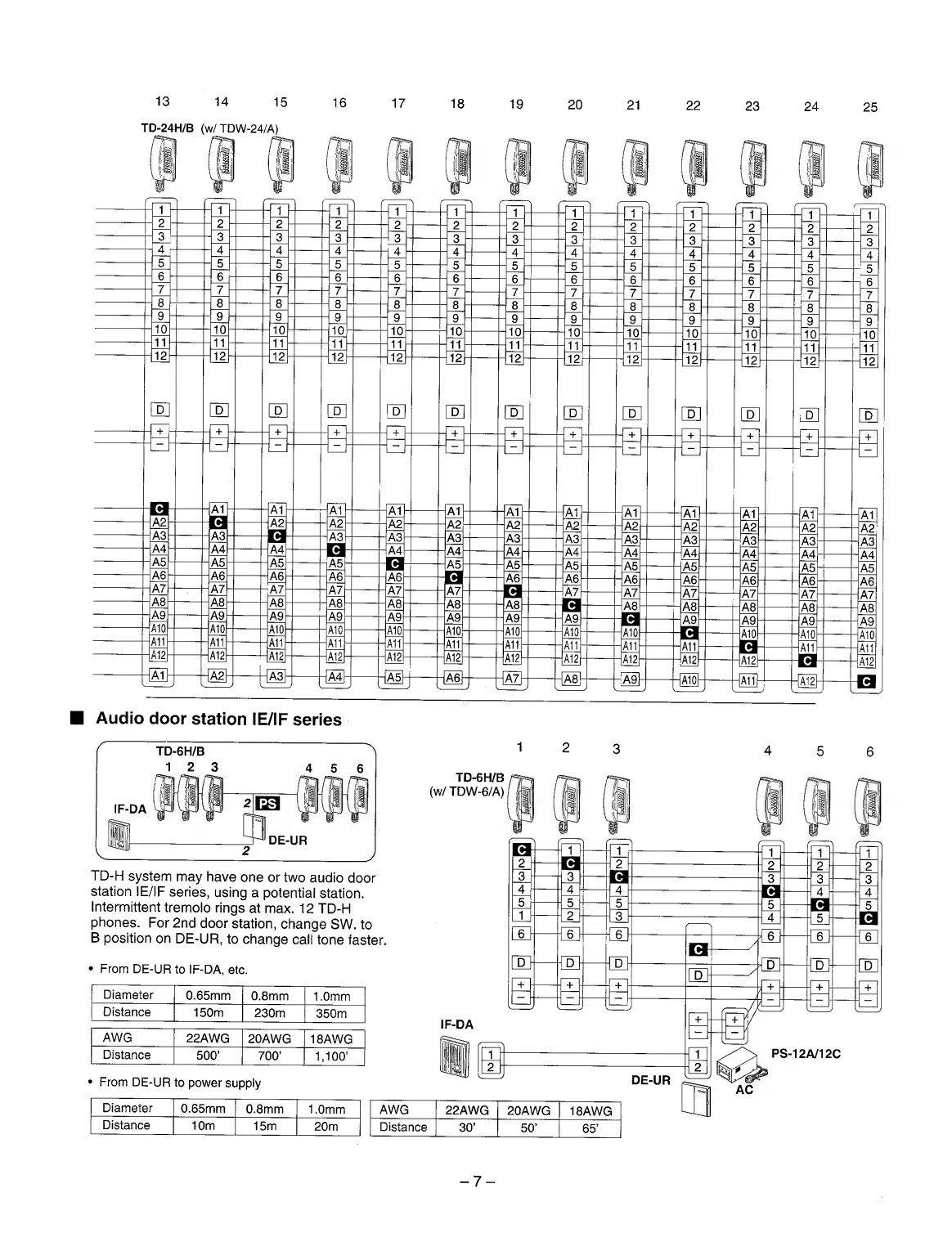

TD-24H/B
(w/TDW-24/A)
■
Audio
door
station
lE/IF
series
TD-H
system
may
have
one
or
two
audio
door
station
lE/IF
series,
using
a
potential
station.
Intermittent
tremolo
rings
at
max.
12
TD-H
phones.
For
2nd
door
station,
change
SW.
to
B
position
on
DE-UR,
to
change
call
tone
faster.
•
From
DE-UR
to
IF-DA,
etc.
Diameter
0.65mm
0.8mm
1.0mm
Distance
150m
230m
350m
AWG
22AWG
20AWG
18AWG
Distance
500’
700’
1,100’
•
From
DE-UR
to
power
supply
Diameter
0.65mm
0.8mm
1.0mm
Distance
10m
15m
20m
AWG
22AWG
20AWG
18AWG
Distance
30’
50’
65’
-
