Aiphone TD-H Series User Manual

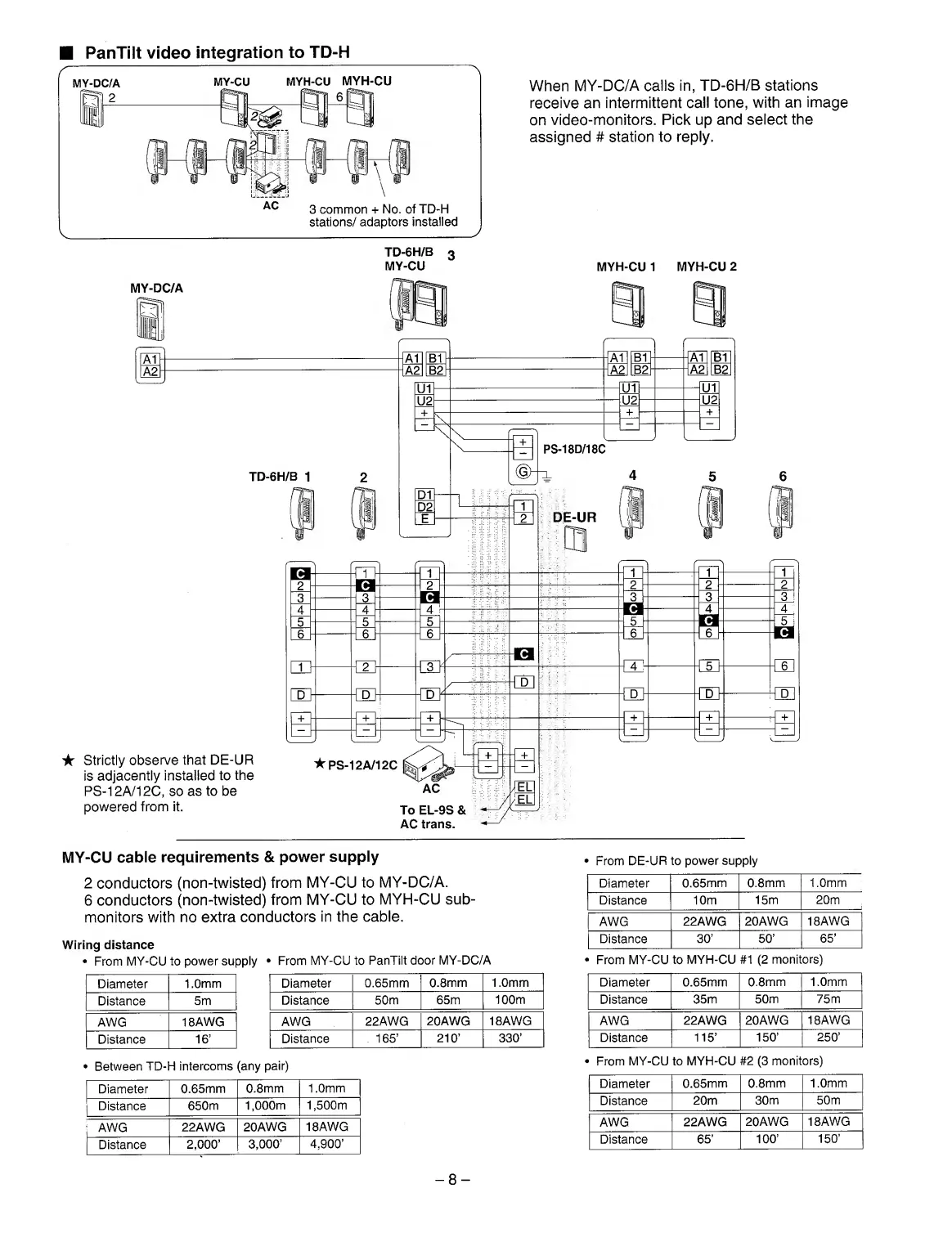

When MY-DC/A calls in, TD-6H/B stations
receive an intermittent call tone, with an image
on video-monitors. Pick up and seiect the
assigned # station to reply.
TD-6H/B 3
MY-CU MYH-CU1 MYH-CU 2
MY-CU cable requirements & power supply
2 conductors (non-twisted) from MY-CU to MY-DC/A.
6 conductors (non-twisted) from MY-CU to MYH-CU sub¬
monitors with no extra conductors in the cable.
Wiring distance
• From MY-CU to power supply • From MY-CU to PanTilt door MY-DC/A
Diameter 0.65mm
0.8mm 1.0mm
Distance
50m 65m
100m
AWG
22AWG 20AWG
18AWG
Distance
165’ 210’
330’
Diameter
1,0mm
Distance
5m
AWG
18AWG
Distance
16’
• Between TD-H intercoms (any pair)
Diameter
0.65mm
0.8mm
1.0mm
j Distance
650m 1,000m
1,500m
AWG
22AWG
20AWG
18AWG
Distance
2,000’
3,000’ 4,900’
• From DE-UR to power supply
Diameter
0.65mm 0.8mm 1.0mm
Distance 10m
15m 20m
AWG 22AWG
20AWG 18AWG
Distance
30’ 50’
65’
• From MY-CU to MYH-CU #1 (2 monitors)
Diameter 0.65mm
0.8mm 1.0mm
Distance
35m 50m
75m
AWG
22AWG
20AWG 18AWG
Distance 115’
150’ 250’
• From MY-CU to MYH-CU #2 (3 monitors)
Diameter
0.65mm 0.8mm 1.0mm
Distance
20m
30 m 50m
AWG
22AWG 20AWG
18AWG
Distance 65’
100’
150’
- 8 -
