Technical Manual : AIR 8-105.5
Ceiling Cassette

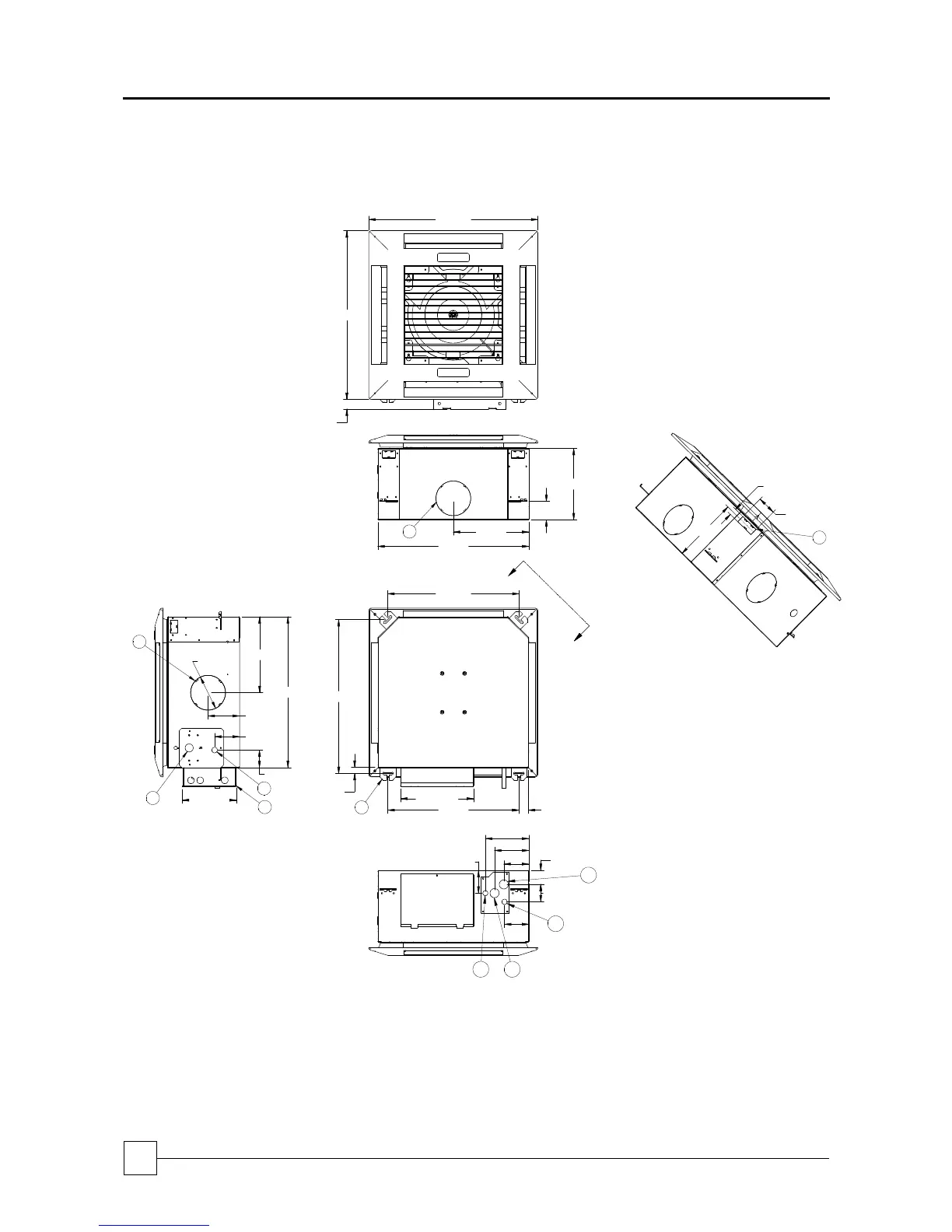

Figure 10.1 – Dimensions – Small Chassis
Model CCW2/8 and CCW2/12
25 3/16
25 3/16
1 11/16
22 1/2
11 1/4
2 3/4
10 11/16
19 9/16
19 1/2
12 9/16
1 7/16
22 15/16
7/8
22 1/2
8 13/16
11 5/16
4 11/16
3 11/16
2 5/8
O 5 3/16
6 1/2
5 1/8
3 3/4
2 1/16
2 5/8
A
A
VIEW A-A
9 13/16
1 1/8
2 3/4
5
7
8
9
5
10
6
1. CW Inlet
2. CW Outlet
3. HW Coil Inlet (Optional)
4. HW Coil Outlet (Optional)
5. Branch Duct Opening (x3)
6. Fresh Air Intake (x2)
7. Pump Inspection Port
8. Condensate Drain
9. Control Panel
10. Mounting Bracket
1 2
3
4
3 3/8
3 5/8
