The SLIMLINE PERFORMER Ceilin
g
Cassette
–
Ductless Mini-S
p
lit
Technical Manual : AIR 8-105.5
Ceiling Cassette

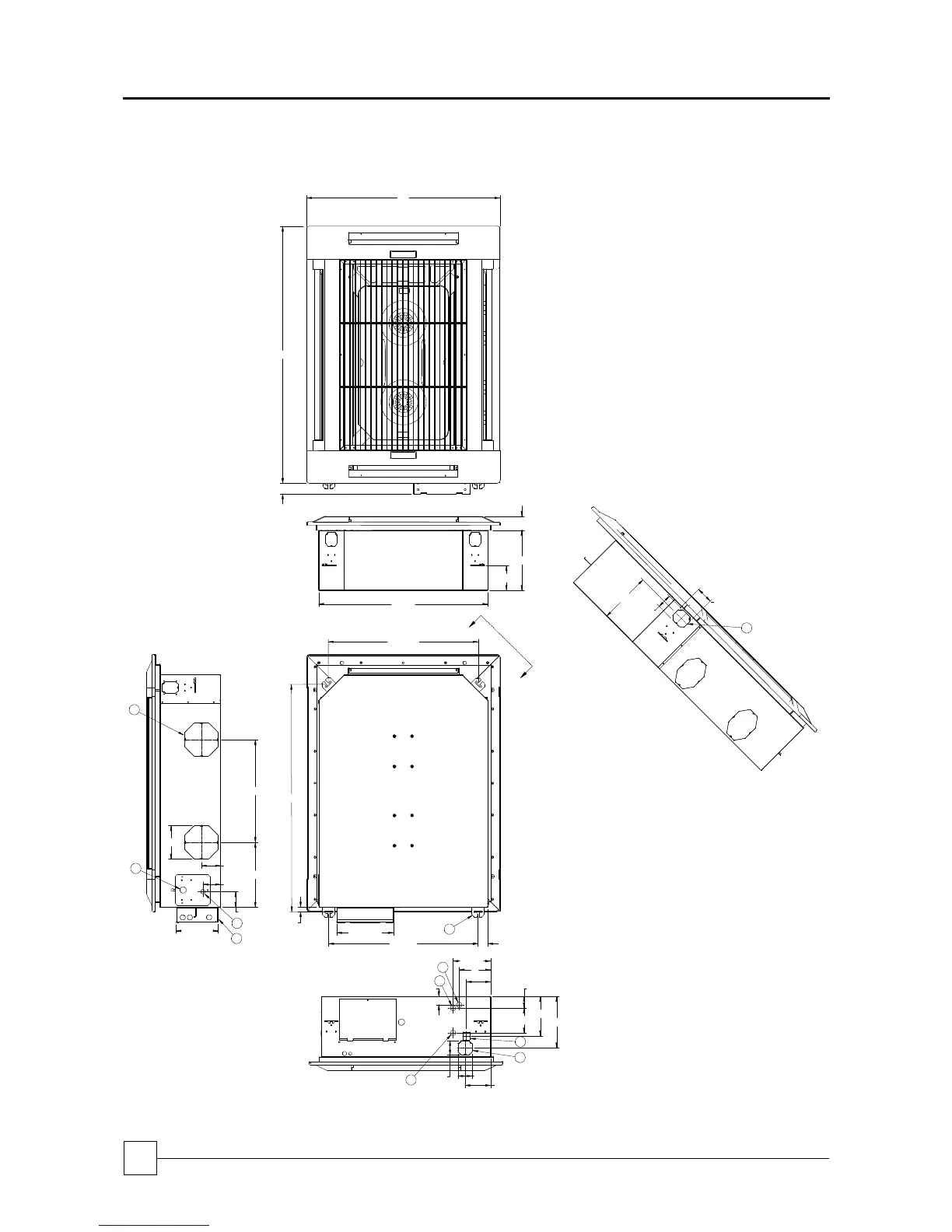

Figure 12.1 – Dimensions – Large Chassis
Model CCW 33 and CCW 36
A
A
VIEW A-A
49 3/16
37
2 1/4
32 3/8
4 3/4
11 1/2
2 5/8
28 11/16
12 9/16
28 9/16 1 7/8
43 1/2
7/8
8 13/16
19 5/8
12 7/16
6 3/8
3 5/8
3 3/8
3
6
4 5/8
7 3/16
2 3/16
4 3/4
7 9/16
9 13/16
1 5/8
4 7/8
2 3/4
2 3/4
3 1/8
9 13/16
2 3/4
5
10
2
5
4
3
1
6
7
9
8
1. CW Coil Inlet
2. CW Coil Outlet
3. HW Coil Inlet (Optional)
4. HW Coil Outlet (Optional)
5. Fresh Air Intake (x3)
6. Branch Duct Opening (x4)
7. Pump Inspection Port
8. Condensate Drain
9. Control Panel
