The SLIMLINE PERFORMER Ceilin
g
Cassette
–
Ductless Mini-S
p
lit
Technical Manual : AIR 8-105.5
Ceiling Cassette
49 3/16
1 1/8
37
4 3/4
2 5/8
11 1/2
32 3/8
28 11/16
12 9/16
28 9/16 1 7/8
9 13/16
2 3/4
4 13/16
2 3/4
6 3/8
6 3/8
4 3/8
3
15
15
3 1/8
2 3/4
9 13/16
VIEW A-A
A
A
8 13/16
2 7/8
2 7/8
4 7/8
6 5/16
4 7/16
2 7/8
3 1/2
4 7/8
6 7/16
1
2
3
4
9
7
8
6
10
5
5
43 1/2
44 7/16
1. DX Suction Line
2. DX Liquid Line
3. HW Coil Inlet (Optional)
4. HW Coil Outlet (Optional)
5. Fresh AIr Intake (x3)
6. Branch Duct Opening (x4)
7. Pump Inspection Port
8. Condensate Drain
9. Control Panel
10. Mounting Bracket

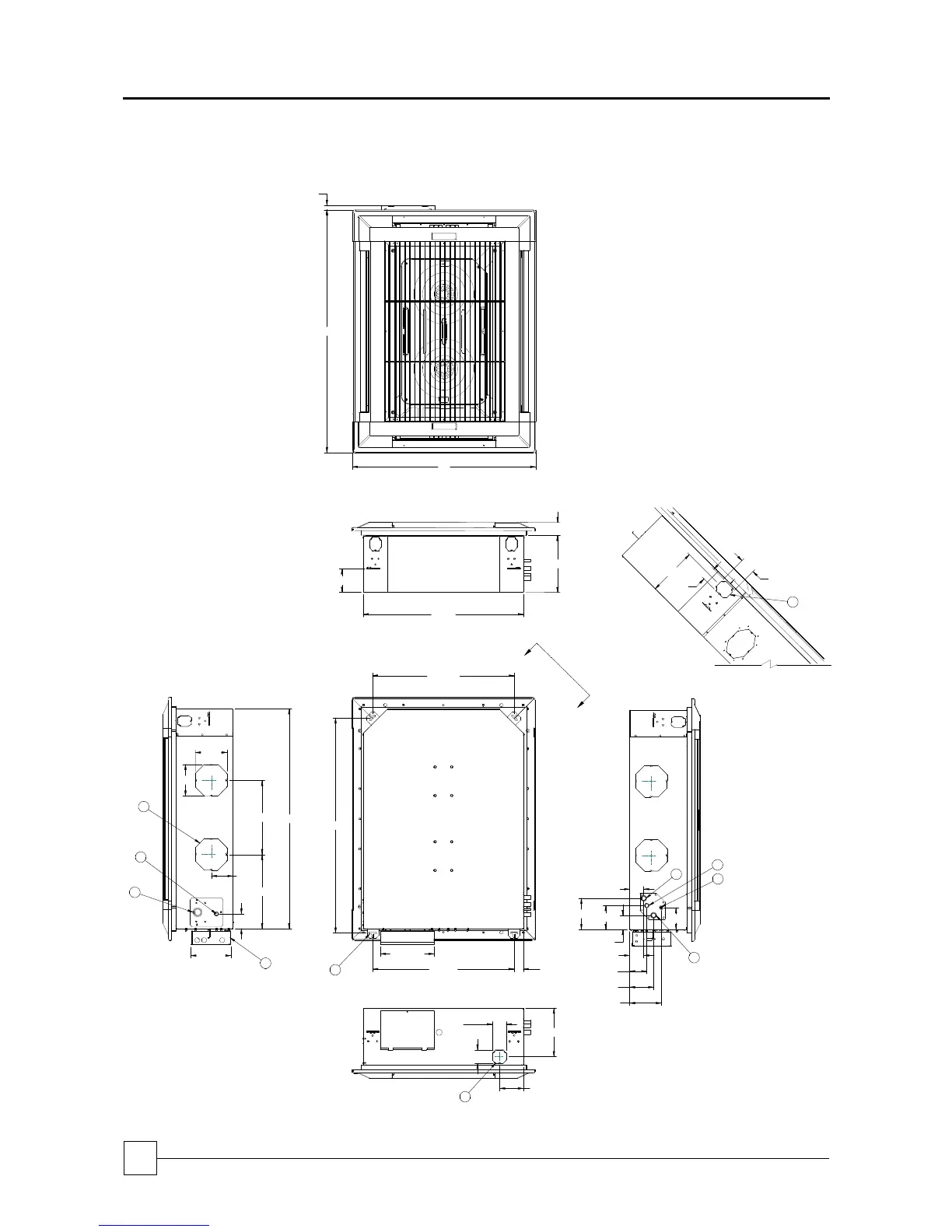

Figure 14.1 – Dimensions – Large Chassis
Model CSD/CSH 30, CSD/CSH 36 and CSD/CSH 42
