11

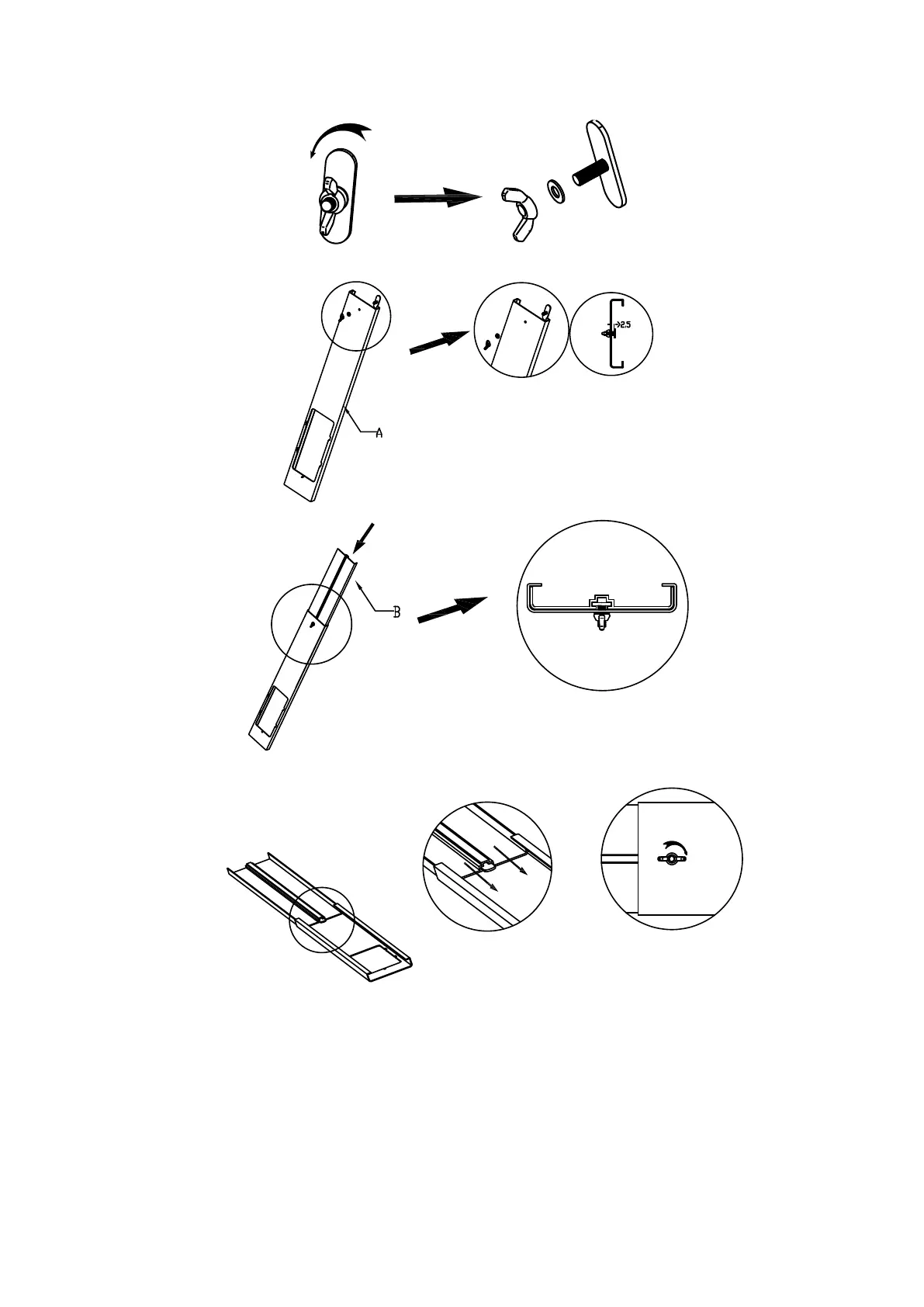

B. Take out the buerfly nut from the user manual’s bag, and disassemble the screws in the following direcons.
C. Lock the buerfly nut on panel A, and do not lock the buerfly nut ghtly, keeping the spacing of 2.5mm.
D. Connect with panel B, adjust the panel(s) to the width or height of the window as shown.
E. Fasten the buerfly nut to fix the window slide set.
STEP 5 - COMPLETE INSTALLATION
Close the window as far as the window slide set, so this covers the window opening completely. Place the device at least 50
cm away from walls and other objects.
