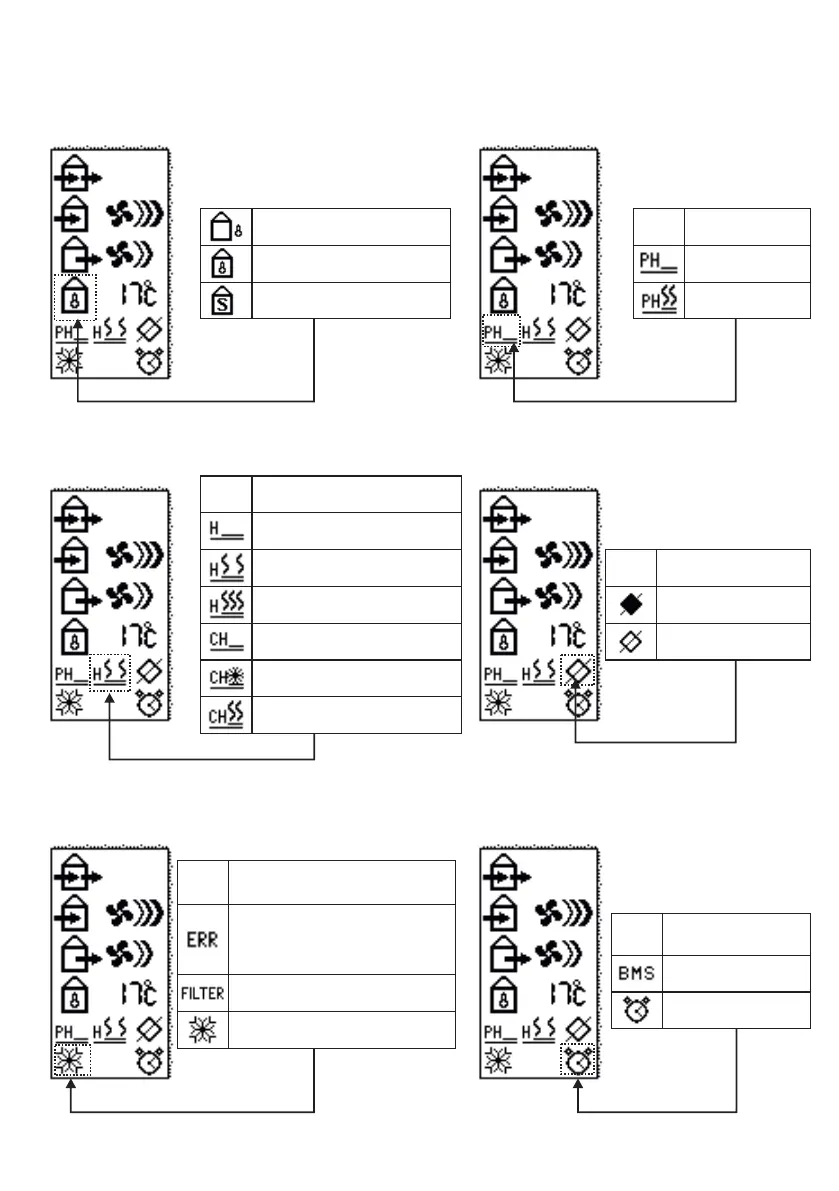

Outdoor air temperature
Indoor air temperature
Set temperature
There is no
pre-heater.
Pre-heater is off.
Pre-heater is on.
There is no heater.
Heater is off.
Heater is on at first stage.
Heater is on at first and
second stage.
There is water coil. It is off.
Cooling coil is on.
Heating coil is on.
No failure, freezing scenario
is off.
During a failure situation, the
code “ERR” and its code will
be seen on screen.
Filter dirty
Freezing scenario is on.
There is no by-pass.
By-pass is off.
By-pass is on.
BMS and TIMER
is not adjusted.
BMS is on.
TIMER is on.
9.2 Pro Panel Screen
