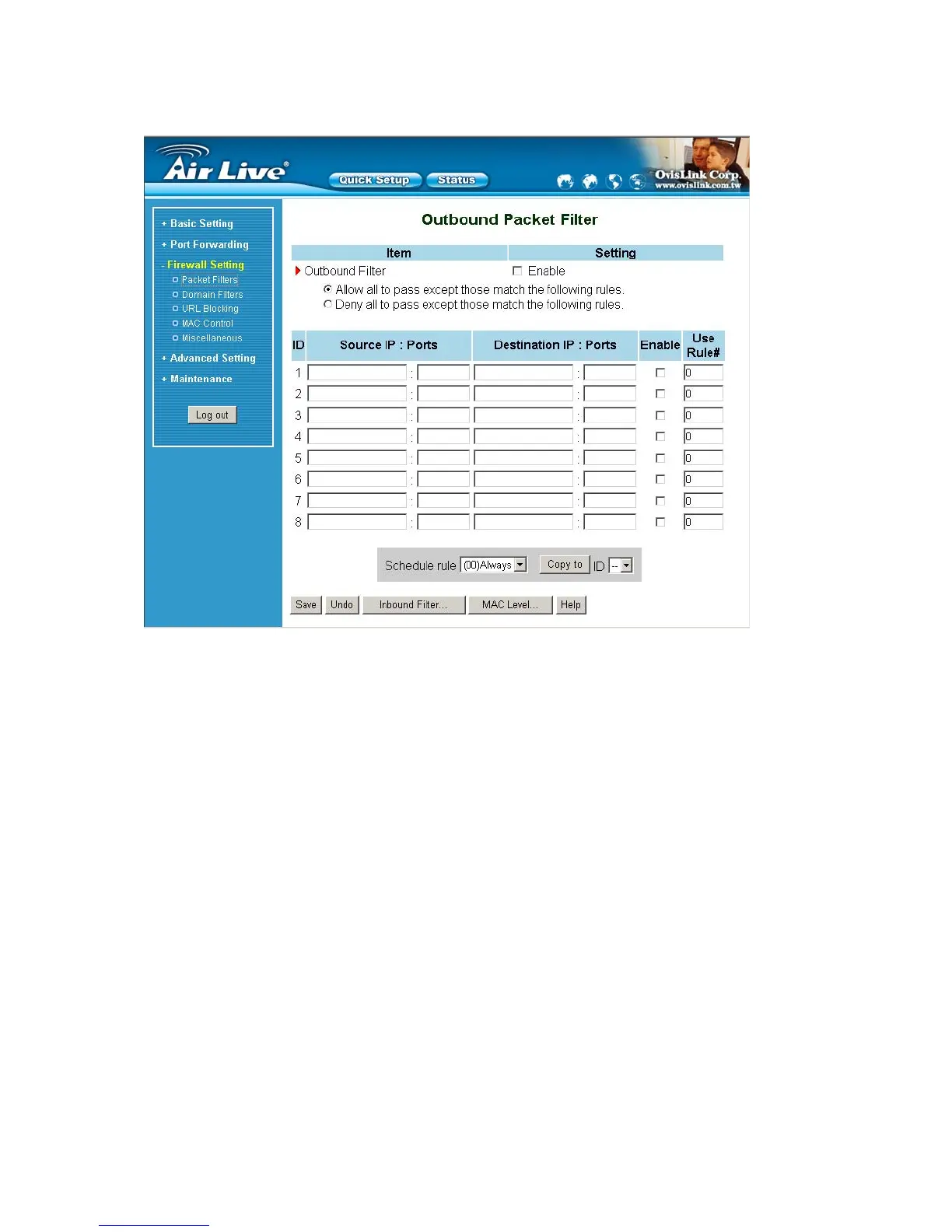

4.6.1 Packet Filter
Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all
outbound packets. However, Inbound filter applies on packets that destined to Virtual Servers or DMZ host only.
You can select one of the two filtering policies:
1. Allow all to pass except those match the specified rules
2. Deny all to pass except those match the specified rules
You can specify 8 rules for each direction: inbound or outbound. For each rule, you can define the following:
• Source IP address
• Source port address
• Destination IP address
• Destination port address
• Protocol: TCP or UDP or both.
• Use Rule#
For source or destination IP address, you can define a single IP address (4.3.2.1) or a range of IP addresses
(4.3.2.1-4.3.2.254). An empty implies all IP addresses.
AirLive WT-200R User’s Manual
35
