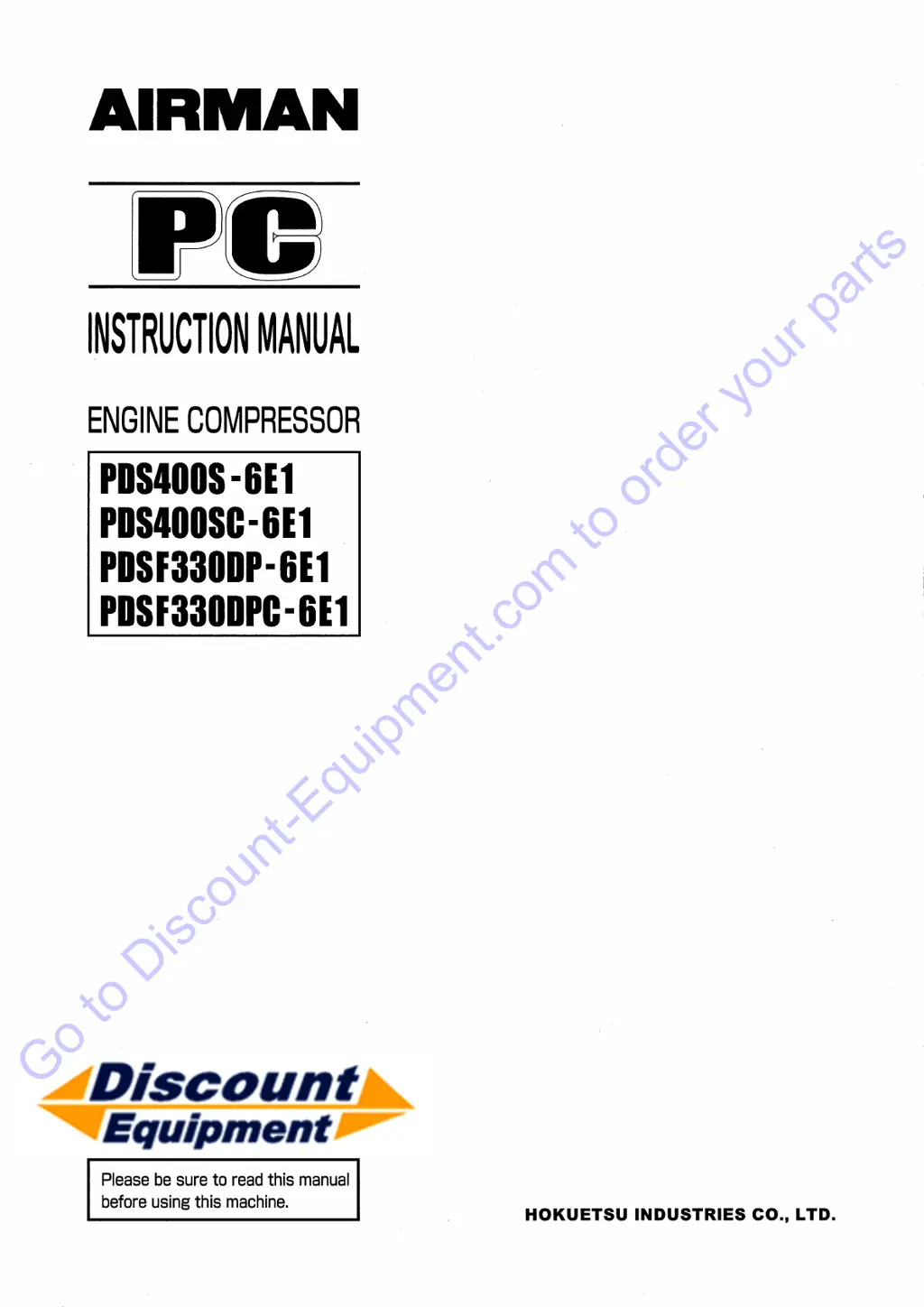

AirMan PDSF330DPC-6E1 - User Manual

AirMan PDSF330DPC-6E1
89 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
www.discount-equipment.com
Go to Discount-Equipment.com to order your parts

Table of Contents

Questions and Answers

  • R
    Ryan LeeAug 18, 2025
    What to do if the starter rotates normally but the engine of my AirMan PDSF330DPC-6E1 Air Compressor doesn't start?
    • R
      rivaspamelaAug 18, 2025
      If the starter of your AirMan Air Compressor rotates normally but the engine doesn't start, several issues could be the cause: * A clogged fuel filter, which requires disassembling, cleaning, and changing the filter. * A clogged fuel pre-filter, also requiring disassembly, cleaning, and changing. * Lack of fuel, indicating a need for fuel replenishment. * Air entry into the fuel line system, necessitating bleeding the air. * Nozzle clogging, which requires disassembly and cleaning.
  • K
    Kevin CruzAug 20, 2025
    Why is my AirMan Air Compressor showing a high water temp warning?
    • J
      julia20Aug 21, 2025
      A high water temperature warning or shutdown in your AirMan Air Compressor can stem from several causes: * Radiator clogging: Clean the radiator. * Faulty thermostat: Replace the thermostat. * Faulty coolant temperature sensor: Replace the sensor. * Low coolant level: Replenish the coolant. * Belt slippage: Readjust the belt tension. * Loose wiring, connectors, or disconnection: Check and fasten the wiring and connectors.
  • D
    derrickbarrettAug 23, 2025
    What causes an abnormal engine oil pressure indication and engine stop in my AirMan PDSF330DPC-6E1?
    • G
      gchapmanAug 23, 2025
      If your AirMan Air Compressor indicates abnormal engine oil pressure and the engine stops, consider these possible causes: * Engine oil shortage: Replenish the oil. * Engine oil filter clogging: Change the filter. * Faulty oil pressure sensor: Replace the sensor. * Loose wiring, connectors, or disconnection: Check and fasten them.
  • A
    Andrea OconnorAug 26, 2025
    Why is there insufficient free air delivery from my AirMan PDSF330DPC-6E1?
    • B
      Brian KirkAug 26, 2025
      Insufficient free air delivery in your AirMan Air Compressor may be due to: * Air filter element clogging: Clean or change the element. * Unloader valve not fully opening: Call your nearest dealer. * Engine not reaching rated speed: Call your nearest dealer.
  • B
    benjamin09Aug 27, 2025
    What to do if my AirMan PDSF330DPC-6E1 engine does not reach the rated revolution speed?
    • T
      Tamara OliverAug 27, 2025
      If the engine of your AirMan Air Compressor doesn't reach the rated revolution speed, it could be due to: * A faulty engine controller: Call your nearest dealer. * Clogging of the unloader orifice: Disassemble and clean it. * Trouble with the emergency controller: Call your nearest dealer. * Engine trouble: Call your nearest dealer. * Fuel filter clogging: Disassemble and change it.
  • B
    Benjamin LopezAug 30, 2025
    Why does my AirMan Air Compressor indicate that the engine speed is abnormally low and then stops?
    • T
      Teresa HoltAug 30, 2025
      If the engine speed down is abnormal and the engine stops in your AirMan Air Compressor, it could be due to: * Malfunction controller: Change it. * Loose wiring connectors and disconnection: Check and retighten. * Shortage of feeding fuel caused due to fuel filter and feed pump strainer clogging: Replace filter and/or clean the strainer. * Air mixed in fuel line system: Bleed the air. * Output reduction due to clogged engine air filter: Clean and/or replace air filter.
  • S
    simmonscharlesSep 1, 2025
    What causes a high separator temperature shutdown in my AirMan PDSF330DPC-6E1 Air Compressor?
    • K
      keith12Sep 1, 2025
      A high separator temperature shutdown in your AirMan Air Compressor can be caused by: * Oil cooler clogging: Clean the oil cooler. * Oil filter clogging: Change the oil filter. * A defective discharge air temperature sensor: Disassemble and check the sensor. * Loosened or disconnected wiring or connector: Check and fasten the wiring. * Belt slippage: Readjust the belt tension. * Shortage of compressor oil: Replenish the oil. * Malfunction of by-pass valve: Check and change the valve. * Discharge air temperature sensor is disconnected: Repair/Change. * Separator clogging (Separator outlet air temperature alarm. Displayed only during irregular conditions.): Change.
  • A
    Amanda TuckerSep 3, 2025
    Why is oil mixing in the air of my AirMan PDSF330DPC-6E1 Air Compressor?
    • O
      Olivia MarshallSep 3, 2025
      If oil mixes with the air in your AirMan Air Compressor (poor oil separation), possible causes include: * Scavenging orifice strainer clogging: Disassemble and clean it. * Excessive oil in the separator receiver tank: Drain it to the proper level. * Low discharge pressure: Disassemble and check the pressure control valve. * Oil separator deterioration: Check and change it if needed.
  • A
    angela94Sep 6, 2025
    Why does my AirMan PDSF330DPC-6E1 have a low starter revolution speed?
    • J
      Jason NguyenSep 6, 2025
      A low starter revolution speed in your AirMan Air Compressor can be attributed to: * A faulty battery: Check the battery. * Failure of battery charging: Charge the battery. * Failure of the alternator: Replace the alternator. * Failure of the starter: Replace the starter.
  • H
    henryjensenSep 8, 2025
    What to do if the discharge air pressure of my AirMan Air Compressor will not rise?
    • G
      ggrahamSep 8, 2025
      If the discharge air pressure of your AirMan Air Compressor will not rise, it may be due to: * Pressure regulator insufficient adjustment: Readjust (Fasten). * Trouble of solenoid valve for starting unloader: Change the valve.

Summary

Instruction Manual

Parts Finder

Part Names

Installation

Operation

Instrument Panel Overview

Lubricating oil, Coolant, Fuel, DEF

Details on recommended fluids and their specifications.

Lubricating Oil Specifications

Recommended engine oil classification and viscosity.

Check before starting unit

Pre-operation checks to ensure safe and proper function.

Compressor Oil Recommendations

Approved brands and types of compressor oil.

Operating Procedure

Step-by-step guide for starting and running the machine.

Coolant Specifications

Coolant mixing ratios and types for temperature control.

Fuel Specifications

Requirements for diesel fuel quality and type.

DEF Handling and Storage

Pre-Starting Checks

Procedures for checking engine oil, coolant, fuel, DEF, and other systems.

Emergency Stop

Procedures for emergency shutdown and reset.

Operating Procedures

Step-by-step guide for starting, warm-up, and operating the unit.

Selecting Operating Pressure

Adjusting the machine's operating pressure settings.

Activating Air Boosting Mode

Engine Start Failure & Cold Weather Operation

Engine start failure steps and cold weather operation precautions.

Displays During Operation

Stopping Procedure & Fuel Line Air Bleeding

Procedures for stopping the unit and bleeding air from the fuel line.

Timing and Temperature Adjustment

Maintenance Schedule Settings

DPF Regeneration Procedures

Understanding and performing DPF regeneration processes.

Manual Regeneration Procedure

Step-by-step guide for manual DPF regeneration.

Emergency Stopping Procedures

Immediate actions for emergency shutdown.

Resetting the Emergency Stop Button

Failure cause and measures

Warning; Emergency display

Understanding and responding to system alerts and warnings.

Warning; Emergency Display

Troubleshooting

Identifying and resolving common machine problems.

Indicator Lamps and Warning Displays

Emergency Display Codes

SCR System Inducement

Troubleshooting Compressor Issues

Diagnosing and resolving common compressor operational problems.

Troubleshooting Other Failures

Diagnosing and resolving other common machine failures.

Periodic Inspection;Maintenance

Periodic Inspection List

Schedule and tasks for routine maintenance checks.

Periodic Replacement of Parts

Periodic Inspection List

Comprehensive schedule of maintenance tasks and intervals.

Maintenance Items

Engine Related Maintenance

Maintenance tasks specific to the engine system.

Periodic Replacement of Parts

Part numbers and schedule for component replacement.

Engine Oil Maintenance

Procedure for changing the engine oil and filter.

Battery Maintenance and Electrolyte Checks

Air Filter Element Maintenance

Compressor Oil and Filter Maintenance

Procedure for changing compressor oil and filter.

Air Filter Element Replacement

Fuel System Maintenance

Coolant Change and Safety

Procedure for changing engine coolant and associated safety precautions.

Oil Separator Replacement

Procedure for replacing the oil separator element and gaskets.

Pressure Control Valve and Wiring Harness Maintenance

Specifications

PDS400 Series Specifications

Detailed technical specifications for the PDS400S-6E1 model.

PDSF330 Series Specifications

Detailed technical specifications for the PDSF330DP/DPC-6E1 models.
