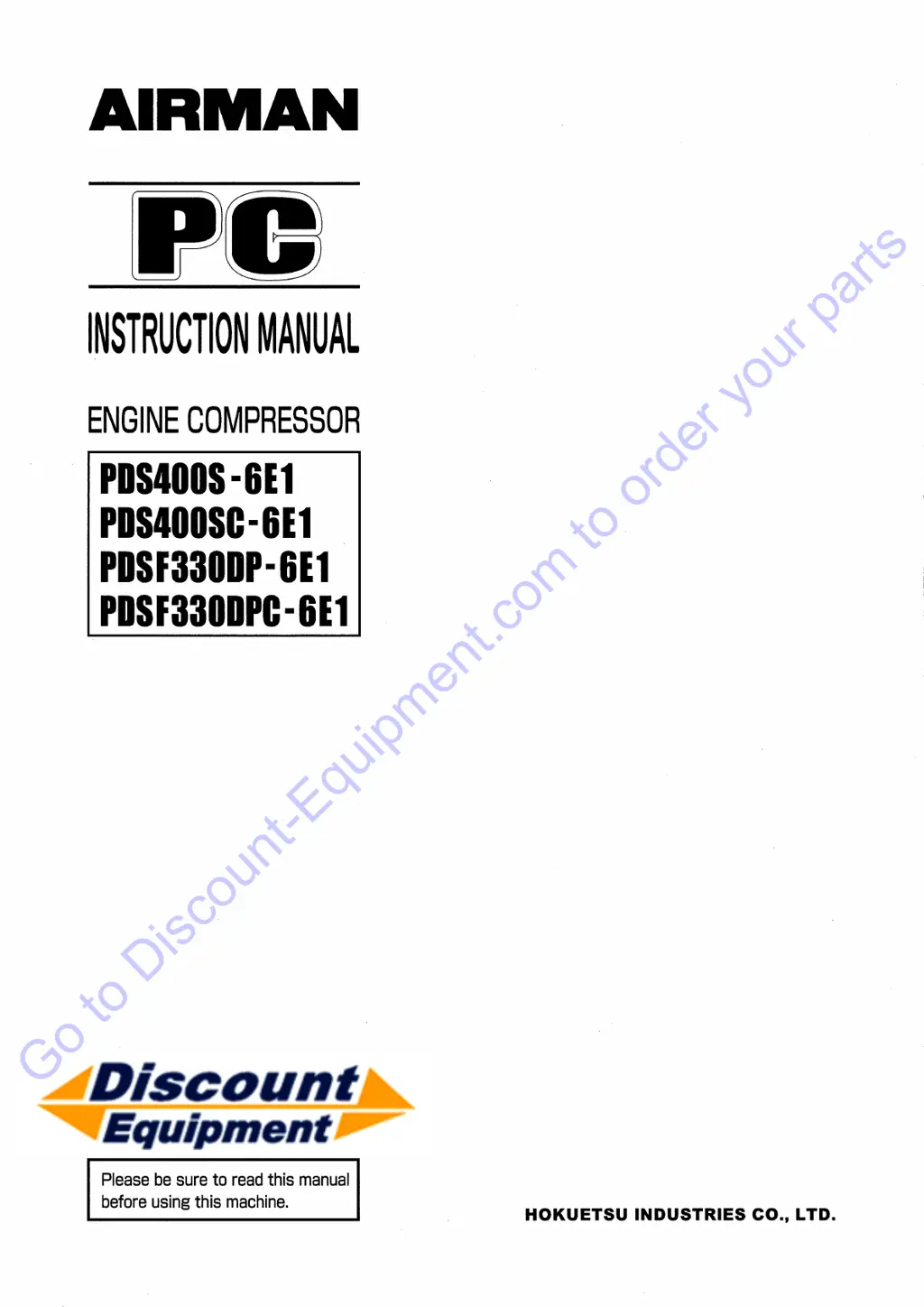

AirMan PDSF330DP-6E1 User Manual (English)

Questions and Answers:

D
dmendozaAug 21, 2025
Why is my AirMan Air Compressor showing a high water temp warning?
- A
  Amanda WolfeAug 21, 2025
  A high water temperature warning or shutdown in your AirMan Air Compressor can stem from several causes: * Radiator clogging: Clean the radiator. * Faulty thermostat: Replace the thermostat. * Faulty coolant temperature sensor: Replace the sensor. * Low coolant level: Replenish the coolant. * Belt slippage: Readjust the belt tension. * Loose wiring, connectors, or disconnection: Check and fasten the wiring and connectors.
H
hrodriguezAug 25, 2025
What causes an abnormal engine oil pressure indication and engine stop in my AirMan PDSF330DP-6E1 Air Compressor?
- E
  Edward RasmussenAug 25, 2025
  If your AirMan Air Compressor indicates abnormal engine oil pressure and the engine stops, consider these possible causes: * Engine oil shortage: Replenish the oil. * Engine oil filter clogging: Change the filter. * Faulty oil pressure sensor: Replace the sensor. * Loose wiring, connectors, or disconnection: Check and fasten them.
M
Melissa KingAug 26, 2025
Why is there insufficient free air delivery from my AirMan PDSF330DP-6E1 Air Compressor?
- K
  Katrina WintersAug 26, 2025
  Insufficient free air delivery in your AirMan Air Compressor may be due to: * Air filter element clogging: Clean or change the element. * Unloader valve not fully opening: Call your nearest dealer. * Engine not reaching rated speed: Call your nearest dealer.
N
Nicholas RamirezAug 28, 2025
What to do if my AirMan Air Compressor engine does not reach the rated revolution speed?
- T
  Tiffany EstradaAug 28, 2025
  If the engine of your AirMan Air Compressor doesn't reach the rated revolution speed, it could be due to: * A faulty engine controller: Call your nearest dealer. * Clogging of the unloader orifice: Disassemble and clean it. * Trouble with the emergency controller: Call your nearest dealer. * Engine trouble: Call your nearest dealer. * Fuel filter clogging: Disassemble and change it.
S
Shawna MckenzieAug 30, 2025
Why does my AirMan PDSF330DP-6E1 Air Compressor indicate that the engine speed is abnormally low and then stops?
- J
  Jennifer HooverAug 30, 2025
  If the engine speed down is abnormal and the engine stops in your AirMan Air Compressor, it could be due to: * Malfunction controller: Change it. * Loose wiring connectors and disconnection: Check and retighten. * Shortage of feeding fuel caused due to fuel filter and feed pump strainer clogging: Replace filter and/or clean the strainer. * Air mixed in fuel line system: Bleed the air. * Output reduction due to clogged engine air filter: Clean and/or replace air filter.
N
Nathan KnightSep 1, 2025
What causes a high separator temperature shutdown in my AirMan PDSF330DP-6E1 Air Compressor?
- A
  Amber HallSep 1, 2025
  A high separator temperature shutdown in your AirMan Air Compressor can be caused by: * Oil cooler clogging: Clean the oil cooler. * Oil filter clogging: Change the oil filter. * A defective discharge air temperature sensor: Disassemble and check the sensor. * Loosened or disconnected wiring or connector: Check and fasten the wiring. * Belt slippage: Readjust the belt tension. * Shortage of compressor oil: Replenish the oil. * Malfunction of by-pass valve: Check and change the valve. * Discharge air temperature sensor is disconnected: Repair/Change. * Separator clogging (Separator outlet air temperature alarm. Displayed only during irregular conditions.): Change.
J
jacksonmarySep 4, 2025
Why is oil mixing in the air of my AirMan PDSF330DP-6E1 Air Compressor?
- R
  Rebecca JohnsonSep 4, 2025
  If oil mixes with the air in your AirMan Air Compressor (poor oil separation), possible causes include: * Scavenging orifice strainer clogging: Disassemble and clean it. * Excessive oil in the separator receiver tank: Drain it to the proper level. * Low discharge pressure: Disassemble and check the pressure control valve. * Oil separator deterioration: Check and change it if needed.
T
Timothy SnyderSep 6, 2025
Why does my AirMan PDSF330DP-6E1 Air Compressor have a low starter revolution speed?
- K
  Kerry CampbellSep 7, 2025
  A low starter revolution speed in your AirMan Air Compressor can be attributed to: * A faulty battery: Check the battery. * Failure of battery charging: Charge the battery. * Failure of the alternator: Replace the alternator. * Failure of the starter: Replace the starter.
T
Taylor FarrellSep 8, 2025
What to do if the discharge air pressure of my AirMan Air Compressor will not rise?
- A
  Angel SantanaSep 9, 2025
  If the discharge air pressure of your AirMan Air Compressor will not rise, it may be due to: * Pressure regulator insufficient adjustment: Readjust (Fasten). * Trouble of solenoid valve for starting unloader: Change the valve.
L
Larry LoveAug 19, 2025
What to do if the starter rotates normally but the engine of my AirMan PDSF330DP-6E1 Air Compressor doesn't start?

AirMan PDSF330DP-6E1 Specifications

General

Brand	AirMan
Model	PDSF330DP-6E1
Category	Air Compressor
Language	English

Summary

Safety Precautions

Understanding Hazard Levels

Explanation of DANGER, WARNING, CAUTION, and IMPORTANT safety levels.

Proposition 65 Warning

Warning regarding engine exhaust chemicals and reproductive harm.

Safety Warning Labels Explained

Details and explanations of various safety warning labels attached to the machine.

Compressed Air Safety

Precautions regarding poisonous materials in compressed air and its uses.

Machine Installation and Setup

Transportation and Lifting

Procedures and safety for transporting and lifting the machine.

Exhaust Gas Safety Precautions

Safety measures for handling engine exhaust gas in various locations.

Machine Operation Guide

Instrument Panel Overview

Description of the operation panel displays and controls.

Control Panel Button Functions

Explanation of the Pressure Selector, Start, and Control Power buttons.

Engine Oil Specifications

Recommended engine oil classification and viscosity based on ambient temperature.

Compressor Oil Recommendations

Recommended compressor oil brands and precautions against mixing.

Coolant Mixing Ratio and Safety

Guidelines for coolant mixing, usage, and disposal.

Fuel Specifications and Handling

Required fuel quality and safe handling practices for diesel fuel.

DEF Usage and Storage

Guidelines for using, storing, and handling DEF (AdBlue).

Engine Oil Level Check

Procedure for checking and topping up engine oil level.

Coolant Level Check and Safety

Procedure for checking coolant level and safety precautions when removing cap.

Compressor Oil Level Check

Procedure for checking and filling compressor oil.

Fuel Level Check and Refilling Safety

Procedure for checking fuel level and safe refilling practices.

Starting Unit Procedure

Step-by-step guide for starting the engine and unit operation.

Selecting Operating Pressure

How to select operating pressure (100PSI or 150PSI) using the switch.

Engine Start-up Failure Procedures

Troubleshooting steps when the engine fails to start on the first attempt.

Stopping the Machine Procedure

DPF Regeneration Process

Explanation of the engine sound and exhaust during DPF regeneration.

Manual DPF Regeneration

Procedure for performing manual regeneration and safety warnings.

Emergency Stop Procedure

Steps for initiating an emergency stop of the machine.

Resetting the Emergency Stop Button

Troubleshooting and Error Displays

Alarm and Fault Indicators

Compressor Error Display

Engine Error Display

Indicator Lamps and Warning Displays

Emergency Stop Displays

SCR System Error Inducement

Compressor Troubleshooting

Diagnosing and fixing common compressor operational problems.

Low Starter Speed and No Start Issues

Diagnosing and fixing issues like low starter speed and engine not starting.

Pressure and RPM Issues

Troubleshooting pressure buildup, RPM drop, and unload issues.

Oil and Water Contamination Issues

Diagnosing and fixing oil in air and water mixed in air problems.

Air Delivery and Temperature Problems

Troubleshooting insufficient air delivery, high water temp, and high separator temp.

Engine Speed and Fuel Delivery Issues

Troubleshooting engine speed issues and fuel delivery problems.

Periodic Maintenance Schedule

Key Inspection and Maintenance Items

Oil Separator Fire Prevention

Compressor Maintenance Checklist

Detailed list of compressor maintenance tasks and intervals.

Engine Related Maintenance Checklist

Detailed list of engine related maintenance tasks and intervals.

Periodic Replacement of Parts

Engine Oil Change Procedure

Procedure and safety for changing engine oil at specified intervals.

Engine Oil Filter Element Change

Procedure for changing the engine oil filter element.

Battery Electrolyte Checks

Battery Maintenance and Safety

Air Filter Element Cleaning

Compressor Oil Change Procedure

Procedure for changing compressor oil and safety advice.

Compressor Oil Filter Element Change

Procedure for changing the compressor oil filter element.

Air Filter Element Replacement

Coolant Change Procedure

Procedure and safety for changing the coolant.

Oil Separator Replacement Procedure

Procedure for replacing the oil separator and gaskets.

Pressure Control Valve Performance Check

Pressure Control Valve O-ring and Piston Check

Machine Specifications

Compressor Specifications

Technical specifications for the compressor unit (PDS400S-6E1).

Engine Specifications

Technical specifications for the KUBOTA engine.

Compressor and Engine Specs (PDSF330 Series)

Technical specifications for PDSF330DP/DPC-6E1 models.

Outline Drawing (PDS400 Series)

Outline Drawing (After-cooler Types)

Electrical Wiring Diagram

Compression Air and Oil Piping Diagram

Fuel Piping Diagram

Related product manuals

AirMan PDSF330DPC-6E1

AirMan PDSF330DP-6E1 User Manual
