6.2.1 Fold-down rails
The machines is fitted with rails folding down to the inside of the platform. Folding down the rails it is possible to reduce the
height of the machine for:
- carriage;
- transit through doors.

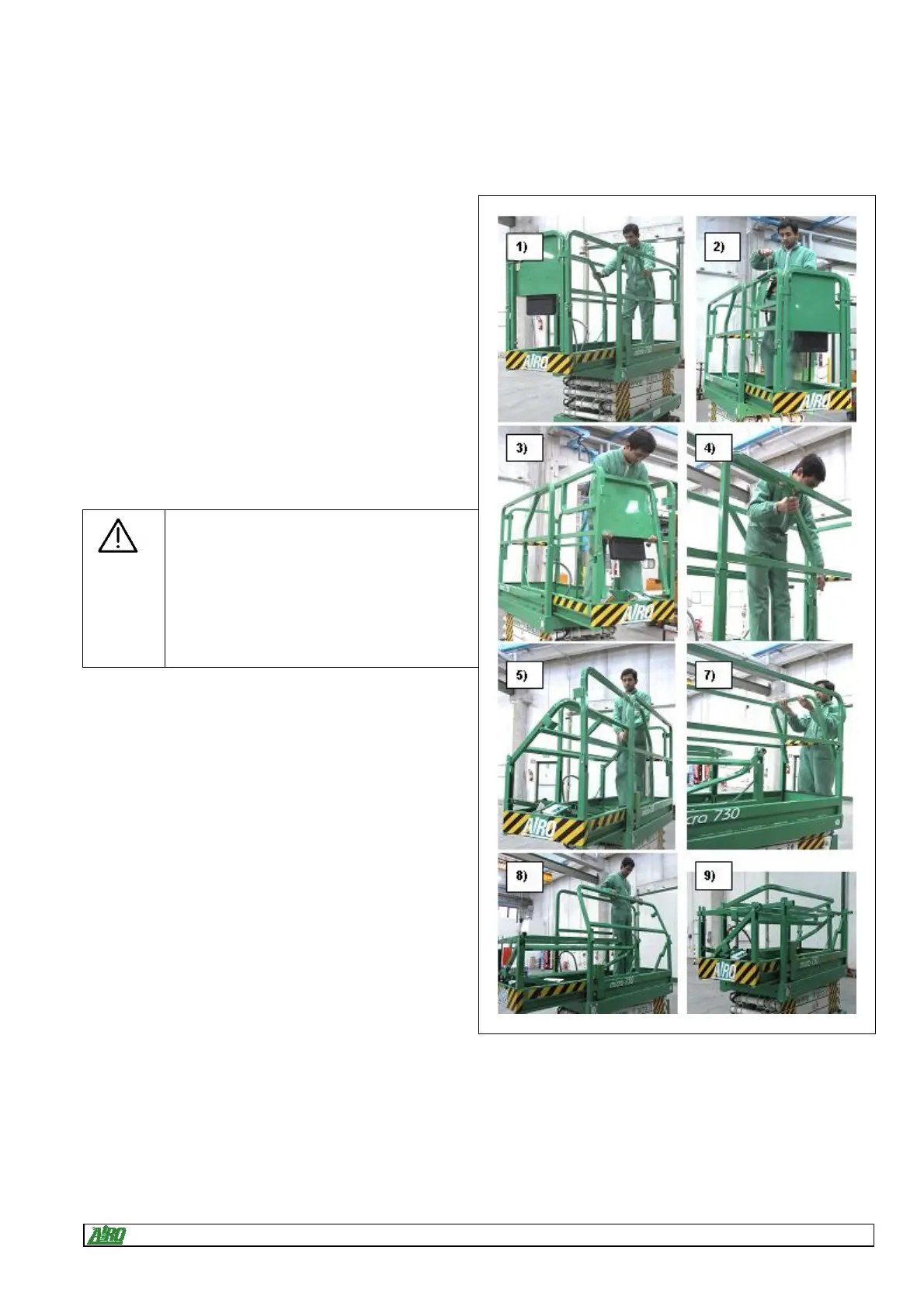

To fold down the rails:
1) extract the mobile platform and lock it in the
indicated position;
2) remove the control panel;
3) raise and turn the front rail to the inside;
4) remove the locking pins of one of the two side sliding
rails;
5) turn to the inside and press downwards the side
sliding rail;
6) repeat operations 4 and 5 for the other side sliding
rail;
7) raise and turn the entrance rail to the inside;
8) lift and turn the two side fixed rails to the inside;
9) to reduce the length of the machine retract the
mobile platform and lock it in the indicated position.
WARNING!!
This operation is only for reducing the height
of the stowed machine to facilitate carrying
operations.
IT IS ABSOLUTELY FORBIDDEN to lift the
platform when personnel is on board if rails
are not raised and locked by their relevant
locking pins.
Fig.14
