General Information
Flying Cloud 3-9

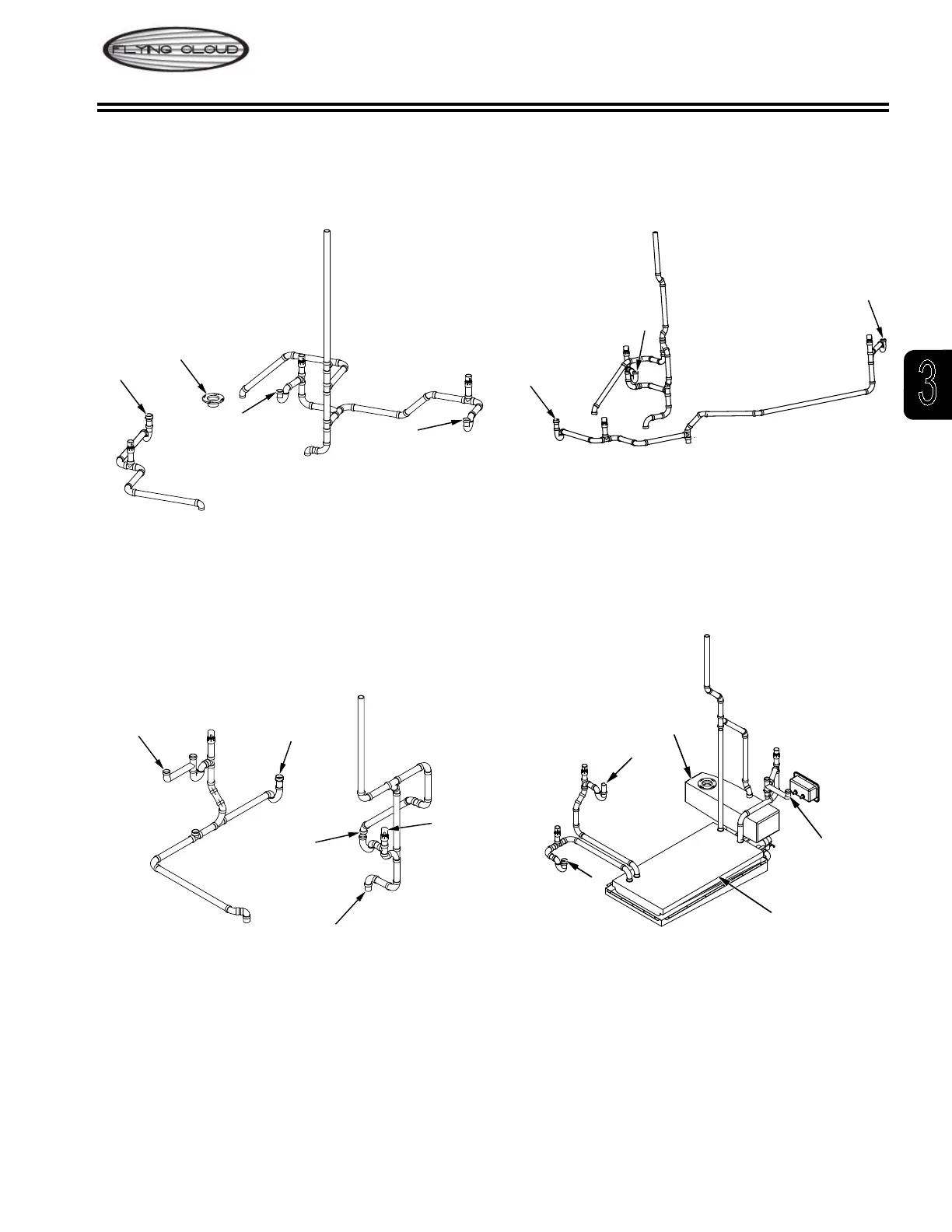

Waste Water System
19-ft. Model
1
4
3
2
1. Lavatory Drain
2. Black WaterTank (Toilet)
3. Galley Drain
4. Gray Water Tank
20-ft. Model
1
4
3
5
2
1. Lavatory Drain
2. Black WaterTank (Toilet)
3. Galley Drain
4. Gray Water Tank
5. Shower Drain
23D-ft. Model
1
3
2
1. Lavatory Drain
2. Black WaterTank (Toilet)
3. Galley Drain
23FB-ft. Model
1
5
4
3
2
1. Lavatory Drain
2. Black WaterTank (Toilet)
3. Galley Drain
4. Gray Water Tank
5. Shower Drain
