6200 Digital Broadcast Delay

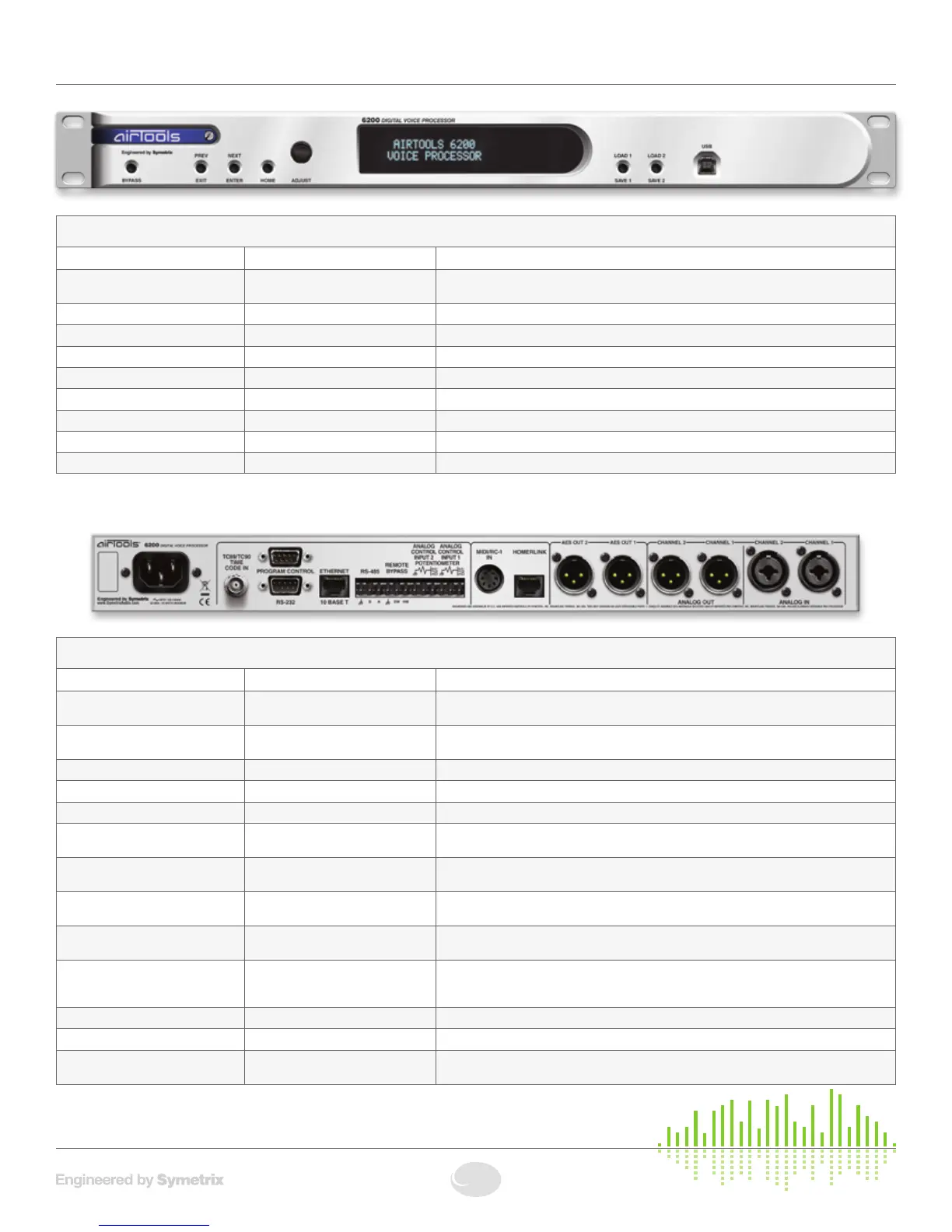

Front and Rear Panel
FRONT PANEL
ITEM DESCRIPTION DETAILS
BYPASS Momentarybutton Toggles DSP bypass state on top level menus. Toggles DSP module bypass state on indi-
vidual DSP module menus.
PREV / EXIT Momentarybutton Movestothepreviousmenuitemorexitstothetopofthemenutree.
NEXT / ENTER Momentarybutton Movestothenextmenuitemorentersamenutree.
HOME Momentarybutton Returnstothe“HOME”top-levelmenu.
ADJUST Continuous rotary encoder Selects the menu to enter or adjusts the currently selected parameter or menu item.
DISPLAY Monochrome Displays status, menu or configuration information.
LOAD 1 / SAVE 1 Momentarybutton Loads or saves a program for channel 1.
LOAD 2 / SAVE 2 Momentarybutton Loads or saves a program for channel 2.
USB Female “B” USB 1.1 port Optional connection to a Windows™ PC for 6200 Designer GUI control.
REAR PANEL
ITEM DESCRIPTION DETAILS
POWER INPUT IEC3prongjack Accepts power from detachable IEC power cable (100-240 VAC, 50-60 Hz, 60 Watts max).
Connect only to a grounded power outlet.
TC89/TC90 TIME CODE IN FemaleBNC Accepts(ESE)TC89orTC90timecodetodrivethereal-timeclockandEventManager.
Format and presence is automatically detected.
PROGRAM CONTROL MaleDB9 Simple program recall interface.
RS-232 FemaleDB9 Optional serial communications interface for 6200 Designer on the host PC.
ETHERNET (10 Base T) RJ-45 Optional Ethernet communications interface for 6200 Designer on the host PC.
RS-485 Euroblock Optional long distance serial communications interface for 6200 Designer on the host PC.
Thirdparty232/422/485converterproductsmayberequiredtoutilizethisport.
REMOTE BYPASS Euroblock Allows remote software (DSP) bypass or output muting (output disconnect via relays) with
simple contact closures.
ANALOG CONTROL Euroblocks Allowsreal-timecontrolofuptotwoparametersperportusingstandard10kOhmINPUT1
and 2 linear potentiometers.
MIDI/RC-1 IN 7pinDIN AcceptsMIDIprogramchangemessagestorecallprogramsforchannels1and2.Canalso
be used with the AirTools RC-1 remote directly. The RC-1 can also be powered from this port.
HOMERLINK RJ-45 Transmits4AES-3monochannelsandreceives2AES-3monochannelsoverstandardCAT-
5. Used for AES digital input, to sync to an external AES clock source or to integrate with the
AirToolsStudioMatrixsystem.
AES OUT 1 and 2 MaleXLR AES-3digitaloutput-softwareselectabletocarryChannel1/2,1/1,2/1or2/2information.
ANALOG OUT MaleXLR 2 x analog line level audio outputs with software adjustable output level.
ANALOG IN FemaleXLR-1/4”combo 2 x analog mic/line level audio inputs with individually software selectable coarse gain and fine
trim.
