A. STAND-BY INDICATOR
Lights up when the air conditioner is connected
to power and ready to receive the remote
control commands.
B. OPERATION INDICATOR
Lights up during operation. Blinks to announce
that the remote control infrared signal has
been received and stored.
C. TIMER INDICATOR
Lights up during TIMER and SLEEP operation.
D. COOLING INDICATOR
only when button(E)is pressed.
E. MODE - COOL/HEAT/ON/OFF - UNIT
OPERATION BUTTON
Used to switch the unit to positions: OFF, ON,
COOLING or HEATING without the use of the
remote control. The button can be activated by
a plastic rod or splinter.
F. HEATING INDICATOR
Lights up only when button(E) is pressed.
G. SIGNAL RECEIVER
Receives IR signals from the remote control.
Lights up
E

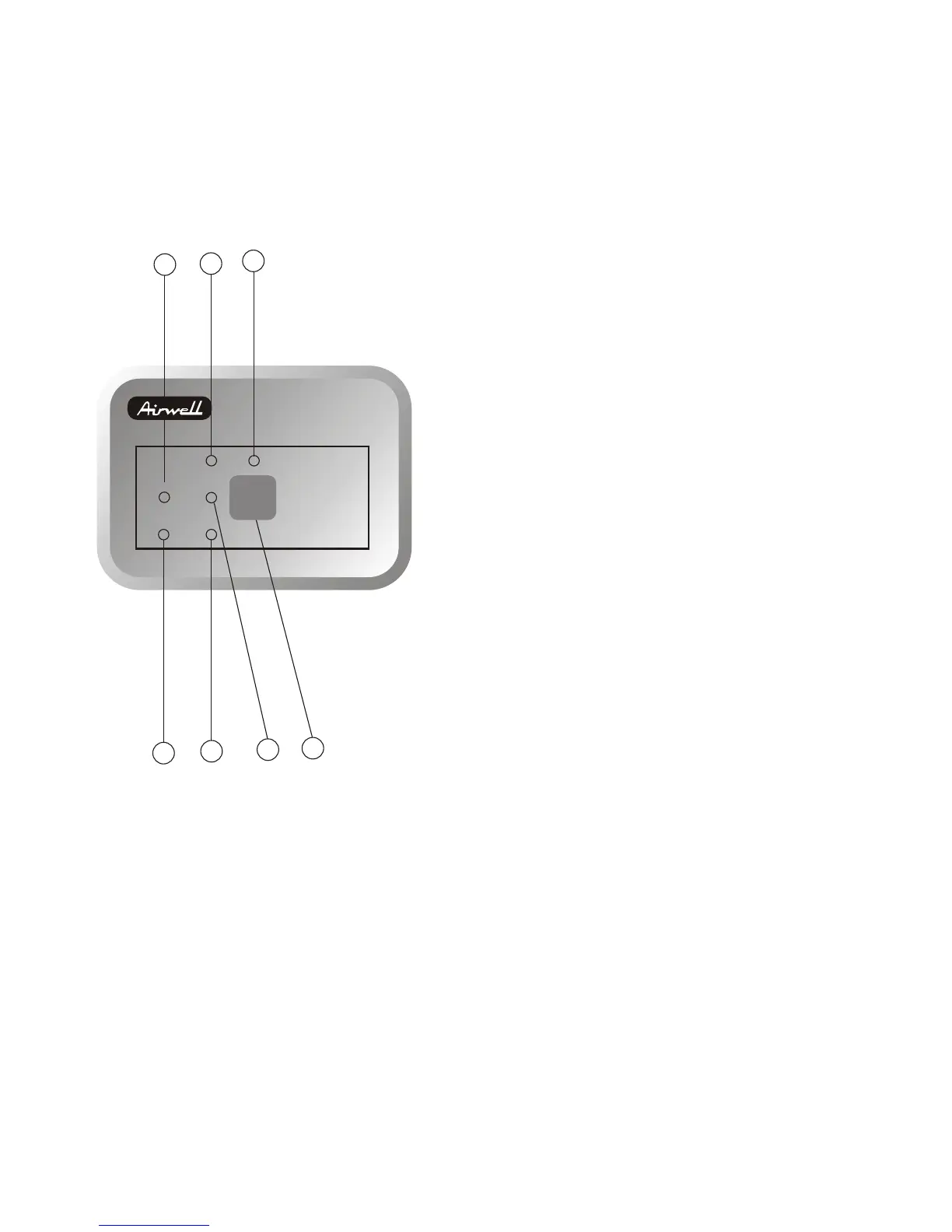

CENTRAL CONTROL
DISPLAY PANEL
A
D
B
F
C
G
5
COOL HEAT
TIMERMODE
STBY OPER
