PERFORMANCE DATA & PRESSURE CURVES
SM SX DCI 1-A.3 GB

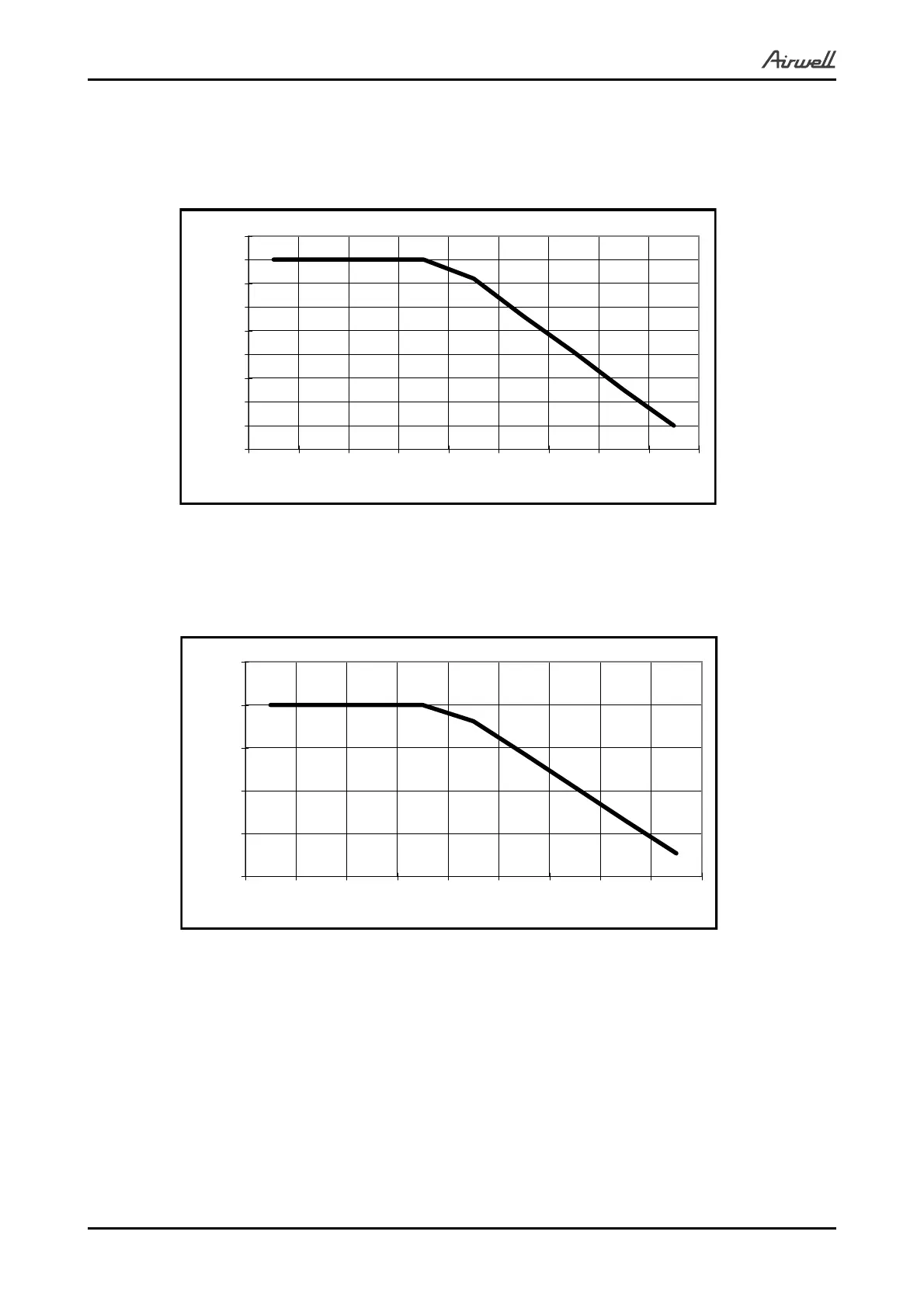

5.9 Capacity Correction Factor Due to Tubing Length
5.9.1 SX 80 DCI :Cooling
5.9.2 Heating
Heating
Tube Length(m) 5 6 7 7.5 10 15 20 25
Capacity Ratio 1.00 1.00 1.00 1.00 0.981 0.943 0.904 0.865
0.92
0.93
0.94
0.95
0.96
0.97
0.98
0.99
1.00
1.01
5 6 77.51015202530
Tube length [m]
Capacity Ratio
0.80
0.85
0.90
0.95
1.00
1.05
5 6 7 7.5 10 15 20 25 30
Tube Length [m]
Capacity Ratio
