Airwell GC 24 User Manual

5-10

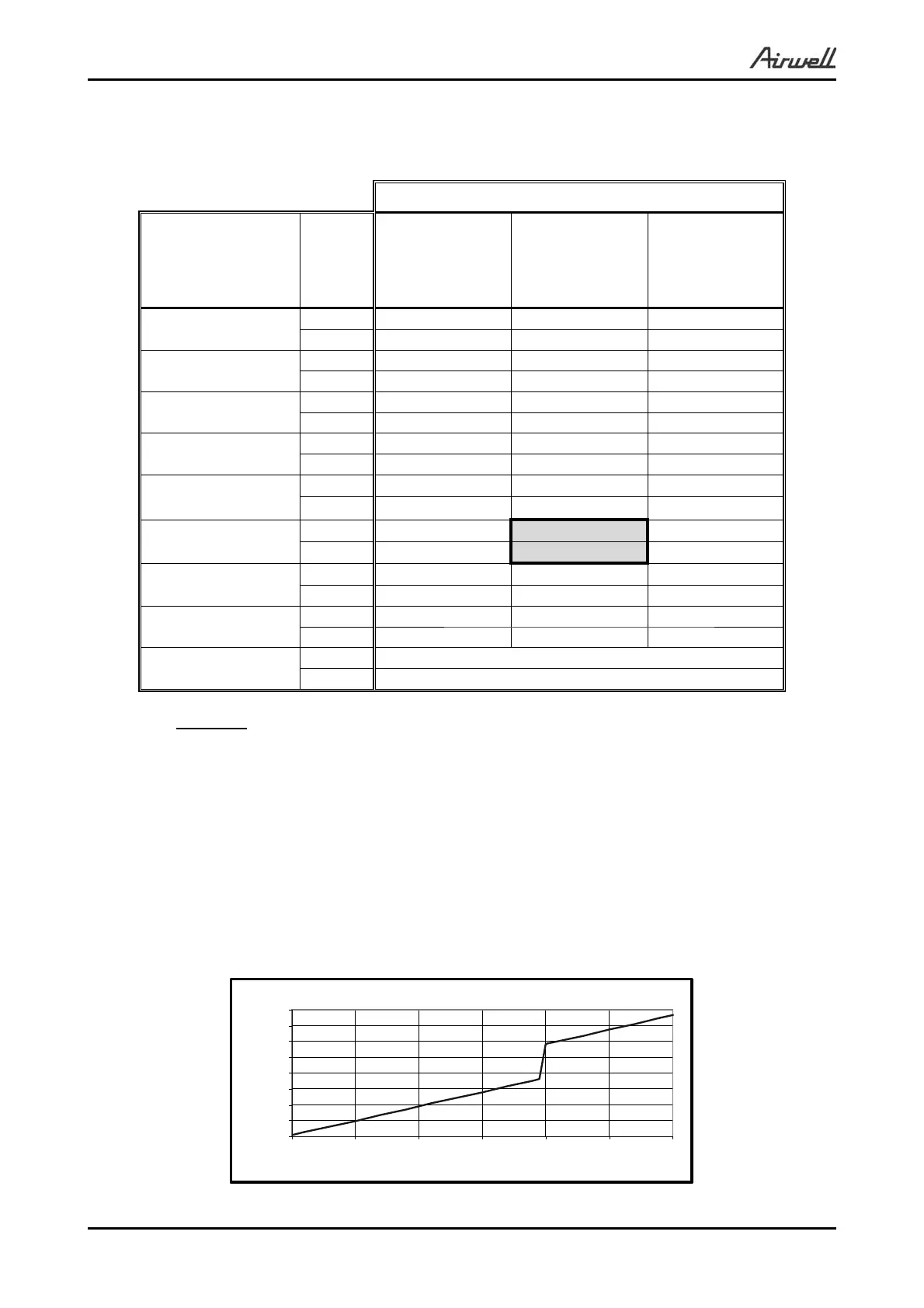

PERFORMANCE DATA & PRESSURE CURVES
SM FLODCI 2-A.4 GB
5.5.3 Heating Capacity (kW) - Run Mode
230[V] : Indoor Fan at High Speed.
ID COIL ENTERING AIR DB TEMPERATURE [
0
C]
OD COIL
ENTERING
AIR DB/WB
TEMPERATURE
[
0
C]
DATA
15 20 25
-15/-16
TC 3.87 3.31 2.75
PI 1.85 1.99 2.12
-10/-12
TC 5.11 4.55 3.99
PI 2.09 2.23 2.36
-7/-8
TC 6.03 5.48 4.92
PI 2.28 2.41 2.54
-1/-2
TC 6.50 5.94 5.38
PI 2.37 2.50 2.63
2/1
TC 6.81 6.25 5.69
PI 2.43
2.56
2.69
7/6
TC 9.06
8.50
7.94
PI 2.52
2.65
2.78
10/9
TC 9.53
8.97
8.41
PI 2.57 2.70 2.83
15/12
TC 10.00 9.44 8.88
PI 2.61 2.75 2.88
15-24
TC 85 - 105 % of nominal
(Protection Range)
PI 80 - 120 % of nominal
LEGEND
TC – Total Heating Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (
o
C)
DB – Dry Bulb Temp., (
o
C)
ID – Indoor
OD – Outdoor
5.5.4 Capacity Correction Factors
Heating Capacity Ratio Vs. Outdoor Temperature
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
-15 -10 -5 0 5 10 15
Outdoor WB Temperature [ºC]
Capacity Ration
