9-1

REFRIGERATION DIAGRAMS

SM FLODCI 2-A.4 GB

9. REFRIGERATION DIAGRAMS

9.1 Heat Pump Models

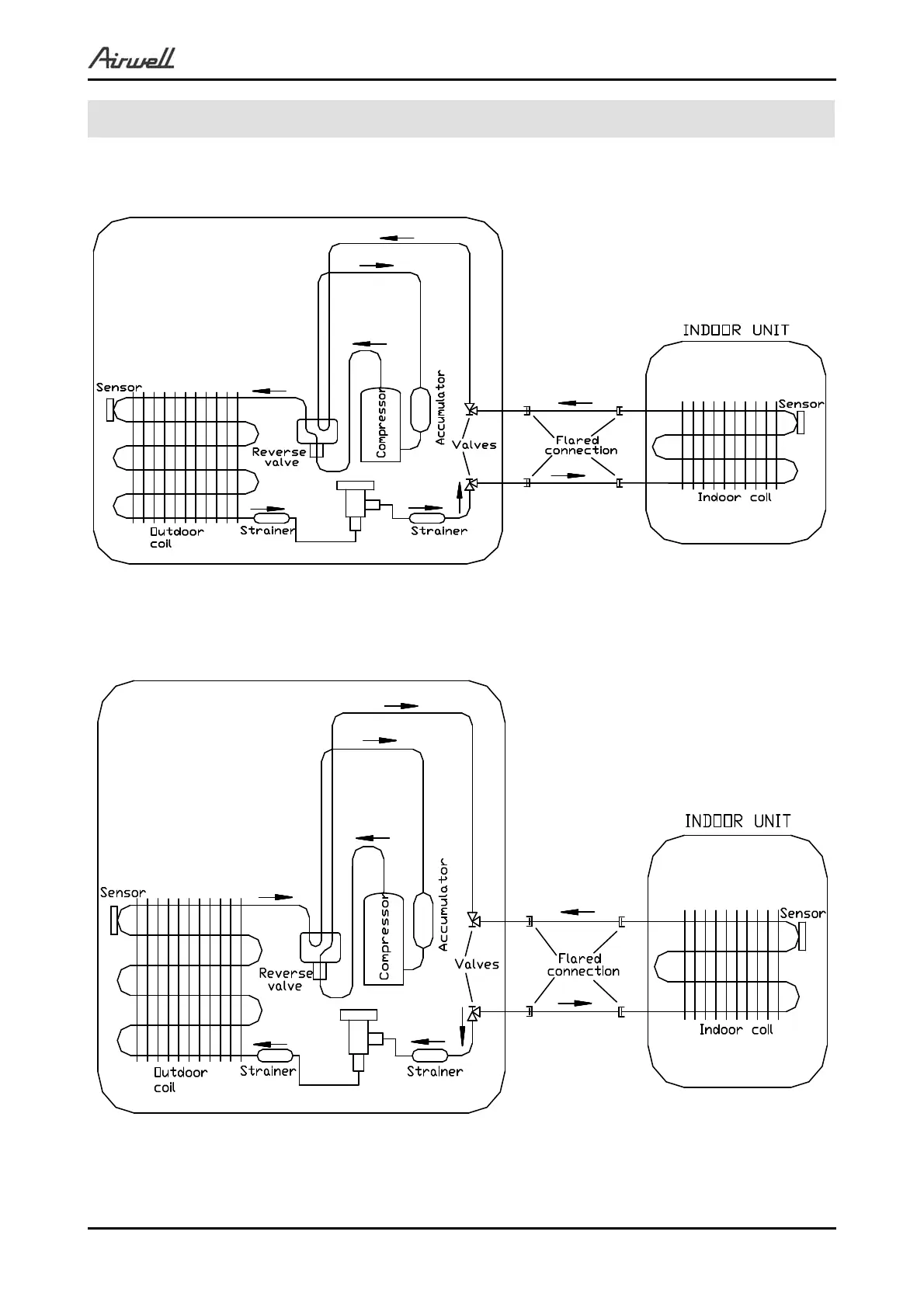

9.1.1 FLO 18, 21 / GC 18, 21 Cooling Mode

9.1.2 FLO 18, 21 / GC 18, 21 Heating Mode

EEV

EEV
