PERFORMANCE DATA & PRESSURE CURVES
SM FLODCI 2-A.4 GB

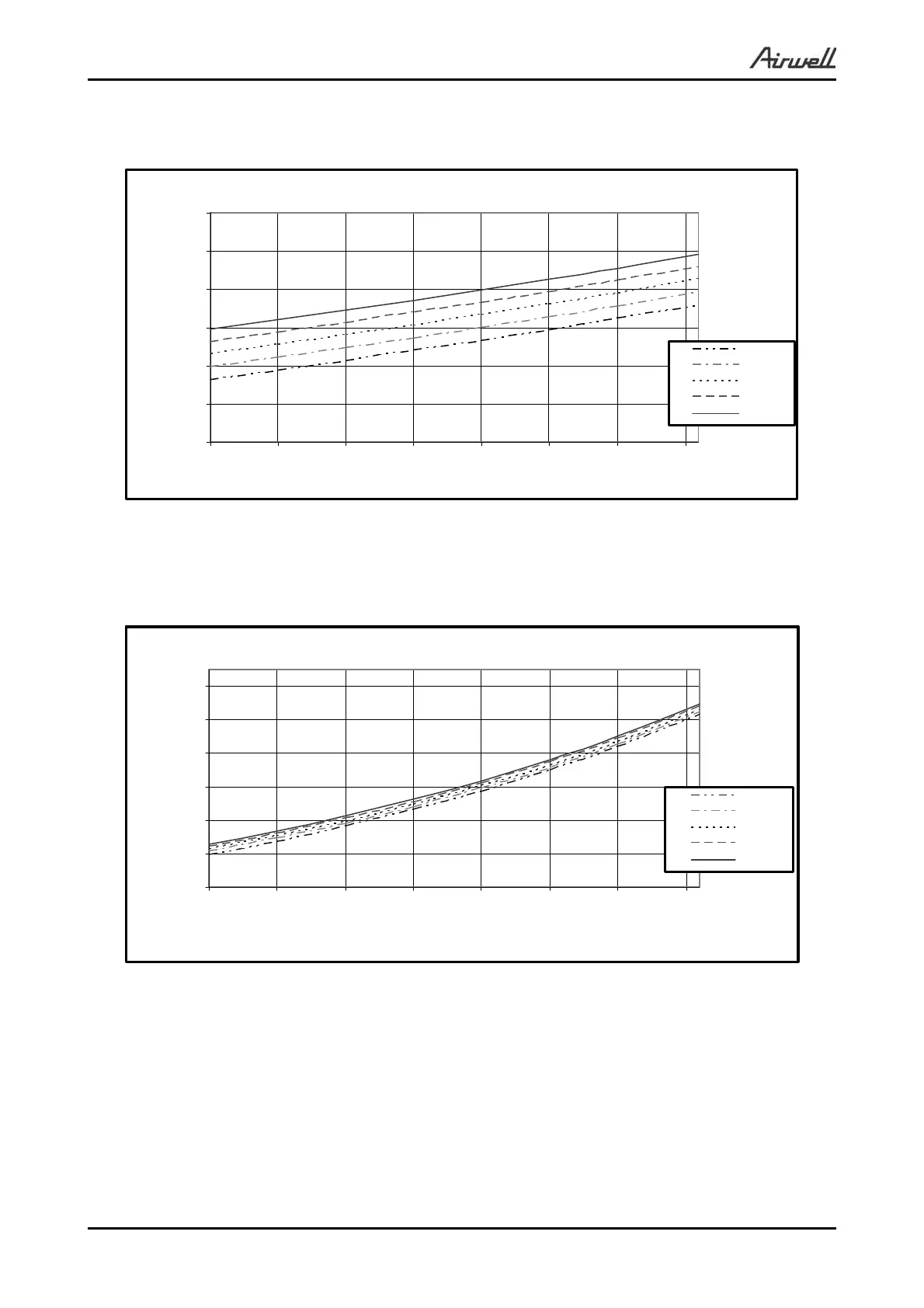

5.7.3 Model: FLO 21 DCI / GC 21 Cooling — Test Mode.
Suction Pressure VS.Outdoor Temp.
500
600
700
800
900
1000
1100
10 15 20 25 30 35 40 45
Outdoor DB Temperature[ºC ]
Suction Pressure [kPa]
22/15
24/17
27/19
29/21
32/23
Indoor
DB/WB Te m p'
Discharge Pressure VS. Outdoor Temp.
1000
1500
2000
2500
3000
3500
4000
10 15 20 25 30 35 40 45
Outdoor DB Temperature
Discharge Pressure [kPa]
22/15
24/17
27/19
29/21
32/23
Indoor
DB/WB T e m p'
