Airwell GC 24 - Sound Level Characteristics; Indoor Unit Sound Pressure Level Spectrum

6-1
SOUND LEVEL CHARACTERISTICS
SM FLODCI 2-A.4 GB
6. SOUND LEVEL CHARACTERISTICS
6.1 Sound Pressure Level
6.2 Sound Pressure Level Spectrum

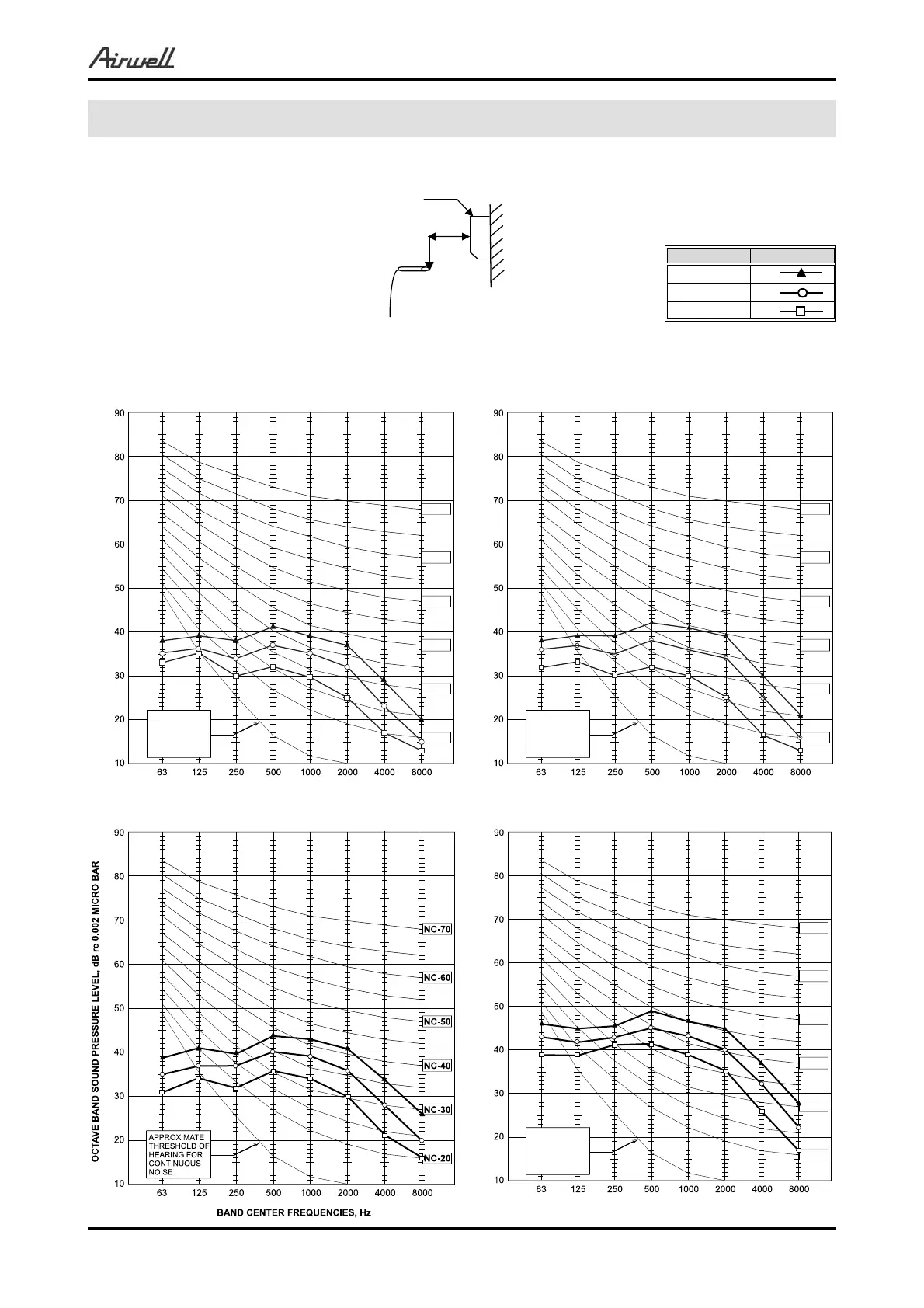

(Measured as Figure 1)
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.002 MICRO BAR
FAN SPEED LINE
HI
ME
LO
1
m
0.8m
Mic.
Unit
Wall
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.002 MICRO BAR
FLO 24 FLO 30
FLO 18 FLO 21
Figure 1
