PERFORMANCE DATA & PRESSURE CURVES
SM FLODCI 2-A.4 GB

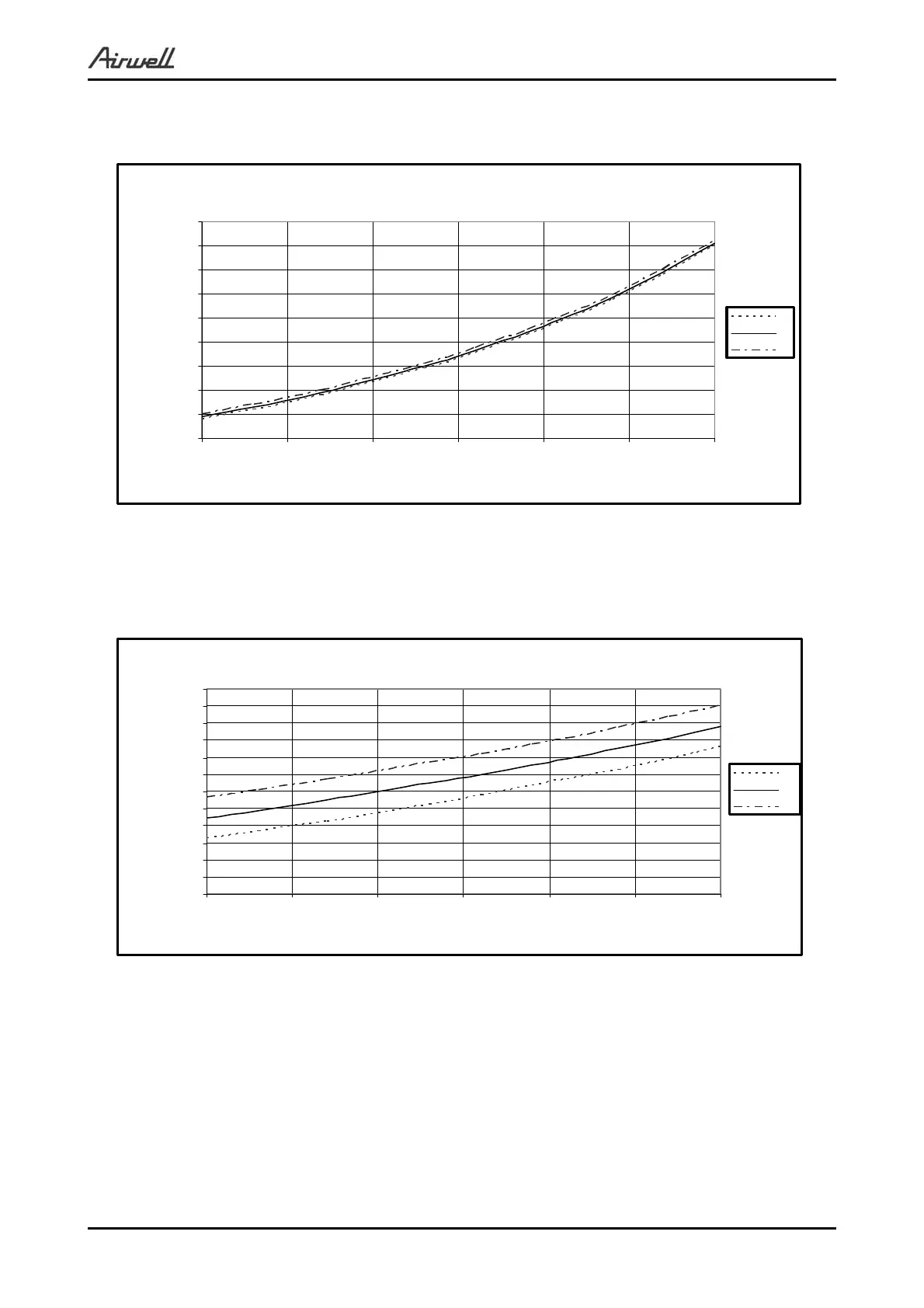

5.7.10 Heating — Test Mode
Suction Pressure VS.Outdoor Temp.
200
300
400
500
600
700
800
900
1000
1100
-15 -10 -5 0 5 10 15
Outdoor WB Temperature[ºC ]
Suction Pressure [kPa]
15
20
25
Indoor DB
Discharge Pressure VS. Outdoor Temp.
1000
1250
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
4000
-15 -10 -5 0 5 10 15
Outdoor WB Temperature[ºC ]
Discharge Pressure [kPa]
15
20
25
Indoor DB
