Airwell HKD DCI Series User Manual

INSTALLATION DETAILS
HKD DCI 31 Version - 2

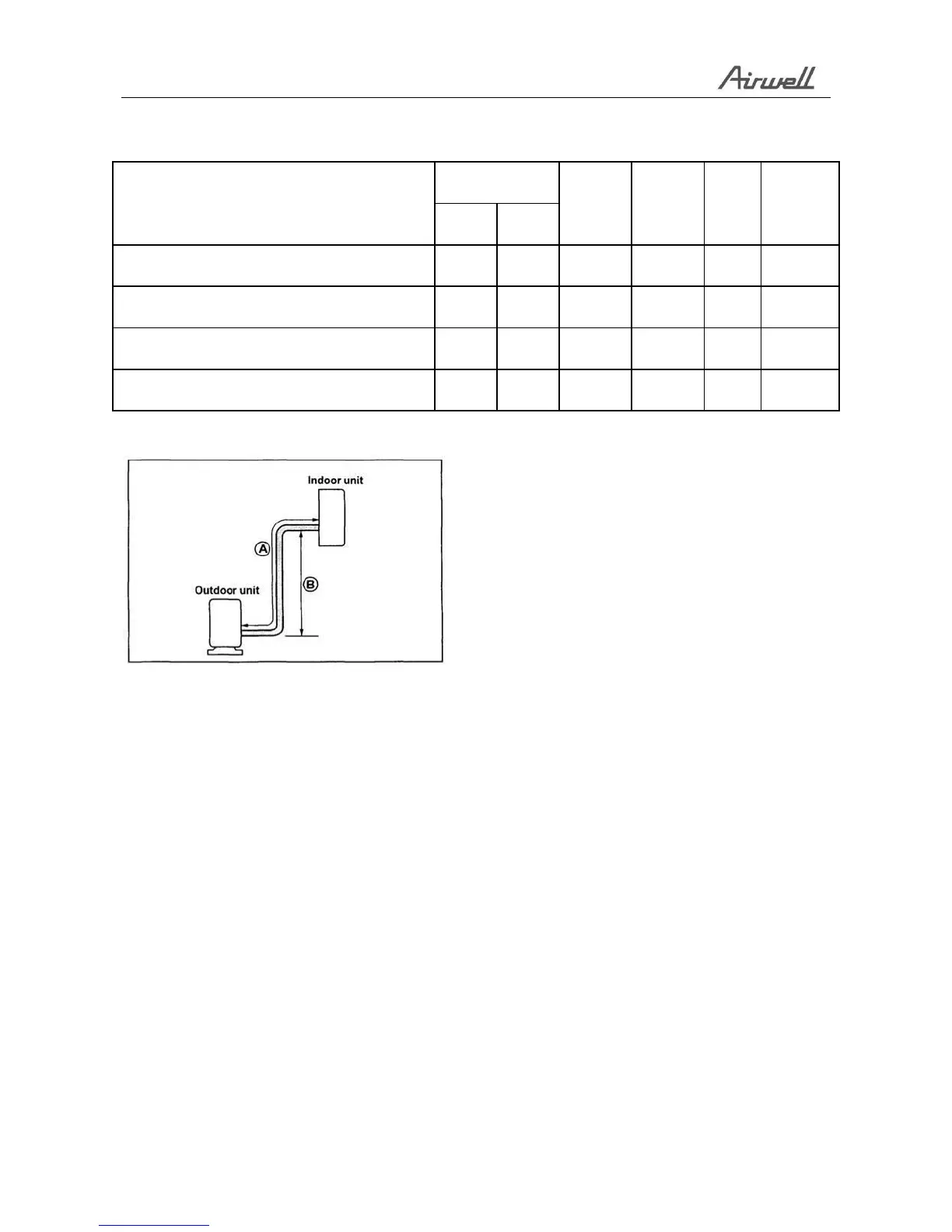

8.3 Pipe length and the elevation
The pipe length and refrigerant amount:
Model
Pipe size
Standard
length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
refrigerant
(g/m)
Gas
Liquid
AWSI-HKD009-N11 / AWAU-YKD009-H11
3/8’’
(Ф9.52)
1/4’’
(Ф6.35)
5
10
25
15
AWSI-HKD012-N11 / AWAU-YKD012-H11
3/8’’
(Ф9.52)
1/4’’
(Ф6.35)
5
10
25
15
AWSI-HKD018-N11 / AWAU-YKD018-H11
1/2’’
(Ф12.7)
1/4’’
(Ф6.35)
5
20
30
15
AWSI-HKD024-N11 / AWAU-YKD024-H11
5/8’’
(Ф15.9)
3/8’’
(Ф9.52)
5
25
50
30
Caution:
The capacity test is based on the standard length and the maximum permissive length is based on the
system reliability.
