OUTLINE DIMENSIONS
SM PNXDCI 1-A.1 GB

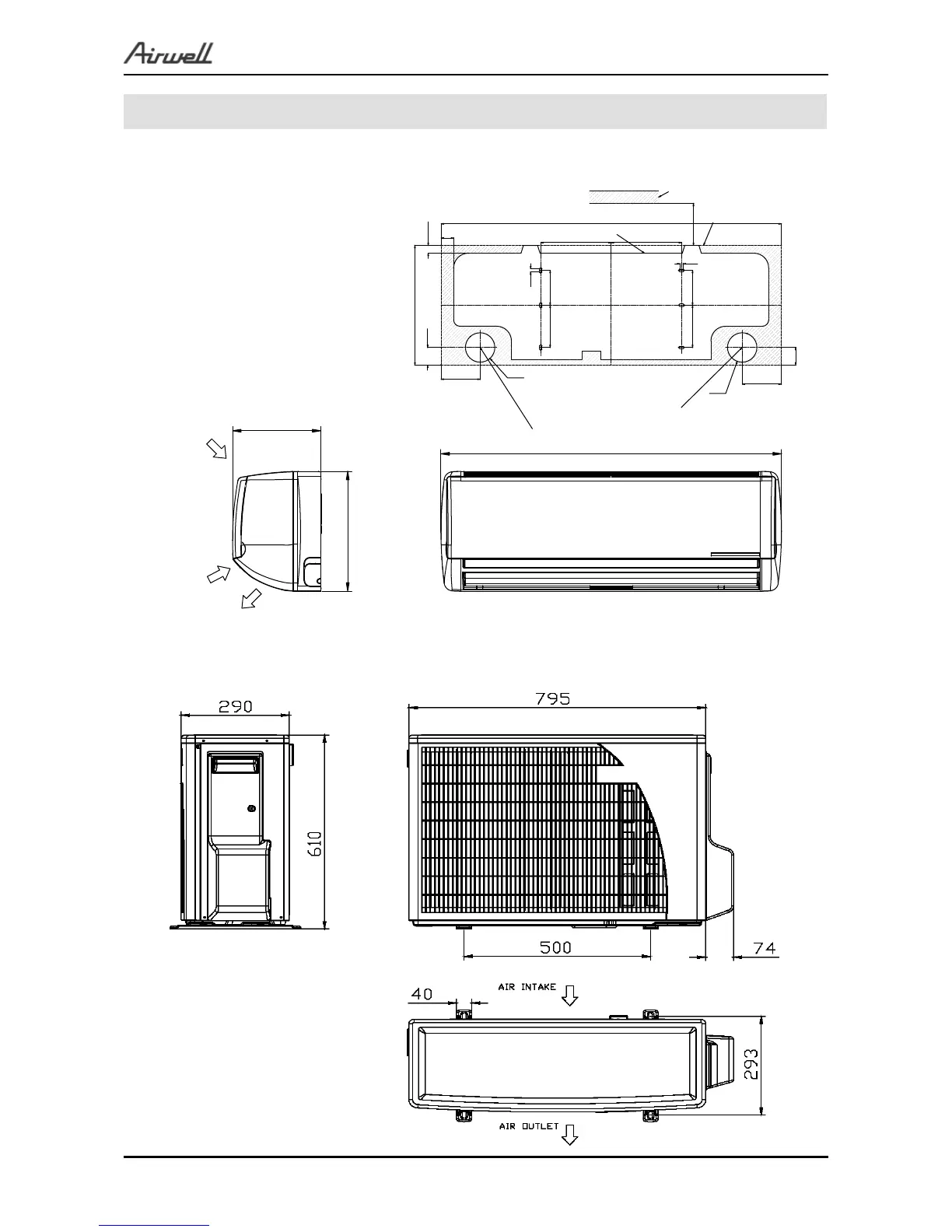

4. OUTLINE DIMENSIONS
4.1 Indoor Unit: PNX009 / PNX012 DCI
4.2
Outdoor Unit: GC 9 DCI Nordic / GC 12 DCI Nordic
AIR INTAKE
AIR INTAKE
AIR OUTLET
210
285
811
CEELING
8.0
83.0
167.5
100.0 MIN
83.0
8.0
18.5
30.0
MOUTING PLATE OUTLINE
MOUNTING TEMPLATE
TO BE USED FOR LOCATION
OF INDOOR UNIT ON THE WALL
167.5
810.0
INDOOR UNIT OUTLINE
42.0
TUBING WALL OPENING
(FOR REAR ROUTING)
70.0
93.0
TUBING WALL OPENING
(FOR REAR LEFT ROUTING)
93.0
70.0
100.5
285.0
42.0
100.5
