CONTROL SYSTEM
SM PNXDCI 1-A.1 GB

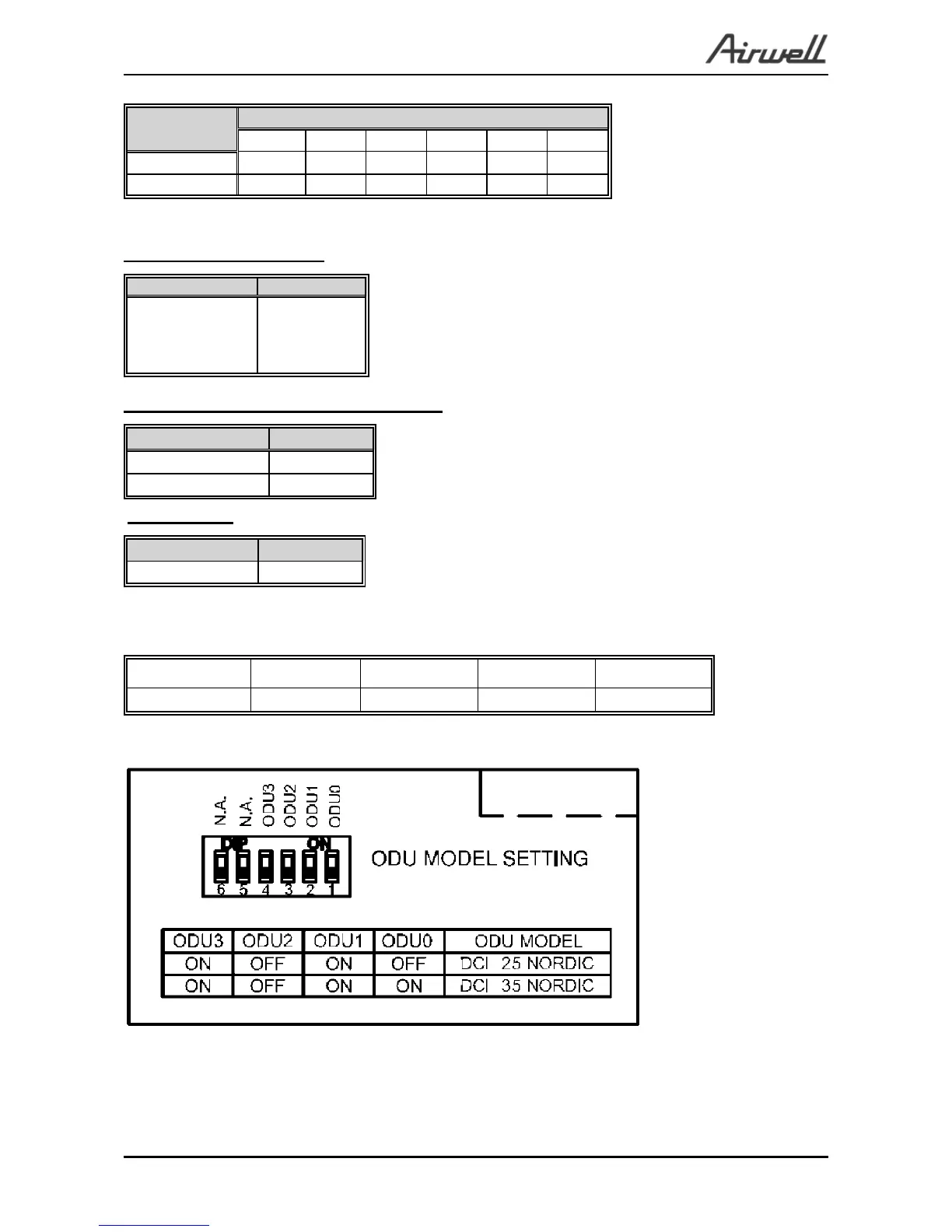

IDU Model
Jumper Setting
J8 J7 J6 J5 J4 J3
PNX009
0 00011
PNX012 0 10011
For wall mounted units Jumper J7, J8 can be configured by service. All other Jumpers on the above table and factory
default (cannot be changed by service.
Model selection Jumper – J7, J8
Model J7 J8
A
B
C
D
0 0
0 1
1 0
1 1
J9 ─ Presence Detector / Power Shedding
OPERATION J9
Presence Detector 0
Power Shedding 1
Jumper ─ J10
OPERATION J1
PNX 1
11.12.2 Outdoor Unit Controller
J9 ─ Jumper Layout
Reserved (PIN 9) ODU3 (PIN 7) ODU2 (PIN 5) ODU1 (PIN 3) ODU0 (PIN 1)
GND (PIN 10) GND (PIN 8) GND (PIN 6) GND (PIN 4) GND (PIN 2)
ODU Model Selection
