Aiwa CSD-EL33 User Manual

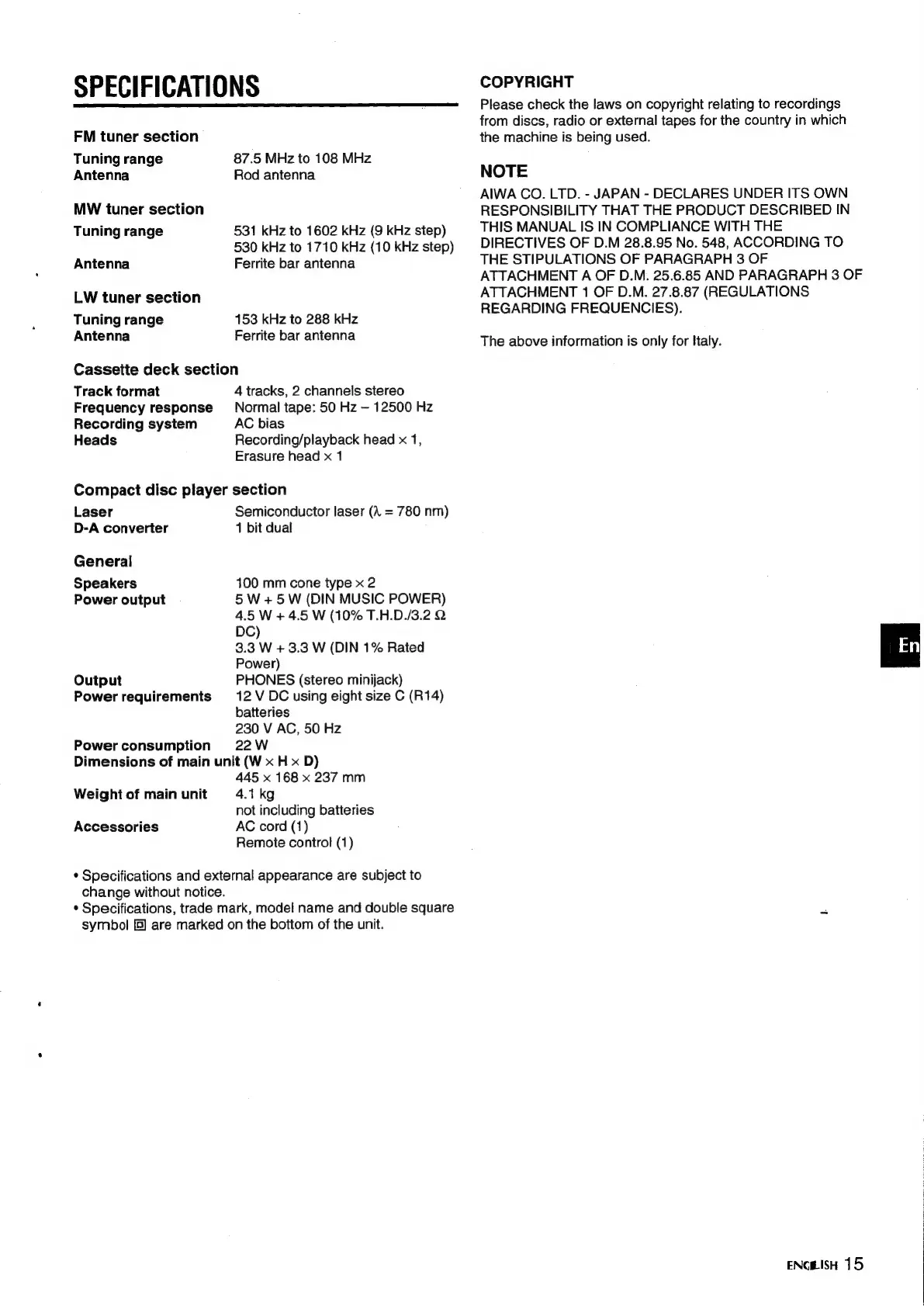

SPECIFICATIONS
FM tuner section
Tuning range
Antenna
87.5 MHz to 108 MHz
Rod antenna
MW tuner section
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Antenna Ferrite bar antenna
LW tuner section
Tuning range
Antenna
153 kHz to 288 kHz
Ferrite bar antenna
Cassette deck section
Track format 4 tracks, 2 channels stereo
Frequency response Normal tape: 50 Hz — 12500 Hz
Recording system AC bias
Heads Recording/playback head x 1,
Erasure head x 1
Compact disc player section
Laser Semiconductor laser (A = 780 nm)
D-A converter 1 bit dual
General
Speakers 100 mm cone type x 2
Power output 5 W +5 W (DIN MUSIC POWER)
4.5 W + 4.5 W (10% T.H.D./3.2 Q
DC)
3.3 W + 3.3 W (DIN 1% Rated
Power)
Output PHONES (stereo minijack)
Power requirements 12 V DC using eight size C (R14)
batteries
230 V AC, 50 Hz
Power consumption 22 W
Dimensions of main unit (W x H x D)
445 x 168 x 237 mm
Weight of main unit 4.1 kg
not including batteries
Accessories AC cord (1)
Remote control (1)
¢ Specifications and external appearance are subject to
change without notice.
* Specifications, trade mark, model name and double square
symbol [8] are marked on the bottom of the unit.
COPYRIGHT
Please check the laws on copyright relating to recordings
from discs, radio or external tapes for the country in which
the machine is being used.
NOTE
AIWA CO. LTD. - JAPAN - DECLARES UNDER ITS OWN
RESPONSIBILITY THAT THE PRODUCT DESCRIBED IN
THIS MANUAL IS IN COMPLIANCE WITH THE
DIRECTIVES OF D.M 28.8.95 No. 548, ACCORDING TO
THE STIPULATIONS OF PARAGRAPH 3 OF
ATTACHMENT A OF D.M. 25.6.85 AND PARAGRAPH 3 OF
ATTACHMENT 1 OF D.M. 27.8.87 (REGULATIONS
REGARDING FREQUENCIES).
The above information is only for Htaly.
,
ENcEISH 15
