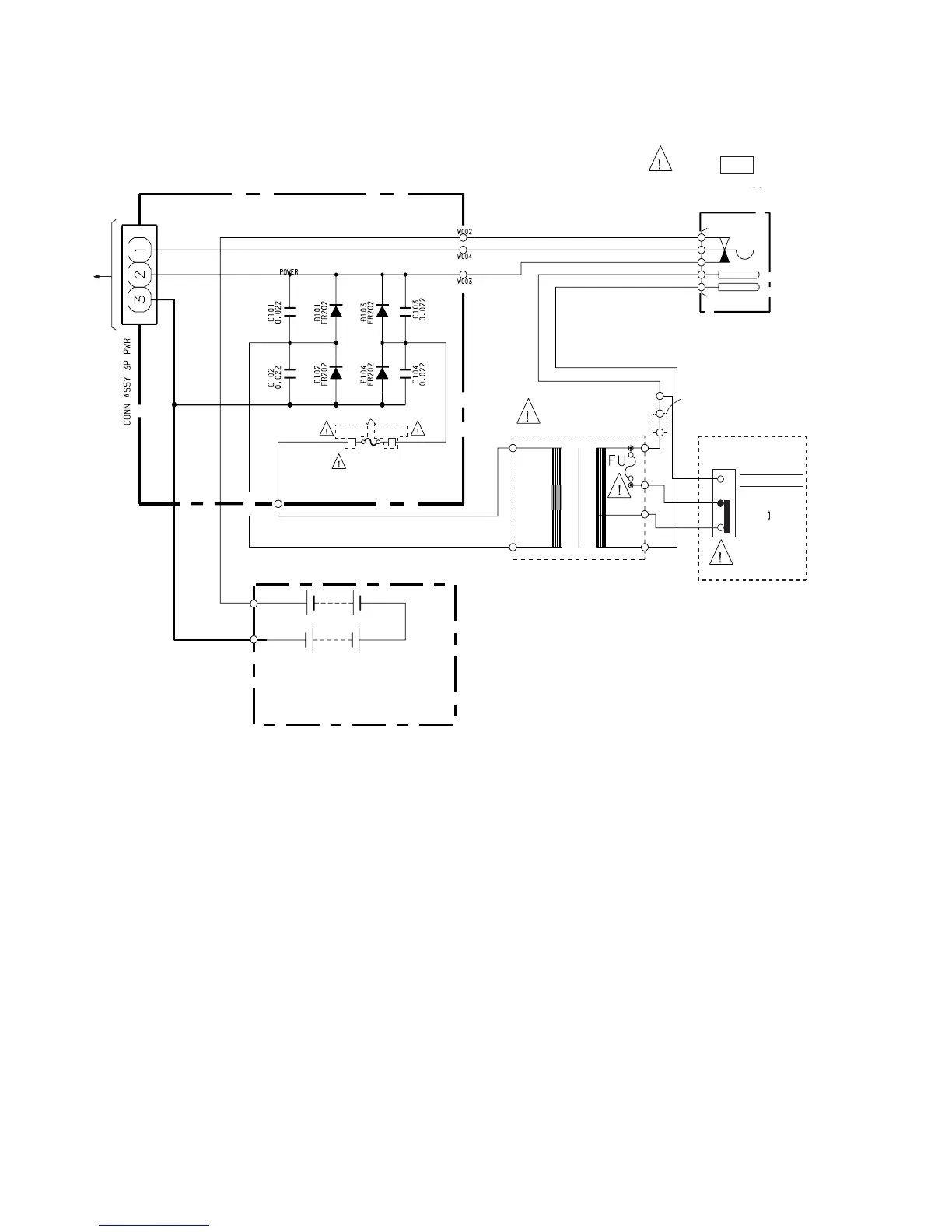

SCHEMATIC DIAGRAM -5/5 (POWER/BATT)
BATTERY DC 12V R14 x 8
PT 701
POWER C.B
FC 101
F 701
FC 102
2.5A 250V
S101
SW701
AC VOLTAGE
220-240V
110-120V
LH MODEL
BATT C.B
J101
TO CD (1/2) C.B CN101
CNA101
AC 110-120V 220-240V,50/60H
z
AC 120V, 60HzU,UC:
U,UC MODEL
LH:
AC~
LH MODEL
