CSD-XD55
1 two claws
2 R/P head (HRP301)
3 screw
(+BVTT 2
x 4
)
4 lug
5
6
Remove the four solderings.
7 TC board
1 screw
(
bind DT M2 x 6 )
2 screw
(
bind DT M2 x 6 )
3
4
main belt
5 RF belt
6 two screws
(
pan M2.6 x 4.5 )
7 motor assy (M301
)
8 motor bracket

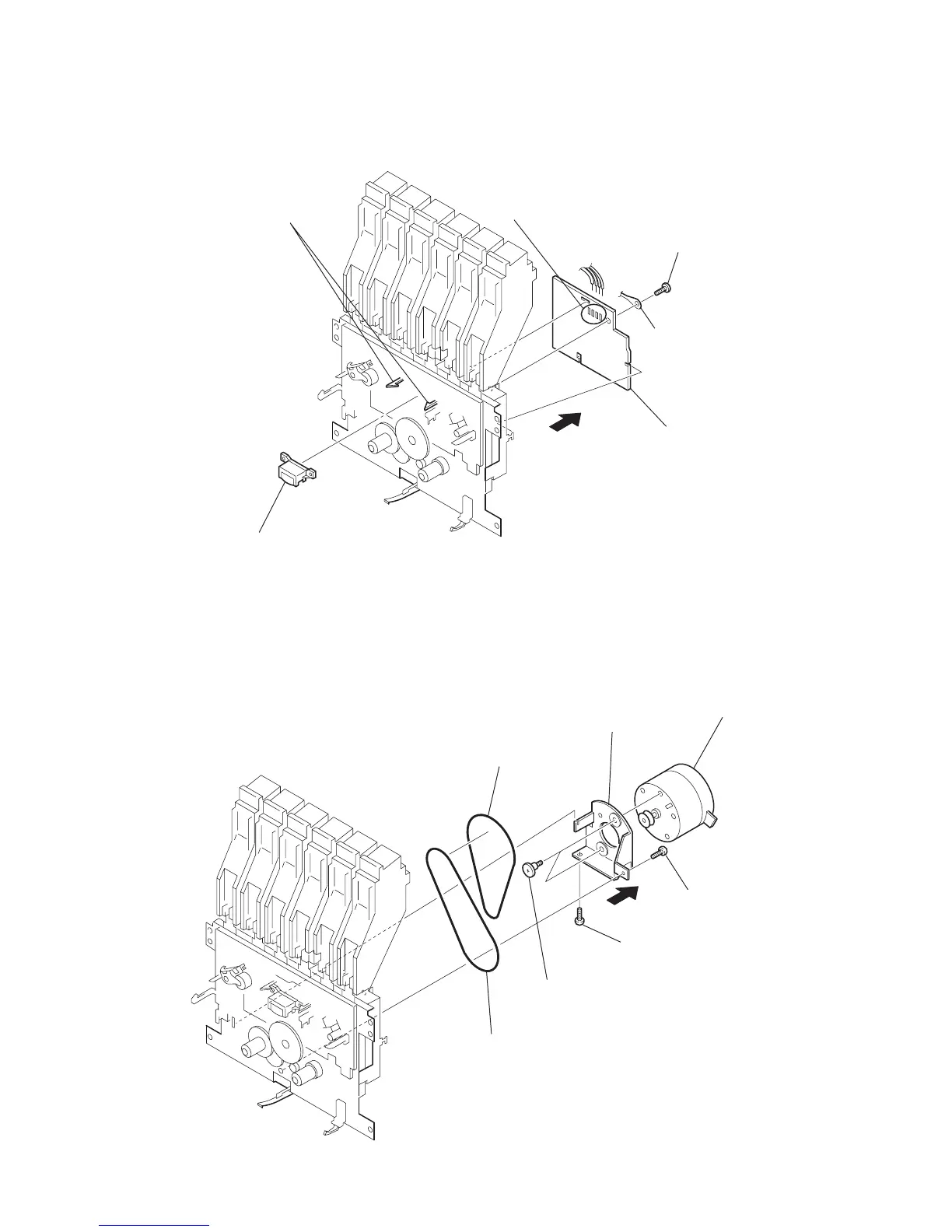

3-13. R/P HEAD(HRP301),TC BOARD
3-14. MAIN BELT, RF BELT, MOTER ASSY(M301)
