43
CSD-XD55
301
303
305 305
307
304
302
M702
306
(including M701)

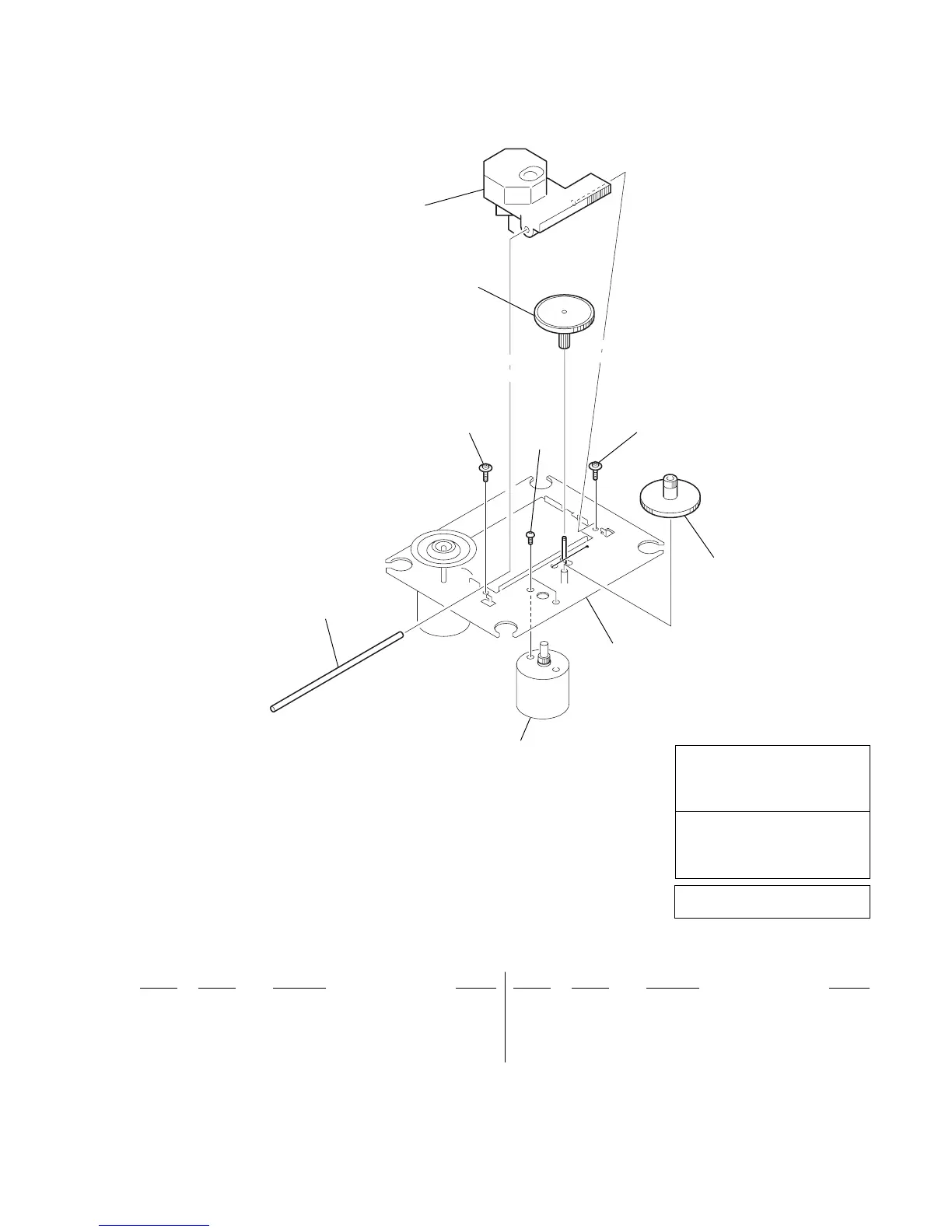

7-7. CD MECHANISM SECTION (KSM-213RDP)
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
301 2-626-908-01 SHAFT, SLED
* 302 2-647-408-02 GEAR (B)
0 303 8-820-161-02 OPTICAL PICK-UP (KSS-213R/C2RP)
* 304 2-169-065-01 GEAR (A)
305 2-169-388-11 TAPPING (M2), +PWB
306 X-2162-707-2 CHASSIS ASSY (RDP) (RP), MOTOR (SPINDLE)
(including M701)
307 2-174-500-01 SCREW (2X3)
M702 X-2162-712-2 GEAR ASSY (R) (RP), MOTOR (SLED)
Ver 1.1
Les composants identifiés par une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
