CSD-XD55
• The equipment can be removed using the following procedure.
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

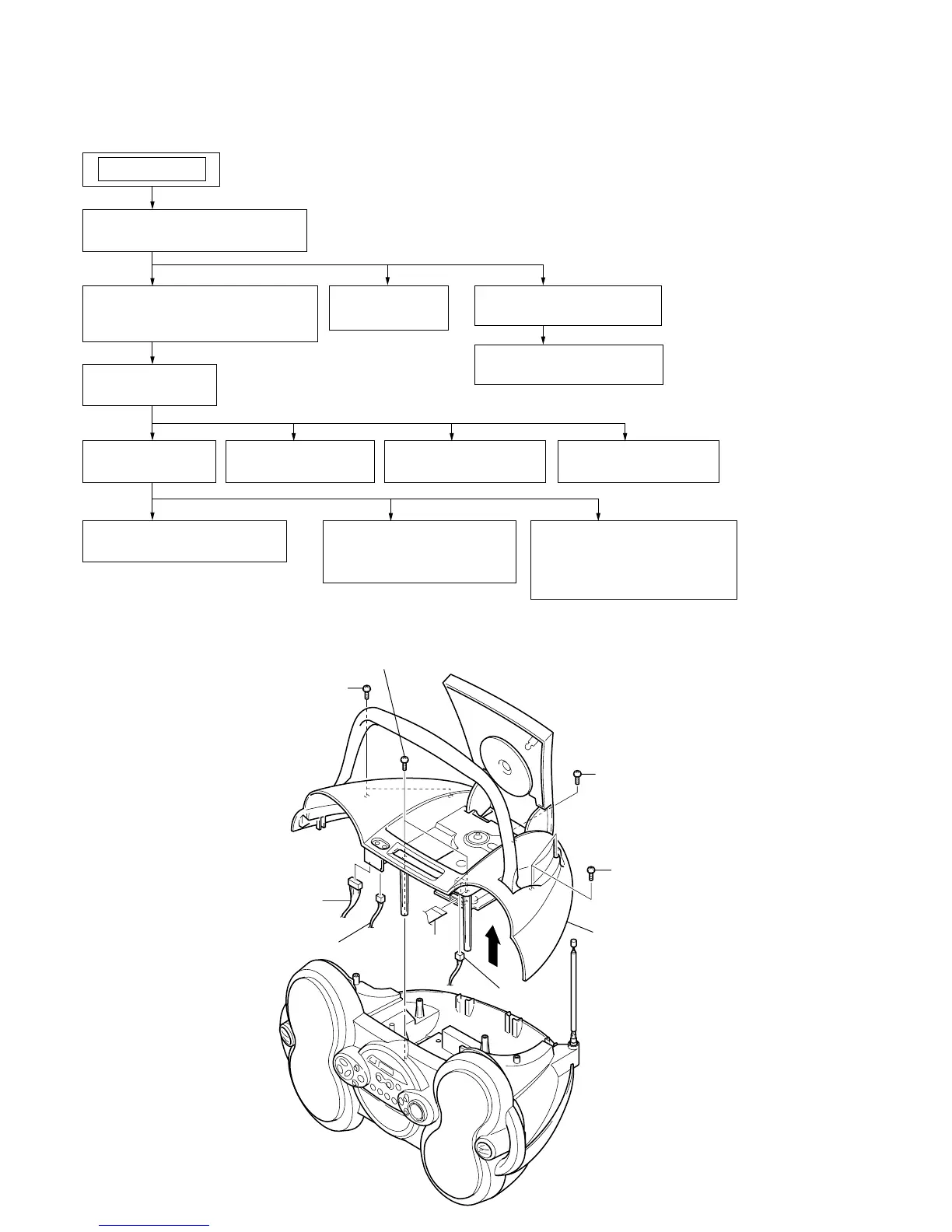

3-2. CABINET (TOP) ASSY
2 screw
(+BV (B3
) )
1 two screws
(+BV (B3
) )
3 two screws
(+BV (B3
) )
1 two screws
(+BV (B3
) )
4
6
CNP702
5 connector
(CNJ807)
7 connector
(CNP809)
8 connector
(CNP302)
9 cabinet (top) assy
3-2 CABINET (TOP) ASSY
(Page 6)
3-3. CABINET (FRONT) ASSY,
CABINET (BOTTOM) ASSY
(Page 7)
3-11. CD BLOCK ASSY
(Page 12)
SET
3-4. WIRES
(Page 8)
3-5. MD BLOCK
(Page 9)
3-7. MAIN BOARD
(Page 10)
3-6. CASSETTE HOLDER
(Page 9)
3-10. CD LID
(Page 11)
3-8. TUNER BOARD
(Page 10)
3-13. R/P HEAD (HRP301),
TC BOARD
(Page 13)
3-14. MAIN BELT (B),
SUB BELT (B)
MOTOR ASSY (M301),
(Page 13)
3-9. POWER BOARD
(Page 11)
3-12. OPTICAL PICK-UP
(Page 12)
3-1. DISASSEMBLY FLOW
