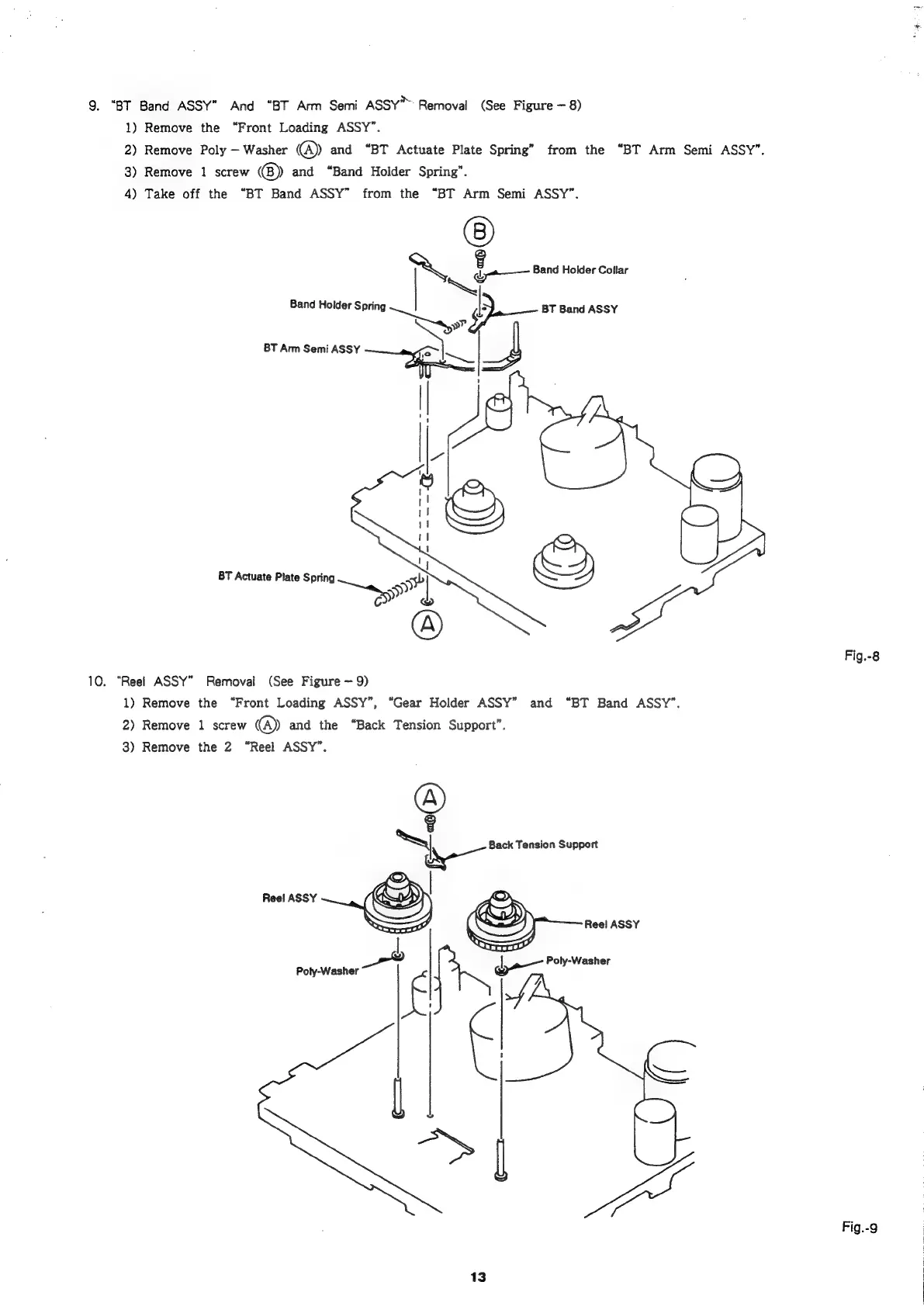

9. “BT Band ASSY” And “BT Arm Semi ASSY* Removal (See Figure — 8)
1) Remove the “Front Loading ASSY”.
2) Remove Poly — Washer @ and “BT Actuate Plate Spring” from the “BT Arm Semi ASSY”.
3) Remove 1 screw @» and “Band Holder Spring”.
4) Take off the “BT Band ASSY” from the “BT Arm Semi ASSY”.
No
Band
Holder
Collar
Band
Holder
Spring
.
BT
Band
ASSY
yr
BT
Arm
Semi
ASSY
3
a
|
J
BT Actuate Plate Spring
Fig.-8
10. “Reel ASSY” Removal (See Figure — 9)
1) Remove the “Front Loading ASSY”, “Gear Holder ASSY” and “BT Band ASSY”.
2) Remove 1 screw @ and the “Back Tension Support”.
3) Remove the 2 “Reel ASSY”.
1 ea Back Tension Support
Reel ASSY |
Reel ASSY
Fa Poly-Wash
Poly-Washer £ iS, prlenanee
eee
Fig.-9
