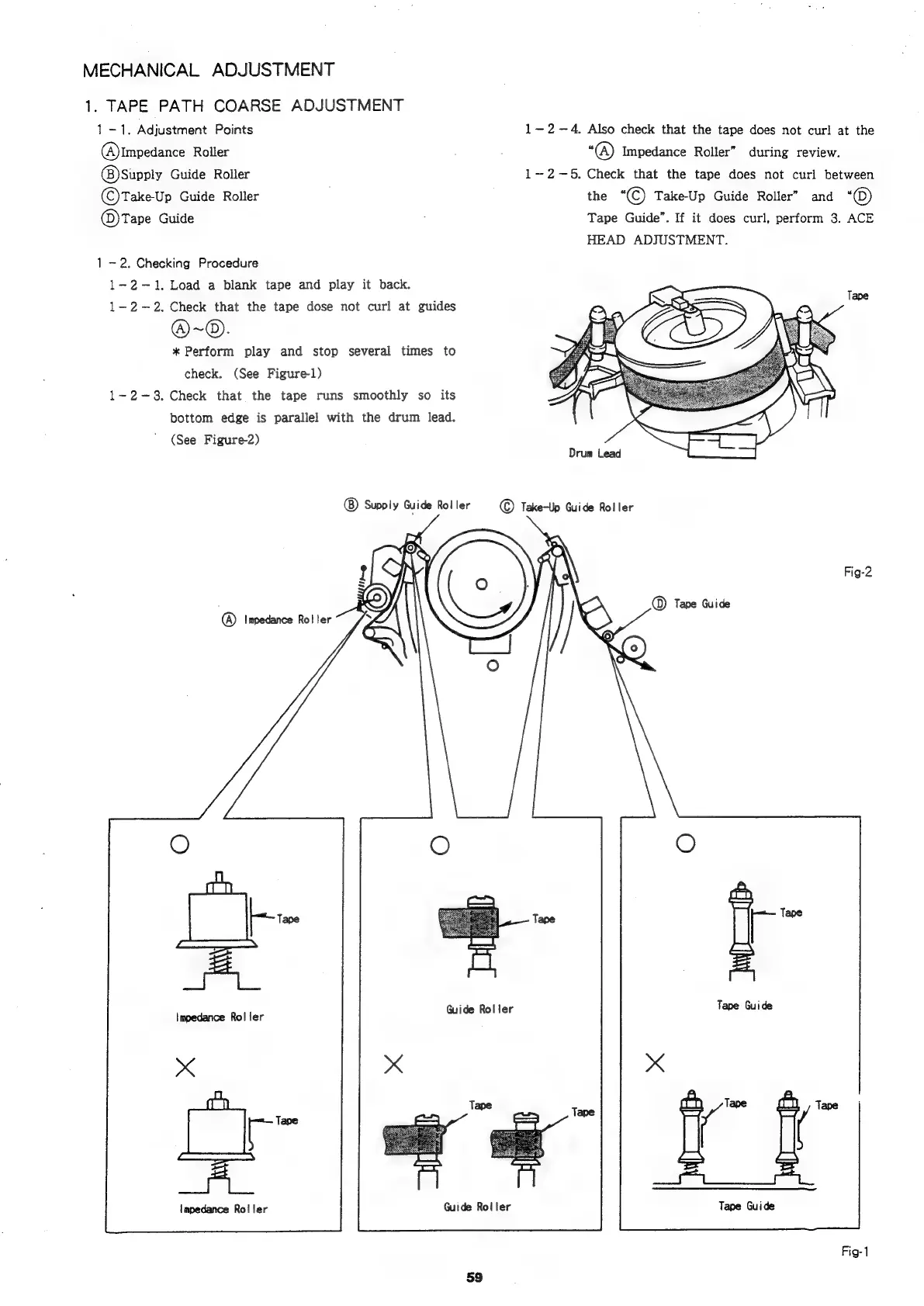

MECHANICAL ADJUSTMENT
1. TAPE PATH COARSE ADJUSTMENT
1-1. Adjustment Points 1-2-4. Also check that the tape does not cur! at the
(A)Impedance Roller “@) Impedance Roller” during review.
(B) Supply Guide Roller 1-2-5. Check that the tape does not curl between
(©Take-Up Guide Roller the “(C) TakeUp Guide Roller” and “()
(D)Tape Guide : Tape Guide”. If it does curl, perform 3. ACE
HEAD ADJUSTMENT.
1 -—2. Checking Procedure
1-2-1. Load a blank tape and play it back.
1-2-2. Check that the tape dose not curl at guides
@~©.
* Perform play and stop several times to
check. (See Figure-1)
1~2-—3. Check that the tape runs smoothly so its
bottom edge is parallel with the drum lead.
(See Figure-2)
Drum Lead
Supply Guide Rol ler © Take-Up Guide Rol ler
Fig-2
@ Tape Guide
@ Impedance Rol ter
Ct
a
[re
|
Rol
ler
Guide
Roller
Tape
Guide
i:
(~
7
er (
Fi. EL gis TR sa
Impedance
Rol
ler
Guide
Roller
Tape
Guide
Fig-1
