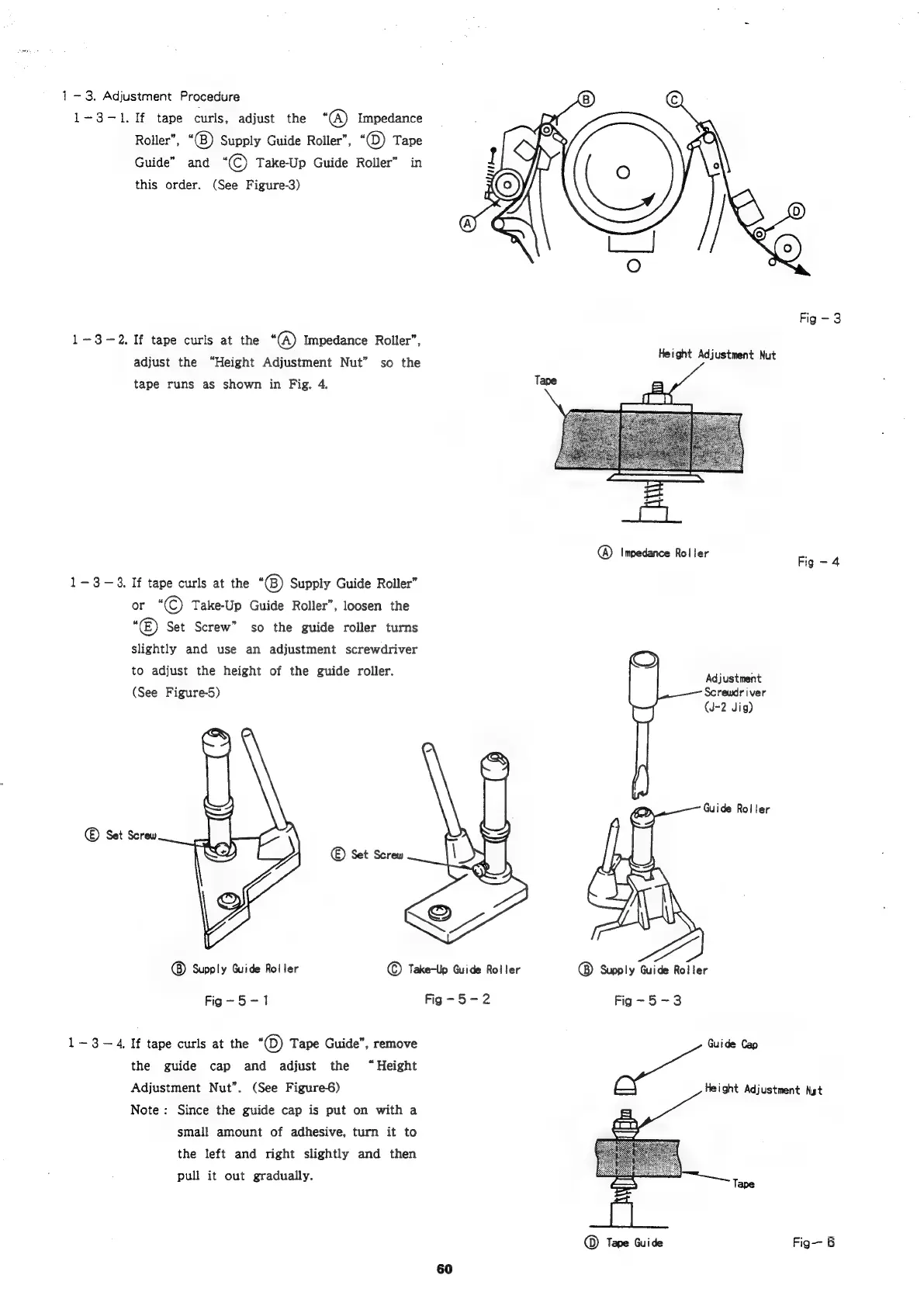

1 -— 3. Adjustment Procedure
1-3-1. If tape curls, adjust the “@) Impedance
Roller”, “(B) Supply Guide Roller”, “(D) Tape
Guide” and “(C) Take-Up Guide Roller” in
this order. (See Figure-3)
Fig -3
1-3-2. If tape curls at the “@) Impedance Roller”,
3 Peon “ Pe Height Adj
adjust the “Height Adjustment Nut” so the apie A itcatmant Nut
tape runs as shown in Fig. 4.
@) Impedance Ro! ler Fig - 4
1-3-3, If tape curls at the ‘®) Supply Guide Roller”
‘© Take-Up Guide Roller”, loosen the
‘© Set Screw” so the guide roller turns
slightly and use an adjustment screwdriver
to adjust the height of the guide roller. Aaj dateahe
(See Figure-5) Screudr iver
(J-2 Jig)
! 7 Roller
Supply Guide Roller © Take-Up Guide Roller @® Supply Guide Roller
© Set Screw
Fig-
5-1
Fig-5-2
Fig-5-3
1-3-4, If
tape
curls
at
the
“©)
Tape
Guide”,
remove
Guide
Cap
the
guide
cap
and
adjust
the
“Height
Adjustment
Nut”.
(See
Figure6)
Note:
Since
the
guide
cap
is
put
on
with
a
Height Adjustment Nst
small amount of adhesive, turn it to
the left and right slightly and then
pull it out gradually. a
@® Tape Guide Fig 6
