ELECTRICAL MAIN PARTS LIST
REF. NO PART NO. KANRI DESCRIPTION
NO.
88
A

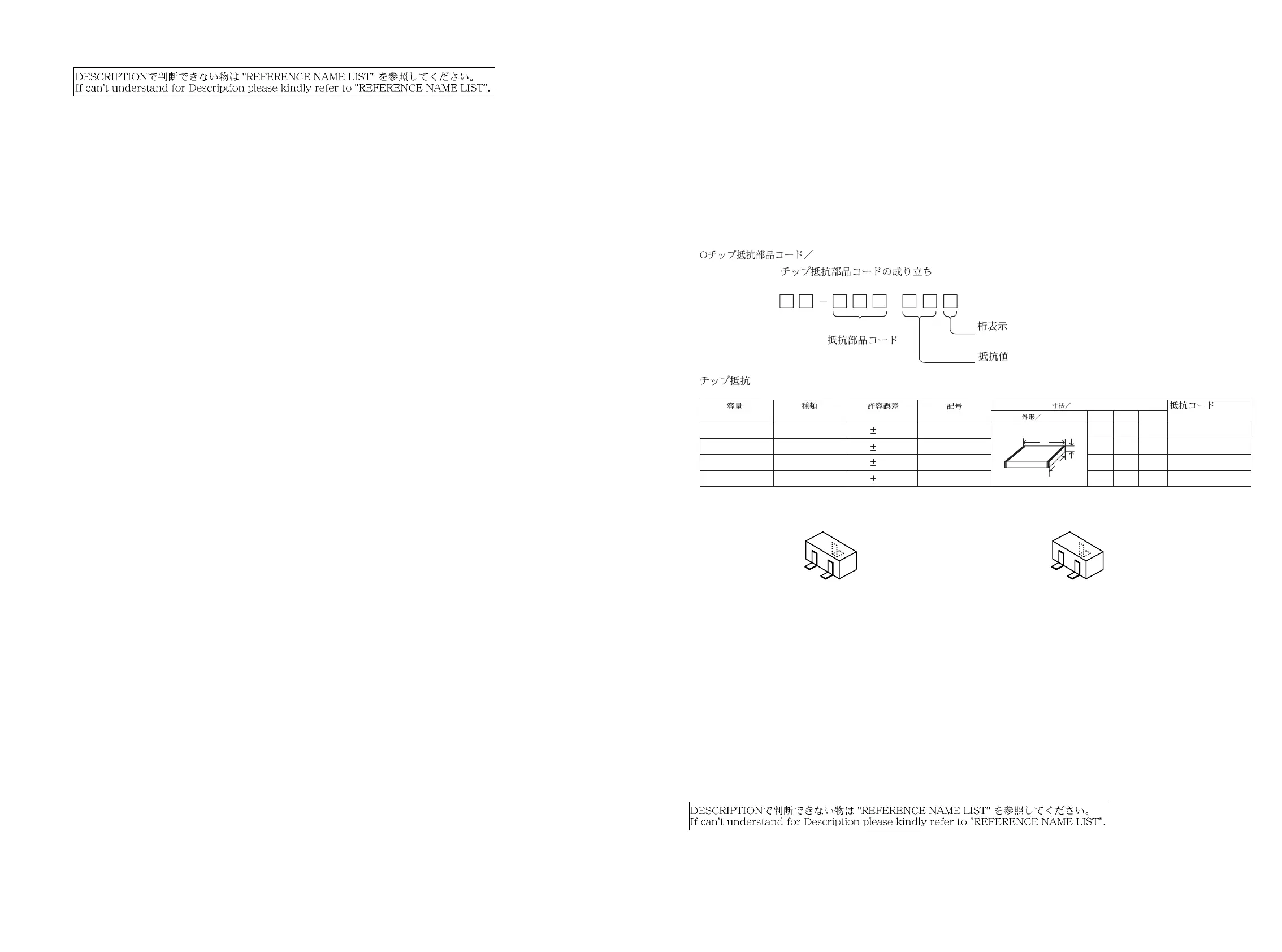

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2
1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
L
t
W
IC
87-A20-399-010 1F IC,LA4168M
87-A20-461-040 1C IC,MM1336DF
87-002-649-080 1B IC,NJM324M
87-017-506-080 1A IC,PST600 JMT
87-A20-755-080 1B C-IC,AK93C45AF
87-017-643-080 1B IC,MM1206XFF
87-A21-450-040 -- C-IC,BU4053BCFV
87-A21-409-010 2B C-IC,ISD4002-120ED
87-A21-408-010 1F C-IC,MC68HC705P6CDW
87-A21-411-040 1D C-IC,SB2020P-29332AK
TRANSISTOR
89-508-804-080 1A CHIP FET 2SK880Y
87-A30-288-040 0E C-TR,DTC114YKA
89-333-266-080 0E CHIP TR,2SC3326B
89-327-125-080 0E CHIP TR,2SC2712GR
89-342-132-080 0E TR,2SC4213B
89-341-165-080 0E CHIP TRANSISTOR 2SC4116GR
87-A30-144-080 0E C-TR,2SC4081R
87-026-210-040 0E C-TR,DTC144EKA
89-115-864-080 0E CHIP TRANSISTOR 2SA1586Y
87-026-337-080 0E C-TR,DTA144TUA
89-332-654-080 0E CHIP TRANSISTOR, 2SC3265Y
DIODE
87-A40-529-010 1A DIODE,1GWJ42
87-001-221-080 1A CHIP DIODE,ISS319
87-001-553-080 0E C-DIODE 1SS322
87-020-339-080 0E CHIP DIODE,1SS226
87-020-027-080 0E CHIP-DIODE 1SS184
87-001-166-080 0E DIODE,1SS301
MAIN C.B
C101 87-A10-036-080 1A C-CAP,TN 47U-6.3 B2
C102 87-016-462-080 0E C-CAP,S 1-16 F
C103 87-010-186-080 0E CAP,CHIP 4700P
C104 87-010-184-080 0E CHIP CAPACITOR 3300P(K)
C105 87-A10-019-080 0E C-CAP,TN 10-6.3 A
C106 87-015-677-010 0E CAP,E 100-6.3
C107 87-016-296-080 1A C-CAP,TN 22-6.3
C108 87-016-462-080 0E C-CAP,S 1-16 F
C109 87-016-462-080 0E C-CAP,S 1-16 F
C110 87-010-187-080 0E CAP CHIP S5600P
C111 87-016-462-080 0E C-CAP,S 1-16 F
C112 87-016-503-080 0E C-CAP,TN 4.7-6.3
C113 87-016-462-080 0E C-CAP,S 1-16 F
C114 87-A10-593-080 0E C-CAP,TN 1-16 A2 MSV
C115 87-016-462-080 0E C-CAP,S 1-16 F
C116 87-A10-036-080 1A C-CAP,TN 47U-6.3 B2
C117 87-016-462-080 0E C-CAP,S 1-16 F
C118 87-A10-264-080 0E C-CAP,S 0.1-16ZF
C119 87-010-197-080 0E CAP, CHIP 0.01 DM
C120 87-016-462-080 0E C-CAP,S 1-16 F
C121 87-015-908-080 0E CAP,E 220-6.3
C122 87-016-462-080 0E C-CAP,S 1-16 F
C123 87-A10-264-080 0E C-CAP,S 0.1-16ZF
C124 87-010-193-080 0E CHIP CAPACITOR,0.033
C125 87-016-462-080 0E C-CAP,S 1-16 F
C126 87-016-462-080 0E C-CAP,S 1-16 F
C127 87-A10-264-080 0E C-CAP,S 0.1-16ZF
C128 87-A10-036-080 1A C-CAP,TN 33-6.3
C129 87-A10-264-080 0E C-CAP,S 0.1-16ZF
C130 87-016-491-080 0E C-CAP,S 0.22-16 FZ
C201 87-016-462-080 0E C-CAP,S 1-16 F
C202 87-016-462-080 0E C-CAP,S 1-16 F
C203 87-010-178-080 0E CHIP CAP 1000P
C204 87-010-178-080 0E CHIP CAP 1000P
C205 87-016-296-080 1A CAP,E 22-6.3
C206 87-010-197-080 0E CAP, CHIP 0.01 DM
C207 87-016-462-080 0E C-CAP,S 1-16 F
C208 87-A10-019-080 0E C-CAP,TN 10-6.3 A
C209 87-010-213-080 1A CAP, CHIP 0.015-25
C210 87-016-296-080 1A C-CAP,TN 22-6.3
C211 87-015-908-080 1A CAP,E 220-6.3
C212 87-A10-264-080 0E C-CAP,S 0.1-16ZF
C213 87-016-491-080 0E C-CAP,S 0.22-16 FZ
C214 87-016-462-080 0E C-CAP,S 1-16 F
C215 87-A10-019-080 0E C-CAP,TN 10-6.3 A
C216 87-015-213-080 1B CAP, CHIP 0.015-25
C217 87-016-296-080 1A C-CAP,TN 22-6.3
C218 87-A10-264-080 0E C-CAP,S 0.1-16ZF
C219 87-016-491-080 0E C-CAP,S 0.22-16 FZ
C220 87-010-178-080 0E CHIP CAP 1000P
C221 87-010-794-080 0E CHIP CAPACITOR TN 0.1-20(A2)
C222 87-010-182-080 0E C-CAP,S 2200P-50 B
C223 87-010-182-080 0E C-CAP,S 2200P-50 B
C224 87-016-370-010 -- CAP,E 470-6.3 M RS
C225 87-016-462-080 0E C-CAP,S 1-16 F
C226 87-012-358-080 0E C-CAP,S 0.47
C227 87-012-358-080 0E C-CAP,S 0.47
C301 87-010-197-080 0E CAP, CHIP 0.01 DM
C303 87-A10-264-080 0E C-CAP,S 0.1-16ZF
C304 87-A10-593-080 0E C-CAP,TN 1-16 A2 MSV
C305 87-016-462-080 0E C-CAP,S 1-16 F
C307 87-A10-036-080 1A C-CAP,TN 47U-6.3 B2
C308 87-010-197-080 0E CAP, CHIP 0.01 DM
C309 87-010-197-080 0E CAP, CHIP 0.01 DM
C310 87-A10-034-080 1A C-CAP,TN 33-6.3
C311 87-016-491-080 0E C-CAP,S 0.22-16 FZ
C312 87-A10-264-080 0E C-CAP,S 0.1-16ZF
C313 87-012-358-080 0E C-CAP,S 0.47
C315 87-010-197-080 0E CAP, CHIP 0.01 DM
C316 87-010-316-080 0E C-CAP,S 33P-50 CH
C317 87-010-316-080 0E C-CAP,S 33P-50 CH
C319 87-010-197-080 0E CAP, CHIP 0.01 DM
C320 87-010-197-080 0E CAP, CHIP 0.01 DM
C321 87-A10-036-080 1A C-CAP,TN 47U-6.3 B2
C322 87-010-182-080 0E C-CAP,S 2200P-50 B
C501 87-010-179-080 0E CAP,CHIP S B1200P
C502 87-010-197-080 0E CAP, CHIP 0.01 DM
C503 87-010-184-080 0E CHIP CAPACITOR 3300P(K)
C504 87-010-197-080 0E CAP, CHIP 0.01 DM
C505 87-A10-036-080 1A C-CAP,TN 47U-6.3 B2
C601 87-010-197-080 0E CAP, CHIP 0.01 DM
C602 87-010-197-080 0E CAP, CHIP 0.01 DM
C603 87-010-197-080 0E CAP, CHIP 0.01 DM
J101 84-TM1-630-010 1A JACK,3.5 HSJ1493-05
J102 87-A61-032-010 1A JACK,3.5 BLK ST W/SW HSJ1494
J201 87-A60-849-010 0E JACK,DC DIA 2.75 BLK
L301 87-003-188-080 1A COIL 22UH
L302 87-003-188-080 1A COIL 22UH
L303 87-003-188-080 1A COIL 22UH
L501 87-007-189-010 1A COIL OSC
S301 87-036-273-080 1A CHIP TACT SWITCH SKQGADE010
SW101 87-A90-520-010 -- SW,SL 2-4-2SHORTING
SW102 87-031-816-010 1A SLIDE SWITCH
SW103 87-A90-520-010 -- SW,SL 2-4-2SHORTING
SW201 87-A90-520-080 -- REC SWITCH
SW301 87-031-816-010 1A SLIDE SWITCH
SW302 87-031-816-010 1A SLIDE SWITCH
TH101 87-A90-855-080 0E C-THMS,SC20-3K102K
TH102 87-A90-307-080 -- C-THMS,K39G220
VR101 87-A90-308-010 -- VR,RTRY 3KB XV81
VR102 87-A90-527-010 0E SFR,5K H VZ066L3
VR201 87-A90-314-010 -- VR,RTRY 10K H
TRANSISTOR ILLUSTRATION
2SA1586
2SC2712
2SC3265
2SC3326
2SC4081
2SC4116
2SC4213
DTA144TUA
DTC114YKA
DTC144EKA
B
E
C
2SK880
S
D
G
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 8Z-HT5-901-010 1A IB,D
2 87-B30-240-010 1H HEADPHONE,HP-M035
3 87-PD3-050-010 1B STRAP,HAND
X301 87-A70-147-080 1B C-VIB,CER 2.0MHZ PBRC-A
KEY C.B
C401 87-016-462-080 0E C-CAP,S 1-16 F
C402 87-010-197-080 0E CAP, CHIP 0.01 DM
C403 87-010-197-080 0E CAP, CHIP 0.01 DM
LED1 87-A90-276-080 0E C-LED,SML-210MT GRN
LED2 87-A90-278-080 0E C-LED,SML-210VT RED
LED3 87-017-827-070 0E C-LED,SEC 1201C RED
LED4 87-017-828-070 0E C-LED,SEL 1401C GRN
LED5 87-017-829-070 0E C-LED,SEC 1901C ORN
LED6 87-017-827-070 0E C-LED,SEC 1201C RED
S401 87-A90-665-180 0E TACT SWITCH
S402 87-A90-665-180 0E TACT SWITCH
S403 87-A90-665-180 0E TACT SWITCH
S404 87-A90-665-180 0E TACT SWITCH
