AJAX Fire Protect User Manual

The location of the detector depends on its remoteness from the hub, and
obstacles hindering the radio signal transmission: walls, floors, large
objects inside the room.
Check the Jeweller signal level at the installation location
If the signal level is low (one bar), we cannot guarantee the stable
operation of the detector. Take all possible measures to improve the quality
of the signal. At least, move the detector: even a 20 cm shift can
significantly improve the quality of signal reception.
If the detector has low or unstable signal strength even after moving, use
a ReX Radio signal range extender.
Install the detector at the ceiling in the highest point where hot air and
smoke are concentrated in case of fire.
If there are any beams at the ceiling, protruding by 30 or more centimetres
from the ceiling level, install the detector between every two beams.

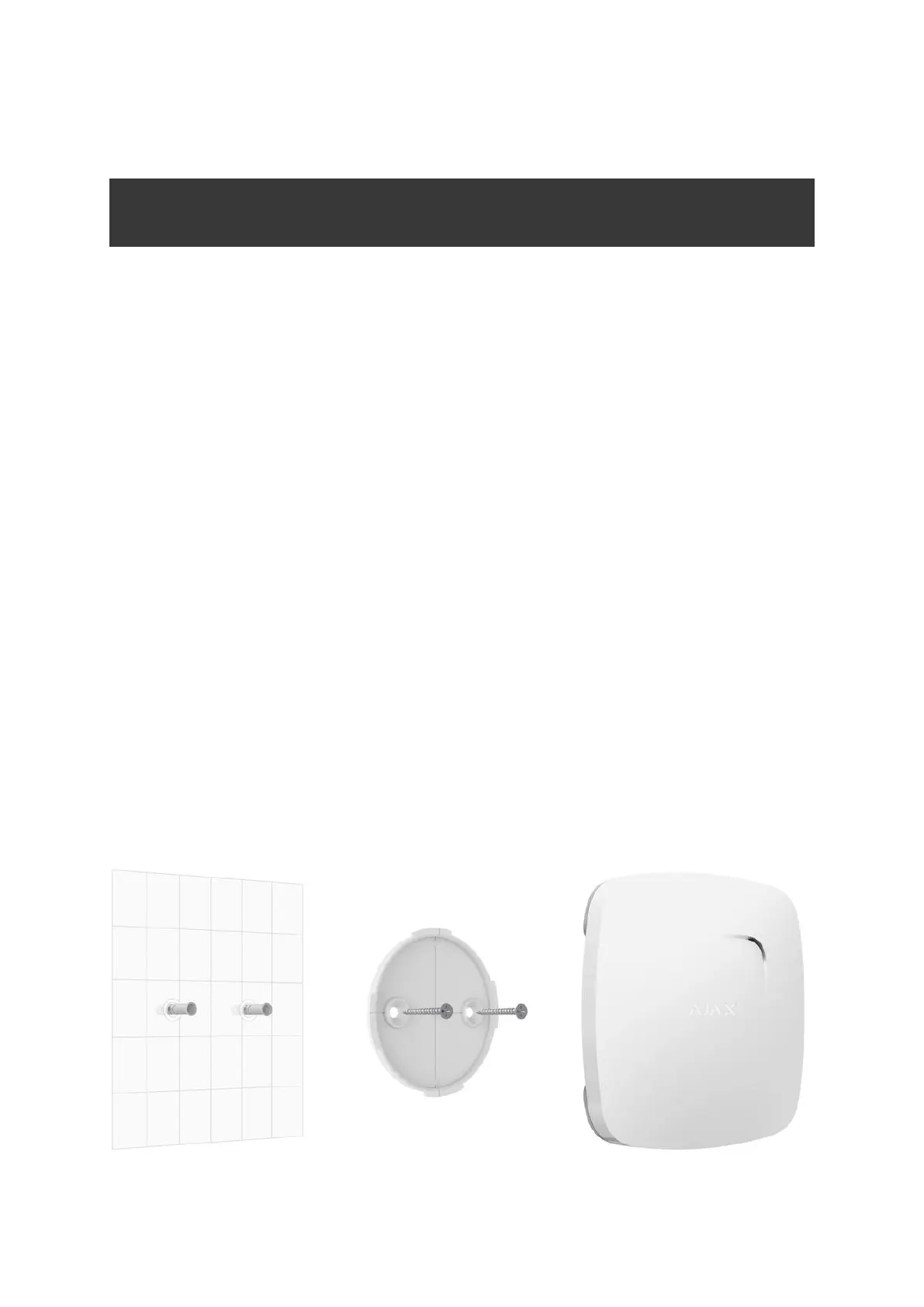

Installation procedure
Before installing the detector, make sure that you have selected the optimal
location that follows the guidelines of this manual!

AJAX Fire Protect Specifications

General

Smoke-sensitive element	Photoelectric sensor
Temperature sensitive element	Thermocouple
Tamper protection	Yes
Compatibility	Operates independently or with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge
Sound notification volume	85 dB at a distance of 3 m
Alarm threshold at the temperature	+59°С ±2°С
Operating temperature range	From 0°С to +65°С
Operating humidity	Up to 80%
Frequency band	868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
Radio signal modulation	GFSK
Radio signal range	Up to 1, 300 m (any obstacles absent)
Maximum RF output power	Up to 20 mW
Power supply	2 × CR2 (main batteries), CR2032 (backup battery), 3 V
Battery life	Up to 4 years

Weight and Dimensions

Overall dimensions	132 × 132 × 31 mm
Weight	220 g
