Akai AK22FLEDCG

10
1. Power Input: Connect the included power adaptor.
2. HDMI 1: Connect the HDMI output jack of DVD.
3. PC AUDIO: Connect the audio output jack of PC.
4. VGA: Connect the PC-RGB output jack of PC.
5. YPbPr (Component): Connect the YPbPr output jack of DVD
6. CVBS: Connect the Video output jack of DVD.
7. R/L: Connect the R/L audio output jack of DVD.
8. COAXIAL: Connect the SPDIF receiver.
9. RF: Connection the antenna
10. HDMI 2: Connect the HDMI output jack of DVD.
11. USB: Connect to portable USB storage device.
12. Earphone: Connect the earphone.
13. Built-in Speaker.

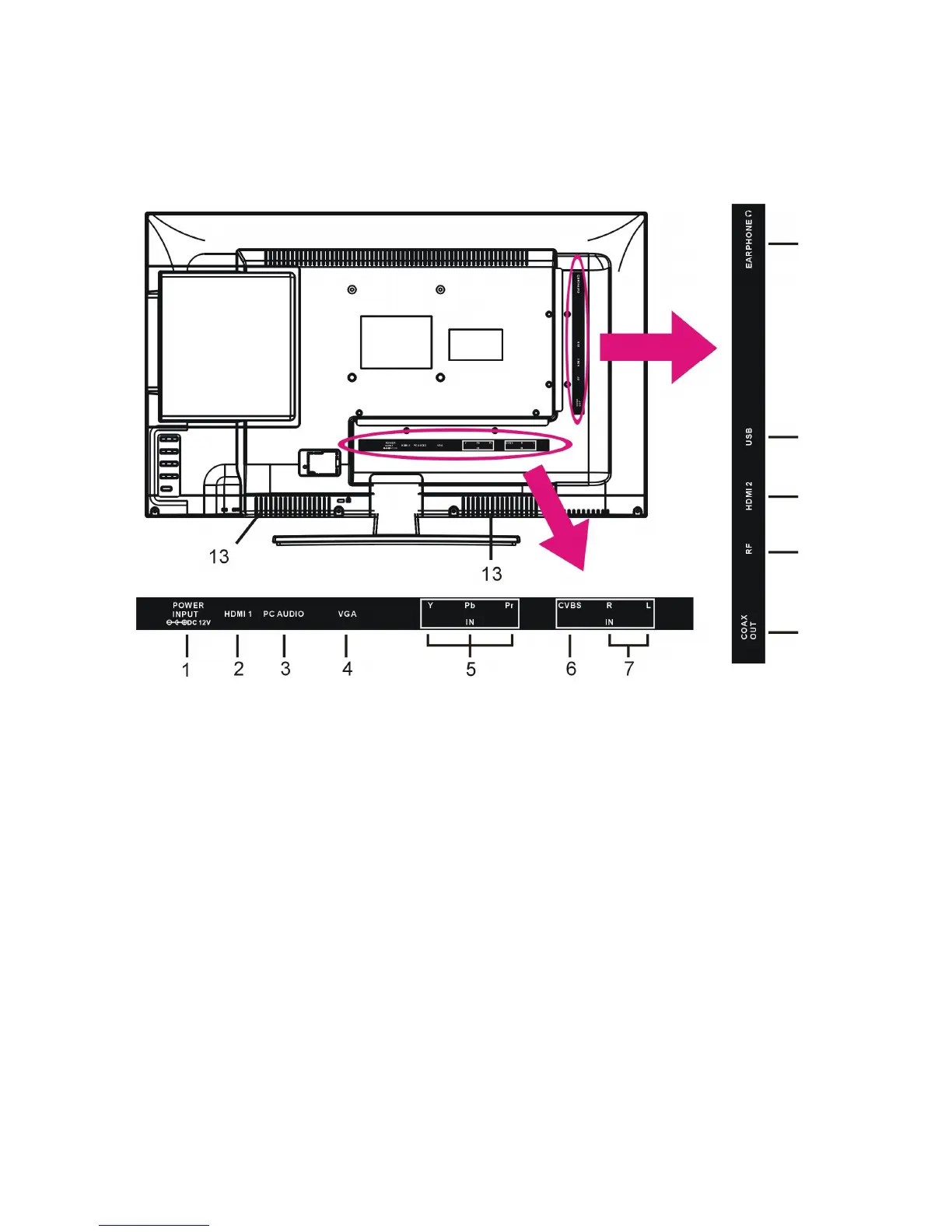

Controls and Connections (Cont.)
1. Power input: Connect the included power adaptor.
2. HDMI 1: Connect the HDMI output jack of DVD
3. PC AUDIO: Connect the Audio output jack of PC.
4. VGA: Connect the PC-RGB output jack of PC.
5. YPbPr (Componnet): Connect the YPbPr output jacks of DVD.
6. CVBS: Connect the Video output jack of DVD.
7. R/L: Connect the R/L audio output jack of DVD.
8. COAXIAL: Connect the SPDIF receiver.
9. RF: Connect the antenna.
10. HDMI 2: Connect the HDMI output jack of DVD.
11. USB: Connect the portable USB device.
12. EARPHONE: Connect the earphone.
13. Built-in Speakers
