Akai AX-M430 Service Manual

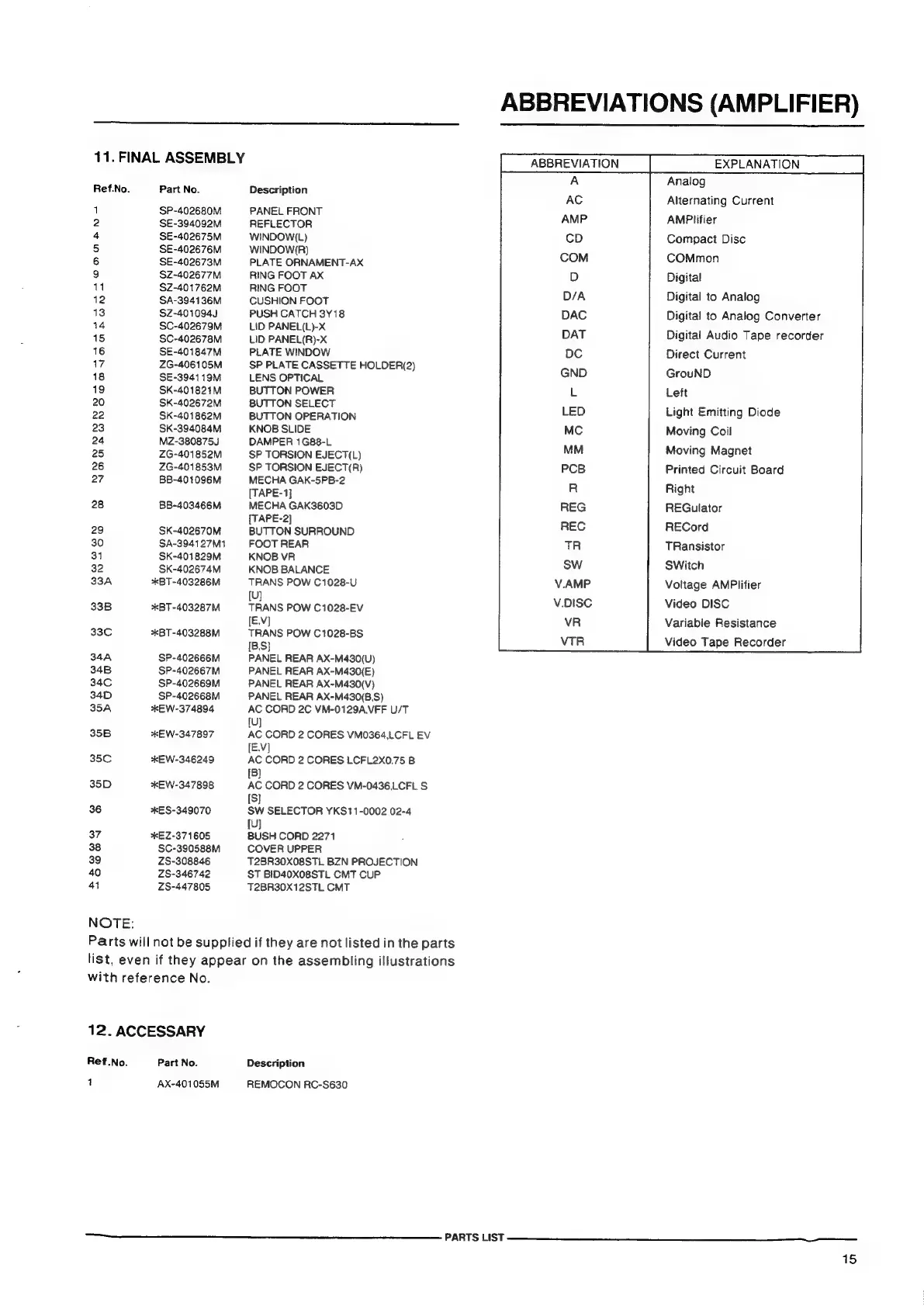

11. FINAL ASSEMBLY
Ref.No. Part No. Description
1 SP-402680M PANEL FRONT
2 SE-394092M REFLECTOR
4 SE-402675M WINDOW(L)
5 SE-402676M WINDOW(R)
6 SE-402673M PLATE ORNAMENT-AX
9 SZ-402677M RING FOOT AX
1 $Z-401762M RING FOOT
12 SA-394136M CUSHION FOOT
13 SZ-401094J PUSH CATCH 3Y18
14 SC-402679M LID PANEL(L)-X
15 SC-402678M LID PANEL(R)-X
16 SE-401847M PLATE WINDOW
17 ZG-406105M SP PLATE CASSETTE HOLDER(2)
18 SE-394119M LENS OPTICAL
19 SK-401821M BUTTON POWER
20 SK-402672M BUTTON SELECT
22 SK-401862M BUTTON OPERATION
23 SK-394084M KNOB SLIDE
24 MZ-380875J DAMPER 1G88-L
25 ZG-401852M SP TORSION EJECT(L)
26 ZG-401853M SP TORSION EJECT(R)
27 BB-401096M MECHA GAK-5PB-2
[TAPE-1]
28 BB-403466M MECHA GAK3603D
[TAPE-2]
29 SK-402670M BUTTON SURROUND
30 SA-394127M1 FOOT REAR
31 SK-401829M KNOB VR
32 SK-402674M KNOB BALANCE
33A *BT-403286M TRANS POW C1028-U
(U}
33B *BT-403287M TRANS POW C1028-EV
[E.V]
33C *BT-403288M TRANS POW C1028-BS
{B.S}
344 SP-402666M PANEL REAR AX-M430(U)
34B SP-402667M PANEL REAR AX-M430(E)
34C SP-402669M PANEL REAR AX-M430(V)
34D SP-402668M PANEL REAR AX-M430(8,S)
354A *EW-374894 AC CORD 2C VM-0129A.VFF U/T
{U]
35B *EW-347897 AC CORD 2 CORES VM0364,LCFL EV
[E.Vj
35C *EW-346249 AC CORD 2 CORES LCFL2X0.75 B
[8]
35D *EW-347898 AC CORD 2 CORES VM-0436,LCFL S
{S}
36 *ES-349070 SW SELECTOR YKS11-0002 02-4
{U]
37 *EZ-371605 BUSH CORD 2271
38 SC-390588M COVER UPPER
39 ZS-308846 T2BR30X08STL BZN PROJECTION
40 ZS-346742 ST BID40X08STL CMT CUP
44 2S-447805 T2BR30X12STL CMT
NOTE:
Parts will not be supplied if they are not listed in the parts
list, even if they appear on the assembling illustrations
with reference No.
12. ACCESSARY
Ref.No. Part No. Description
1 AX-401055M REMOCON RC-S630
ABBREVIATIONS (AMPLIFIER)
ABBREVIATION EXPLANATION
A Analog
Alternating Current
AMPlifier
Compact Disc
COM COMmon
D Digital
D/A Digital to Analog
DAC Digital to Analog Converter
DAT Digital Audio Tape recorder
DC Direct Current
GND GrouND
L Left
LED Light Emitting Diode
MC Moving Coil
Moving Magnet
Printed Circuit Board
Right
REGulator
RECord
TRansistor
SWitch
Voltage AMPlifier
Video DISC
Variable Resistance
Video Tape Recorder
