Akai AX-M430 Service Manual

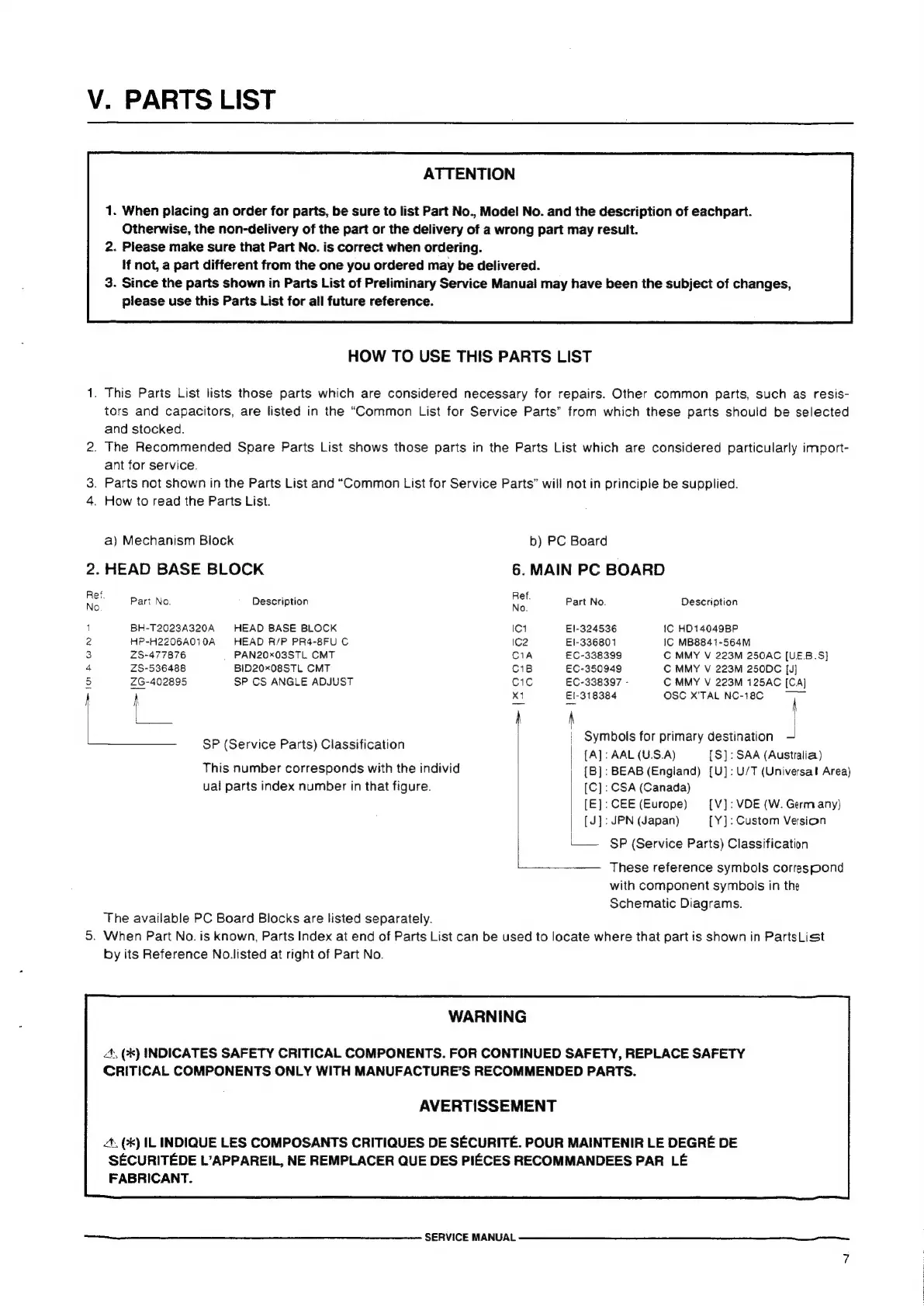

V. PARTS LIST
Ref.
bwWn =
101
—= SP (Service Parts) Classification
ATTENTION
1. When placing an order for parts, be sure to list Part No., Model No. and the description of eachpart.
Otherwise, the non-delivery of the part or the delivery of a wrong part may result.
2. Please make sure that Part No. is correct when ordering.
If not, a part different from the one you ordered may be delivered.
3. Since the parts shown in Parts List of Preliminary Service Manual may have been the subject of changes,
please use this Parts List for all future reference.
HOW TO USE THIS PARTS LIST
. This Parts List lists those parts which are considered necessary for repairs. Other common parts, such as resis-
tors and capacitors, are listed in the “Common List for Service Parts” from which these parts should be selected
and stocked.
. The Recommended Spare Parts List shows those parts in the Parts List which are considered particularly import-
ant for service.
. Parts not shown in the Parts List and “Common List for Service Parts” will not in principle be supplied.
How to read the Parts List.
a) Mechanism Block b) PC Board
. HEAD BASE BLOCK 6. MAIN PC BOARD
7 oer Ref. :
Pari No. Description No Part No. Description
BH-T2023A320A HEAD BASE BLOCK IC1 El-324536 IC HD14049BP
HP-H2206A010A HEAD R/P PR4-8FU C IC2 E!-336801 IC MB8841-564M
ZS-477876 PAN20x03STL CMT C1A EC-338399 C MMY V 223M 250AC [UE.B.S]
ZS-536488 BID20x08STL CMT C1B EC-350949 C MMY V 223M 250DC [J]
ZG-402895 SP CS ANGLE ADJUST c1c EC-338397 - C MMY V 223M 125AC [CA]
f xt El-318384 OSC X'TAL NC-18C Fine
LS } A |
i Symbols for primary destination —
| [A]: AAL (U.S.A) [S]: SAA (Australia)
This number corresponds with the individ | {B]: BEAB (England) [U]:U/T (Universal Area)
ual parts index number in that figure. [C]: CSA (Canada)
[E]: CEE (Europe) [V]: VDE (W. Germ any)
[J]: JPN (Japan) [Y]: Custom Version
|
__—_ SP (Service Parts) Classification
These reference symbols correspond
with component symbols in the
Schematic Diagrams.
The available PC Board Blocks are listed separately.
. When Part No. is known, Parts Index at end of Parts List can be used to locate where that part is shown in PartsList
by its Reference No.listed at right of Part No.
WARNING
4, (&) INDICATES SAFETY CRITICAL COMPONENTS. FOR CONTINUED SAFETY, REPLACE SAFETY
CRITICAL COMPONENTS ONLY WITH MANUFACTURE’S RECOMMENDED PARTS.
AVERTISSEMENT
s (&) IL INDIQUE LES COMPOSANTS CRITIQUES DE SECURITE. POUR MAINTENIR LE DEGRE DE
SECURITEDE L’APPAREIL, NE REMPLACER QUE DES PIECES RECOMMANDEES PAR LE
FABRICANT.
SERVICE MANUAL
